QUICK GUIDE

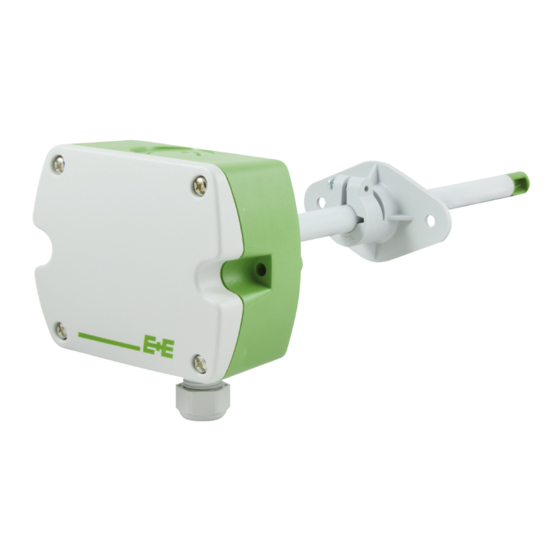

EE650 - Air Velocity Transmitters with RS485 Interface
(Full User's Guide at www.epluse.com/EE650)
Hardware
The bus termination shall be realized with 120 Ohm resistor, switch on the board.
Very important:
For proper function the power supply must be strong enough to ensure supply voltage within the specified range (see technical data)
at any time and at all devices in the bus. This is particularly relevant when using long and thin cables which can cause high voltage
drop; please note that a single EE650 requires peak current of 150 mA.

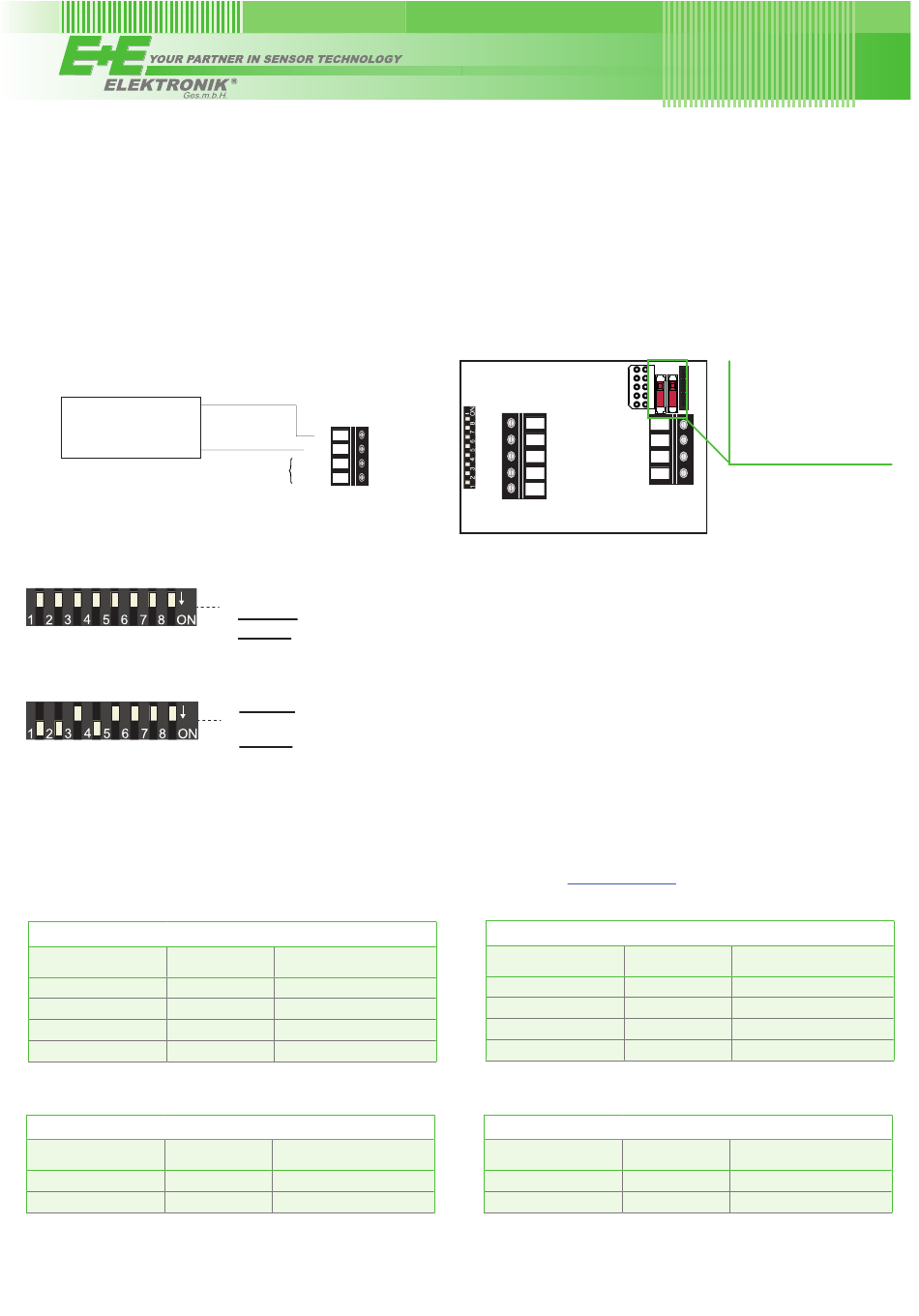

Wiring
Digital interface
power supply
24 V AC/DC ±20 %
Address Setting
Address Switch
0 0 0 0 0 0 0 0
Address Switch
1 1 0 1 0 0 0 0
BACnet Setup
Please see PICS (Product Implementation Conformance Statement) - available on

Modbus Setup

FLOAT (read register):
Function code / Register address
Register number [Dec] [HEX]
1)
31003 0x03EA
31005 0x03EC
31041
31043
INFO (read register):
Function code / Register address
Register number [Dec] [HEX]
1)
30001
30009
1) Register number starts from 1
2) Register address starts from 0
3) For Modbus protocol setting please see Application Note Modbus (www.epluse.com)
+
~
V+ 1
-
2
GND
~
3
AV
V / mA
+
~
1
V+
-
2
GND
~
A (=D+) 3
RS485
B (=D-) 4
Address setting via EE-PCS Product Configuration Software:
All Dip-Switches at position 0 → address has to be set via Product Configuration Software
0
Modbus (Slave device): factory setting EE650: 65 (permitted values: 1...247).
1
BACnet (Master device): factory setting EE650: 65 (permitted values: 0...127).
Example: Slave address is set via configuration software.
Address setting via Dip-Switch:
Modbus (Slave device): Setting the Dip-Switch to any other address than 0, overrules the slave
0
address set via configuration software (permitted values: 1...247).
1
BACnet (Master device): Setting the Dip-Switch to any other address than 0, overrules the slave
address set via configuration software.
BACnet Note: permitted values are 0...127. The 8th bit of the Dip-Switch is ignored
(ID 127 = 0111 111).
To set address 0 via Dip-Switch, the 8th bit shall be set to 1 (ID 0 = 1000 0000).
Example: Slave address set to 11 (= 0000 1011 binary).
Parameter
2)
name
Temperature
Temperature
0x0410 Airflow
0x0412 Airflow
Parameter
2)
name
0x00 Serial number (as ASCII)
0x08 Firmware version
SHORT (read register)
Function code /
Register number
34002
[°C]
34003
[°F]
34021
[m/s]
34022
[ft/min]
* Values are stored with the scale 1:100 (e.g.: 2550 is equivalent to 25.5 °C)
** Values are stored with the scale 1:50 (e.g.: 2550 is equivalent to 51 °F)
*** Values are stored with the scale 1:1
INTEGER (write register):
Function code /
Register number
60001
60002
* If the ID is set via DIP-Switch the response will be NAK.
S1: Response time t
S1 S2
ON
S2: Termination resistor
www.epluse.com
:
3)
Register address Parameter
2)
[Dec] [HEX] name
1)
0x0FA1 Temperature*
0x0FA2 Temperature**
0x0FB4 Airflow*
0x0FB5 Airflow***
Register address Parameter
2)
[Dec] [HEX] name
1)
0x00 Slave-ID* (modbus address)
0x01 Modbus protocol settings
90
ON: slow
OFF: fast
120 Ohm
ON/OFF
[°C]
[°F]
[m/s]
[ft/min]
3)
