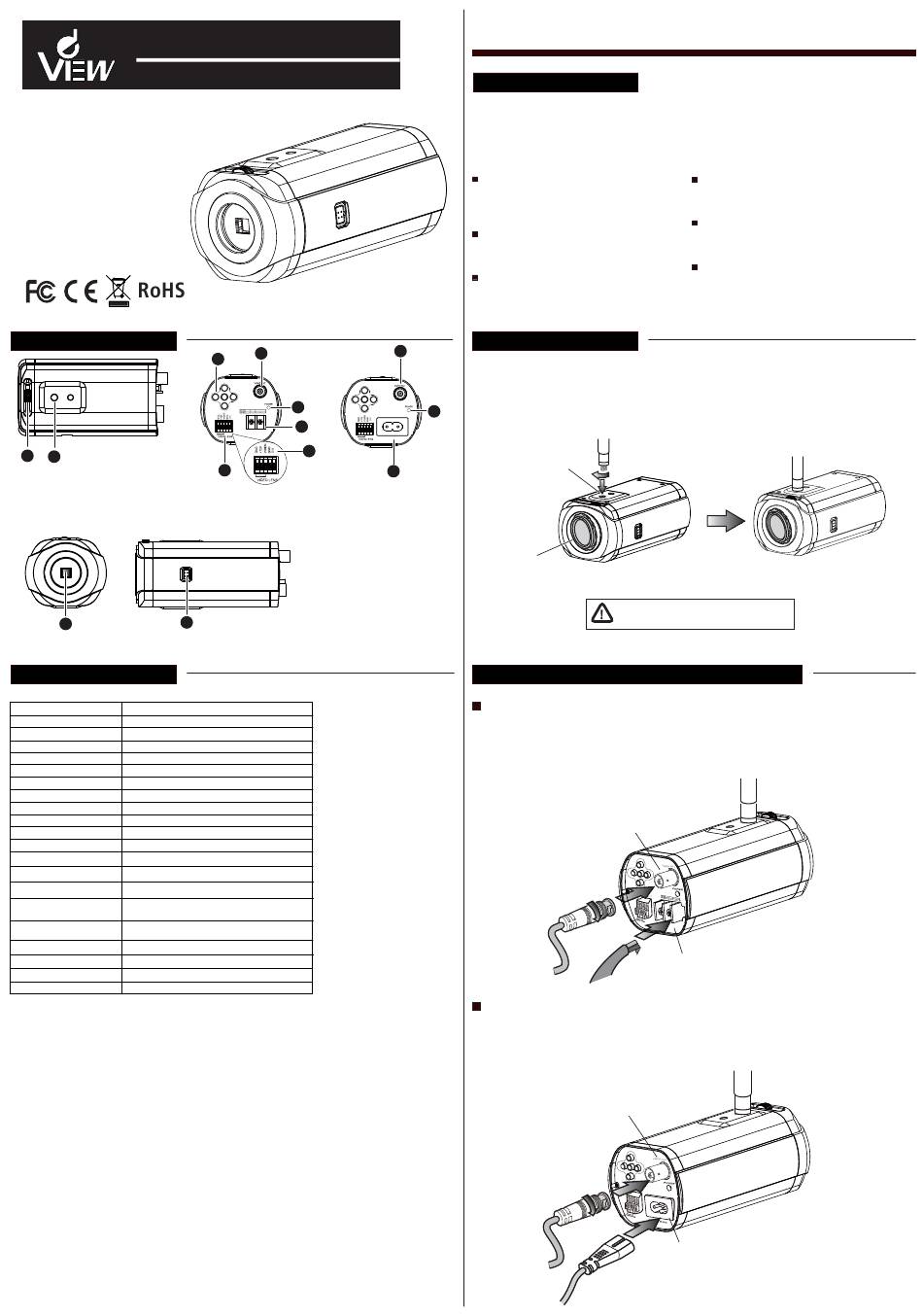

DeView CR Series Instruction Manual

High Resolution Box Camera

Instruction Manual

Parts Descriptions
1
2
Top View
11
10
Front View
Specifications
Pixim Seawolf 1/3" Sensor
Image Picture Element
Effective Picture Element
Resolution
50IRE: 0.6 Lux@F1.2
Minimum Illumination
S/N Ratio
Wide Dynamic Range
1 Zone - Fully Adjustable
Wide Dynamic Range Area
WDR Control (Auto)
Electronic Shutter
Auto , D/N switch , Off
Day/Night
Normal, Extended, Manual
White Balance
2800k~9100k(Normal) 2000k~11000k(Ex)
Auto White Balance Range
Internal / Line Lock(AC Only)
Sync System
Digital Slow Shutter
Digital Noise Reduction
1.0 Vpp BNC 75Ω unbalanced
Video Output
AC Mains: 100~240VAC
Power source
Low Voltage: 12VDC / 24VAC
Main Power: 3W
Power Consumption
Dual Power: 2.88W
Operating Temperature
Storage Temperature
65mm (W) x 55mm (H) x 130mm (L)
Dimensions
Weight 251.6 g (without lens)
CR Series
7
3
8
6
5
4
Rear View
1. Back Focus Adjustment
2. Bracket Mount
3. OSD Control
4. Video Lens Drive Terminal Block
5. D/N Switch
6. Power Input Terminal Block
7. BNC Composite Video Output
8. Power LED Indicator
9. AC Power Input Socket
(AC Mains)
10. Sensor
11. DC Lens Connector
Side View
758(H) x 540(V)
690 HTVL-E
>50dB
120 dB / 17bit
up to 32X
3D Adaptive
+ -
20%
+ -
20%
-10°C ~ +60°C
-30°C ~ +80°C
Connection and Adjustment
Precautions
This product must be installed and maintained in accordance with good
installation practices by qualified personnel only.
To prevent damage to your camera or injury to yourself or to others, read and
comply with the safety precautions as follows:
Never attempt to disassemble or modify the
camera. Any modification could lead to
damages that are not covered by the
guarantee.
Make sure the power source is switch off and
disconnected before installation. Refer
servicing to qualified personnel only.
To prevent fire or electrical shock, use only
regulated power supply and the wiring should
be used for the appropriate input terminal.
Camera Installation
7
The camera can be mounted by using either the bracket
mount on the top or bottom (see part descripton 2).
The bracket mounts accept standard photographic mounting
bolts (1/4" BSW or 20 UNC).
8
100~240VAC~ 50/60Hz
Bracket Mount
9
Protective
Cover
Connecting to the Power Source and Video Output
AC/DC Low Voltage Power Supply:
The camera operates in either 24 VAC or 12 VDC.
Connections are indicated in the rear panel of the camera.
The power supply must be stable power source and should only be
installed by qualified personnel.
Connect the 75 Ohm coaxial cable to video output (see part description 8).
AC Mains Power Supply:
The camera operates directly from the mains supply and is supplied with a
detachable power supply cord. The operating voltage is 100~240 VAC.
Connect the 75 Ohm coaxial cable to video output
(see part description 8).
V531-CR016-200
Ver.03/2011
Do not expose or operate the camera in wet areas.
Moisture may damage the camera and also increase
the danger of electrical shock.
Do not attempt to aim the camera at the sun or other
extremely bright objects. This may cause damage to
the CCD and the void of warranty.
Do not touch the lens or the CCD by hands while
installing or adjusting the camera. This may cause
damage to the camera.
Ensure the bracket, screws (inc. wall plugs, if
used) and mounting surface can support the
load of the camera and bracket.
Video Output
Power Input
Terminal
Video Output
Power Socket
