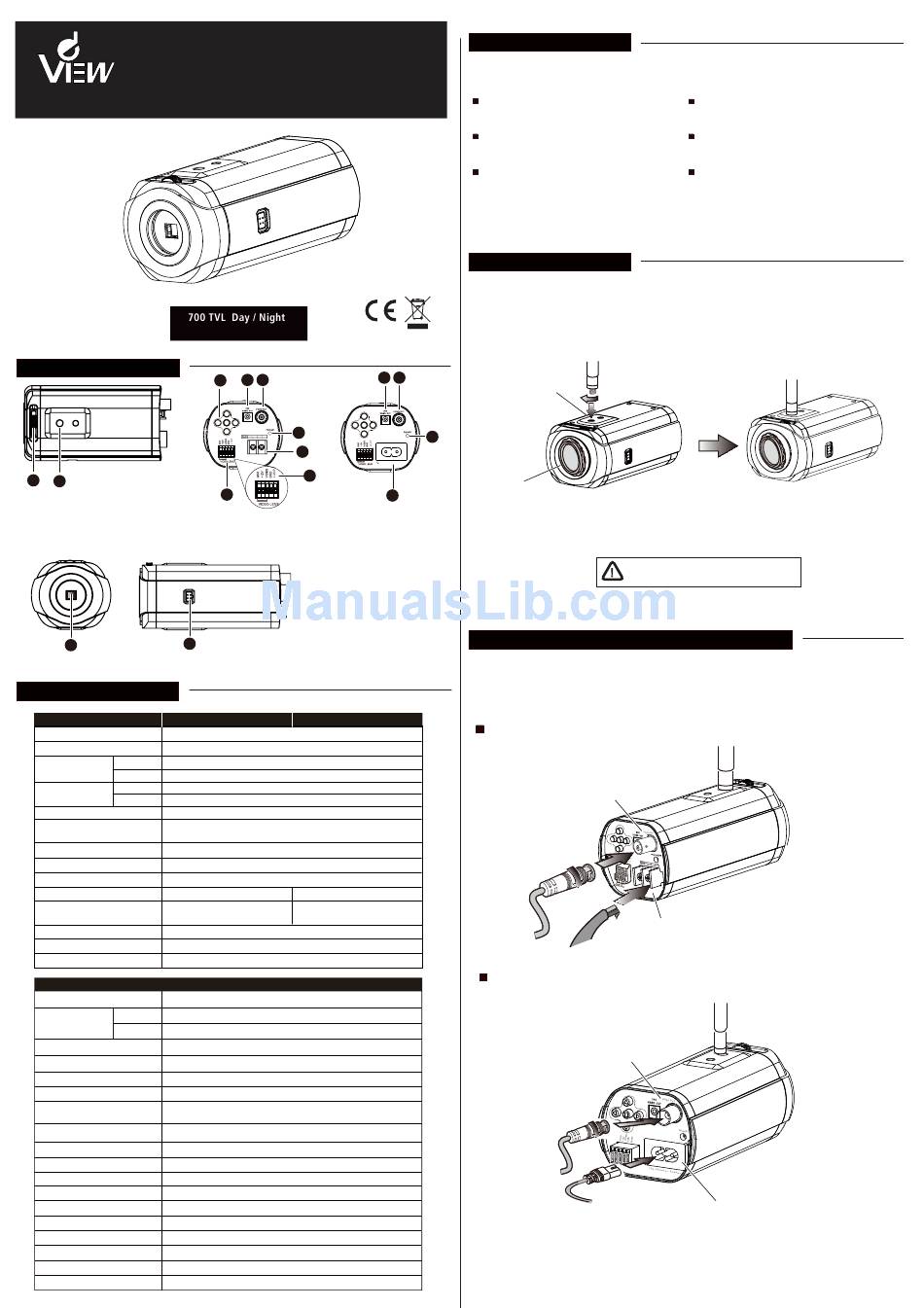

DeView CR Series Instruction Manual

CCD Box Camera
Instruction Manual
www.devieweurope.com
Parts Descriptions
1
2
Top View
11
10
Front View
Specifications
General Specifications
AC/DC Dual Power Model
TV System
Image Sensor
NTSC
Effective Picture
Element
PAL
Scanning NTSC
Frequency
PAL
Resolution
Minimum Illumination
S/N Ratio
Video Output
2nd Video Output
Power Source 12 VDC ±10% / 24 VAC ±20%
Power Consumption
Operating Temperature
Storage Temperature
Dimensions
Functional Specifications
Shutter Control
NTSC
Shutter Speed
PAL
Adaptive Tone Reproduction (ATR)
High-Light Compensation (HLC)
Backlight Compensation (BLC)
AGC Gain Control
Day/Night
White Balance Control
Auto White Balance Range
Mirror
Defog
Sync System
Motion Detection
Privacy Zone
Digital Noise Reduction
Digital Zoom
DIS
Gamma Compensation
Color Camera
3 12 7
8
6
5
4
Rear View
1. Back Focus Adjustment
2. Bracket Mount
3. OSD Control
4. Video Lens Drive Terminal Block
5. Day/Night Switch
6. Power Input Terminal Block
(DC/AC Low Voltage)
7. BNC Composite Video Output
8. Power LED Indicator
9. AC Power Input Socket
(AC Mains)
10. CCD Sensor
11. DC Lens Connector
12. Second Video Output
Side View
AC Mains Power Model
NTSC / PAL
Sony 1/3" Super HAD-II
976(H) x 494(V)
976(H) x 582(V)
60Hz
50Hz
700 TVL
0.3 Lux (F1.2, 50 IRE, AGC ON)
50 dB (100 IRE, F1.2)
1.0Vpp Composite Output
Yes (supports installation check)
220 VAC ±10% (50/60 Hz)
Normal:2.2W Normal:2.2W
-10°C ~ +50°C
-20°C ~ +60°C
63mm (W) x 57mm (H) x 120.2mm(L)
AUTO/MANUAL/FIX
1/60 ~ 1/100000
1/50 ~ 1/100000
OFF / LOW / MID / HIGH
ON/OFF
Full Range
44.8 dB
SDN(AUTO ,COLOR ,NIGHT)
ATW / Manual / Push / Push Lock / USER1,2
Indoor：1800K~10500K / Outdoor：6500K~10500K
OFF/V-FLIP/H-FLIP/HV-FLIP
ON/OFF
INT /LL
4 Areas
Up to 15 Masks
3D DNR
255X Max
On/Off
0.45
Precautions
This product must be installed and maintained in accordance with good installation practices by qualified personnel only.
To prevent damage to your camera or injury to yourself or to others, read and comply with the safety precautions as follows:
Never attempt to disassemble or modify the camera.
Any modification could lead to damages that are not
covered by the guarantee.
Make sure the power source is switched off and
disconnected before installation. Refer servicing to
qualified personnel only.
To prevent fire or electrical shock, use only
regulated power supply and the wiring should
be used for the appropriate input terminal.
Camera Installation
The camera can be mounted by using either the bracket mount on the top or bottom (see part description 2).
The bracket mounts accept standard photographic mounting bolts (1/4" BSW or 20 UNC).
V531-CR035-S00
VER. 11/2015
12 7
Bracket Mount
8
100~240VAC~ 50/60Hz
Protective
Cover
9
Connecting to the Power Source and Video Output
The camera operates in either dual power (24 VAC / 12 VDC) or main power (220V).
Connections are indicated in the rear panel of the camera.
The power supply must be stable power source and should only be installed by qualified personnel.
Connect the 75 Ohm coaxial cable to video output (see part description 8).
AC/DC Low Voltage (24VAC / 12VDC)
AC Voltage (220V)
Do not expose or operate the camera in wet areas.
Moisture may damage the camera and also increase
the danger of electrical shock.
Do not attempt to aim the camera at the sun or other
extremely bright objects. This may cause damage to
the CCD and the void of warranty.
Do not touch the lens or the CCD by hands while
installing or adjusting the camera.This may cause
damage to the camera.
Ensure the bracket, screws (inc. wall plugs, if
used) and mounting surface can support the
load of the camera and bracket.
Video Output
Power Input
Terminal
Video Output
Power Input
Terminal
.
