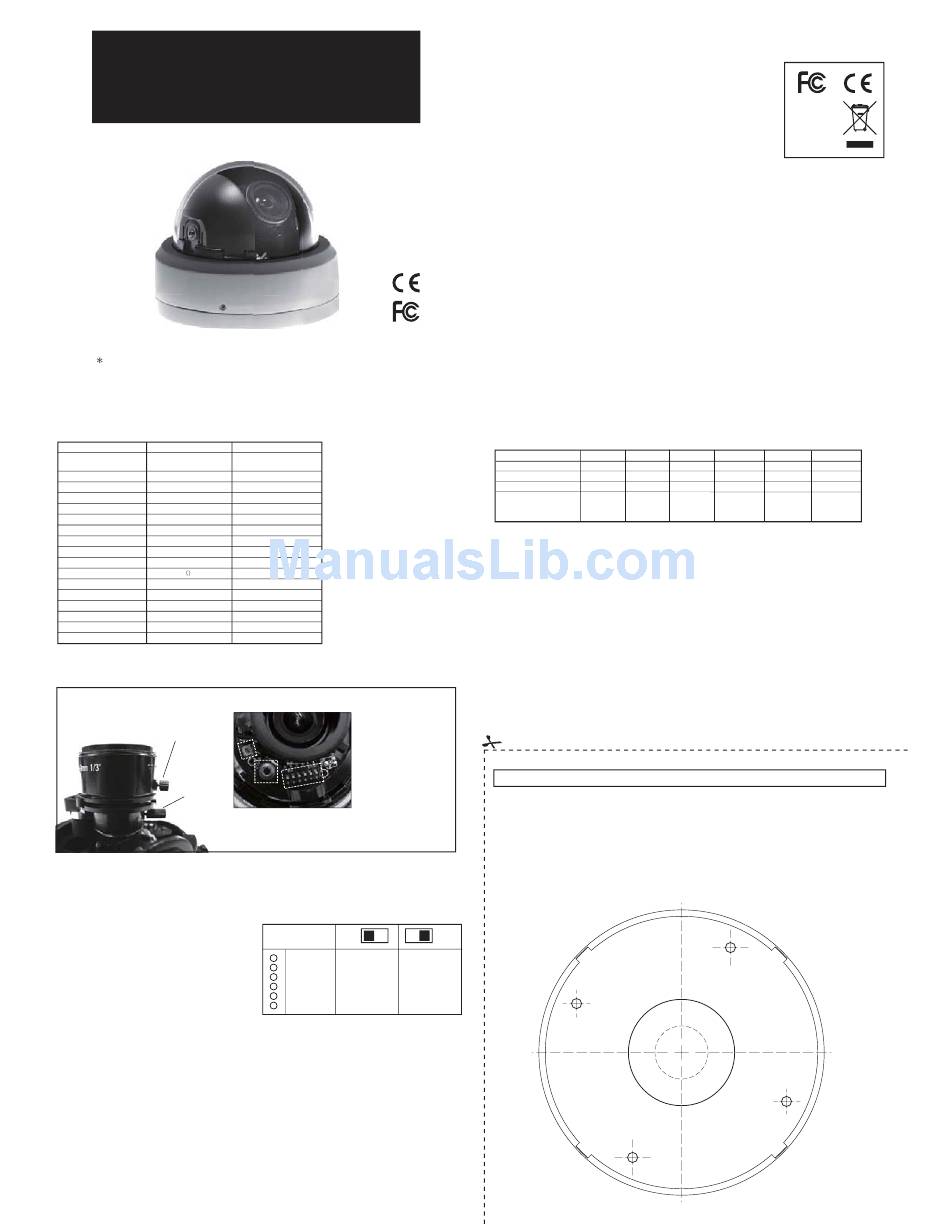

DeView Tamper Proof Instruction Manual

Tamper Proof Internal Dome Camera
Instruction Manual
US Patent Pending
General Specification
Type / Format NTSC
2:1 Interlace,
Scanning Element
H15.750KHz / V :50Hz
Image Picture Element 1/3" Interline CCD
Effective Picture Element 752(H) x 582(V)
Resolution (TV lines) 540
Minimum Illumination 0.65 Lux @ F1.2
S/N Ratio 50dB
Back Light Compensation Central Area for DC IRIS Lens
Exposure Control DC Auto IRIS Drive
Sync System INT
Gamma Compensation 0.45
Video Output 1.0Vpp, 75 Unbalanced
White Balance Automatic White Balance
Auto White Balance Range 2700K – 11000K
Power Range* DC 12V -10% ± 15%
Power Consumption
4.2W (Max)
Operating Temperature -10°C ~ +50°C
Storage Temperature -20°C ~ +60°C

Camera Adjustments

A1 : Focus Adjuster
A2 : Field of View Adjuster
A1
A2
*AI Level Adjustment is factory set.
Should not normally require adjustment
*There is a Service Jack supplied for camera adjustment.

DIP Switches

The bank of DIP switches allows the following settings to be made:
Flickerless Mode (FL/ON)
:
The camera reduces flicker in the image under
fluorescent lighting.
Back Light Compensation (BLC)
When set ON, this option improves the
camera's response to strong, unwanted lighting
effects behind the required subject.
Low Light Sensitivity
(AGC-EX/AGC-NORMAL)
When set to EX, sensitivity in low light will
automatically increased.
Select "NORMAL" will remove noise from the image,
but it will also limit the camera's sensitivity.
Vertical Phase Adjustment (V-Phase)
Use this adjustment when using an AC supply to align the camera phase with that
of the supply.
DC-IRIS Adjustment (ALC)
This is factory preset. It should not normally require adjustment.
RoHS
PAL
2:1 Interlace,
H15.625KHz / V :50Hz
1/3" Interline CCD
752(H) x 582(V)
540
0.65 Lux @ F1.2
50dB
Central Area for Auto IRIS Lens
DC Auto IRIS Drive
INT
0.45
1.0Vpp, 75 ohm Unbalanced
Automatic White Balance
2700K – 11000K
DC 12V -10% ± 15%
4.2W (Max)
-10°C ~ +50°C
-20°C ~ +60°C
A3 : *AI Level Adjustment
A4 : Service Jack
A5 : Function Control
A3
Dip Switches
A4
A5
F U N C I T O N OFF
NC ------ ------
1
NC ------ ------
2
NC ------ ------
3
FL OFF ON
4
BLC OFF ON
5
AGC EX NORMAL
6

Regulatory Compliance

Emissions FCC part 15 Class B
CE: EN55011
ICES-003
EN55022
CISPR 11
CISPR22
ANSI C63.4
Immunity
CE: EN50130-4
FCC COMPLIANCE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules.
These limits are designed to provide reasonable protection against armful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur
in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced Radio/TV technician for help.
CISPR 22 WARNING:
This is a Class B product. In a domestic environment this product may cause radio interference in which case the user may be required
to take adequate measures.
POWER SUPPLY REQUIREMENTS:
For use with listed Audio/Video product and only connected to 15W or less power supply.
*Power supply should be a NEC Class 2 / LPS Supply.
EQUIPMENT MODIFICATION CAUTION:
Equipment changes or modifications not expressly approved by seller.
The party responsible for FCC compliance could void the user's authority to operate the equipment and could create a hazardous
condition.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Lens Specification
Focal Length 2.5~6.0mm
F-No. F1.2
Iris Range F1.2~F360
Minimum Object Distance 0.5m
Diagonal 145.5º~59.1º
Field Of View Horizontal 111.6º~47.3º
Vertical 82.2º~35.5º
Contents:
• ¾" Rubber Grommet
• Screw Pack
• Torx Driver
• Quick Installation Adaptor (optional)
Template
Surface mount (In a wall or ceiling)
Using Quick Install Adaptor:
Create an aperture in the mounting surface to a diameter of
1.5" (38mm) as indicated by "T2".
The aperture is also avaliable for cable access (3/4", 19mm).
Using screws:
Create four holes at template positions 'T1', use the screws
and plugs provided in the screw kit where the mounting
surface is appropriate.
O N
Side Knock-out
T1
Side Knock-out
RoHS
2.9-10mm 4-9mm 3.0~9.0mm 3.3~12mm
F1.2 F1.6 F1.2 F1.4
F1.2~F360 F1.6~F2.4 F1.2~F360 F1.4~F360
0.15m 50cm 50cm 50cm
125.0º~36.0º 92.8º~39.4º 116.2º~39.7º 125.7º~29.9º
94.6º~28.8º 71.0º~31.6º 90.0º~31.8º 89.8º~23.9º
68.4º~21.6º 51.6º~23.6º 66.2º~23.9º 63.6º~17.9º
Cable access
When the cables are threaded through the mounting surface,
create an apture indicated "T2". It can be simply threaded for
use with the quick install adapter .
When mounting the dome on a surfce with the four T1 screws,
use one of the side knock-outs as indicated for cable entry
(see Installation Guide overleaf ).
Side Knock-out
T1
T2
Cable Access
T1
T1
Side Knock-out
9.0~22.0mm
F1.8
F1.8~F360
0.2m
39.0º~17.6º
30.7º~14.1º
22.7º~10.6º
V531-DF003-001
Ver. 02/2009
