DeView VDM Series Installation Manual

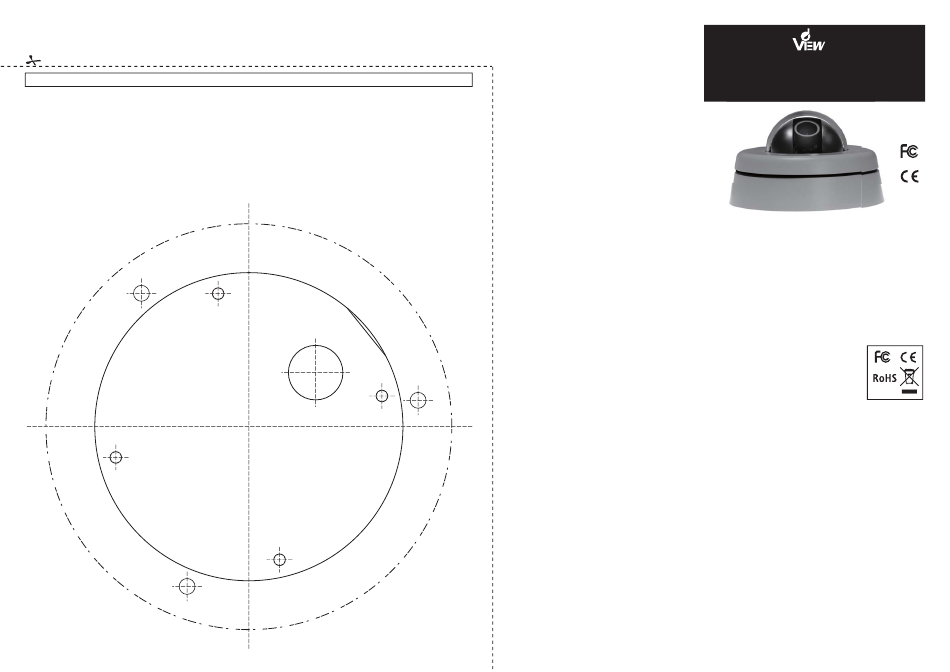

Template
Flush Mount
Create an aperture in the mounting surface to a diameter of 5.5" (140mm) as
indicated by 'T2'.
Using locking arms (see Installation Method B overleaf) :
Place the enclosure (with the locking arms retracted) into the opening.
Use a cross-head screwdriver to rotate the locking screws until the locking
arms, firstly splay out, and then tighten against the inner face of the mounting
surface.
Tighten the screws sufficiently to compress the o-ring moisture seals located
underneath the screw heads, however:
DO NOT OVERTIGHTEN.
T3
T1
T3
Outer Ring
T1
Surface Mount
Create four holes of diameter ¼" (7mm) at template positions 'T3'.
Use 4 x wall plugs and 4 x (no.12 x 1½") screws.
When mounting externally, use a rubber o-ring at each mounting hole
in the base to ensure moisture resistant seals.
Cable Entry (in base cable entry case)
When use the base cable entry, create a hole of diameter 3/4"NPT (19mm)
at template positions 'T4'.Cable is threaded out the base.
Using screws to install out ring:
Create three holes at template positions 'T1' of diameter 1/5" (5.2mm) and
insert a wall plug into each.Use three screws.
T4
T3
T1
T2
T3
Hardware Kit Contents
• 3/4" Rubber Grommets x 2
• Screw Packs x 2
• M4 Torx Screw Driver x 1
• M2 Allen Key x 1
• Wire-ended Power Adaptor Lead x 1
VDM Series
Metal Vandal Dome
Enclosure Installation Guide
Precautions
• Handle the camera with care. Do not abuse the camera. Avoid striking or
shaking it. Improper handling or storage could damage the camera.
• Irrespective of whether the camera is in use or not, never faces it towards
the sun. Use caution when operating the camera in the vicinity of spotlights
or other bright lights and light reflecting objects.
Do not operate the camera beyond its temperature, humidity or power
source ratings. Please refer to the environmental information provided
overleaf.
Regulatory Compliance
Emissions
FCC part 15 Class B
CE: EN55011
ICES-003
EN55022
CISPR 11
CISPR22
ANSI C63.4
Immunity
CE: EN50130-4
FCC COMPLIANCE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
CISPR 22 WARNING:
This is a Class B product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
POWER SUPPLY REQUIREMENTS:
For use with listed Audio / Video product and only connected to 15W or less power
supply.
*Power supply should be a NEC Class 2/LPS supply.
EQUIPMENT MODIFICATION CAUTION:
Equipment changes or modifications not expressly approved, the party responsible for
FCC compliance, could void the user's authority to operate the equipment and could
create a hazardous condition.
This class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Please visit our website for more information
www. deview.com
RoHS
