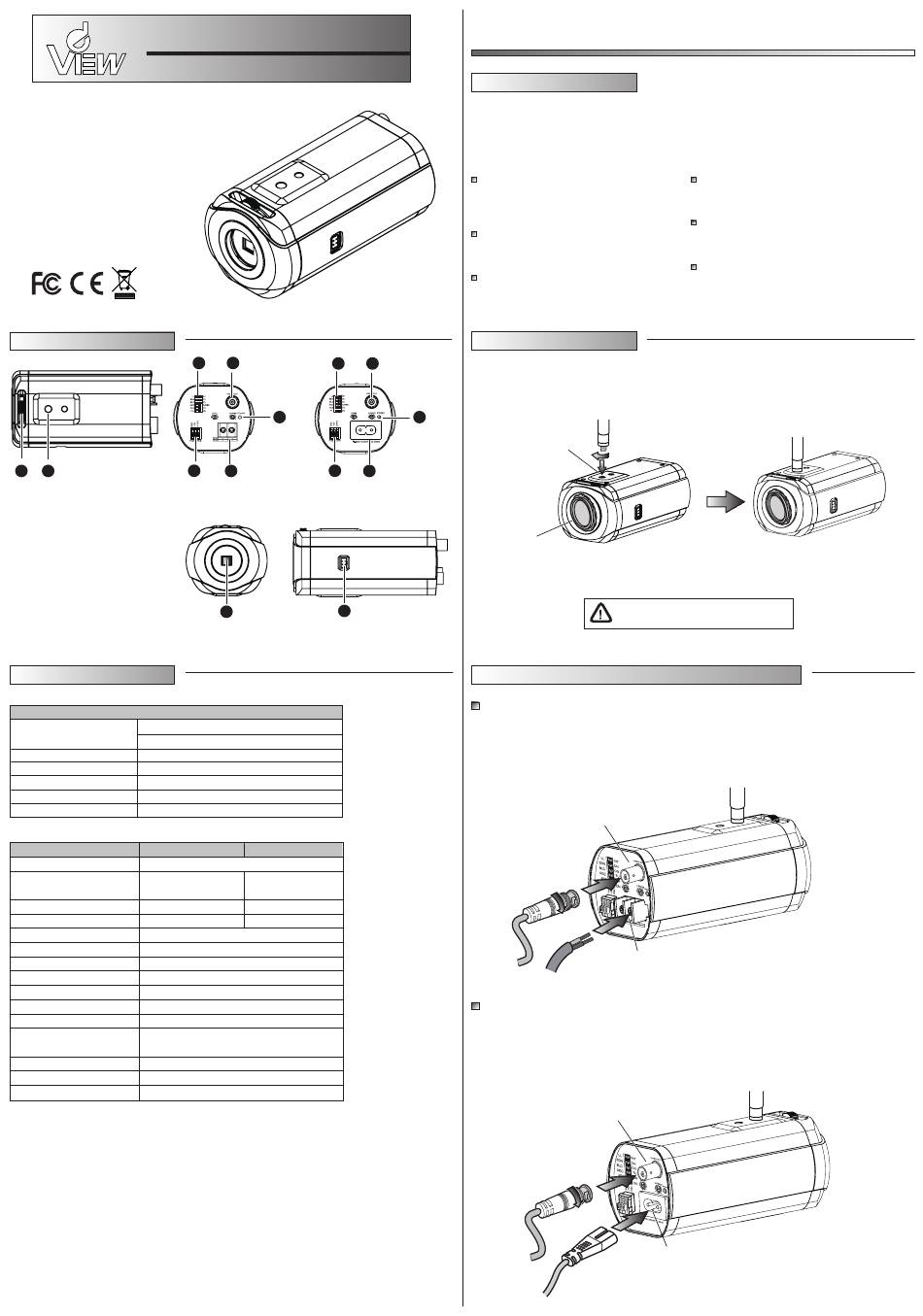

DeView CR Series Instruction Manual

High Resolution Box Camera

Instruction Manual

Parts Descriptions
1 2
Top View
1. Back Focus Adjustment
2. Bracket Mount
3. Function Control DIP Switches
4. BNC Composite Video Output
5. Power LED Indicator
6. Video Lens Drive Terminal Block
7. Power Input Terminal Block
(DC/AC Low Voltage)
8. AC Power Input Socket
(AC Mains)
9. CCD Sensor
10. DC Lens Connector

Specifications

Power & Dimensions
Power Source
Low Voltage: 12VDC / 24VAC
Power Consumption
Operating Temperature
Storage Temperature
Dimensions 66mm (W) x 57mm (H) x 121mm (L)
Weight
General NTSC
Image Picture Element 1/3" Format Interline CCD Sensor
2:1 Interlace
Scanning Element
H:15750Hz V:59.94Hz
Effective Picture Element 768(H) x 494(V)
380K
Approximate pixels
Resolution
Minimum Illumination
S/N Ratio
D/N Control
AGC Control
Back Light Compensation
Exposure Control Auto IRIS Lens / Auto Electronics Shutter
Shutter Speed (AES)
1/60 (1/50) ~ 1/100000 sec Max.
AWB Range
Synchronization
Video Output 1.0Vpp 75Ω BNC unbalanced
Please visit our website for more information:
www.deview.com
Product specifications subject to change without notice.
Certain product names mentioned herein may by trade names and/or registered
trademarks of other companies.
CR Series
3 4 3
5
6 7 6
AC/DC
AC Mains
Low Voltage
Rear View
10
9
Front View Side View
AC Mains: 100~240VAC
4.5W Max.
-10ºC to +50ºC
-20ºC to +60ºC
251.6 g (without lens)
PAL
2:1 Interlace
H:15625Hz V:50.0Hz
752(H) x 582(V)
440K
540 TV lines
0.3 lux @ F=1.2
48 dB
Off / On
Normal / Turbo
Off / On
Auto illumination Control
2700°K ~ 9700°K
Internal / Line Lock
Connection and Adjustment
Precautions
This product must be installed and maintained in accordance with good
installation practices by qualified personnel only.
To prevent damage to your camera or injury to yourself or to others, read and
comply with the safety precautions as follows:
Never attempt to disassemble or modify the
camera. Any modification could lead to
damages that are not covered by the
guarantee.
Make sure the power source is switch off and
disconnected before installation. Refer
servicing to qualified personnel only.
To prevent fire or electrical shock, use only
regulated power supply and the wiring should
be used for the appropriate input terminal.

Camera Installation

4
The camera can be mounted by using either the bracket
mount on the top or bottom (see part descripton 2).
The bracket mounts accept standard photographic mounting
bolts (1/4" BSW or 20 UNC).
5
Bracket Mount
8
Protective
Cover
Connecting to the Power Source and Video Output
AC/DC Low Voltage Power Supply:
The camera operates in either 24 VAC or 12 VDC.
Connections are indicated in the rear panel of the camera.
The power supply must be stable power source and should only be
installed by qualified personnel.
Connect the 75 Ohm coaxial cable to video output (see part description 7).
AC Mains Power Supply:
The camera operates directly from the mains supply and is supplied with a
detachable power supply cord. The operating voltage is 100~240 VAC.
Connect the 75 Ohm coaxial cable to video output
(see part description 7).
V531-CR005-200
Ver.09/2009
Do not expose or operate the camera in wet areas.
Moisture may damage the camera and also increase
the danger of electrical shock.
Do not attempt to aim the camera at the sun or other
extremely bright objects. This may cause damage to
the CCD and the void of warranty.
Do not touch the lens or the CCD by hands while
installing or adjusting the camera. This may cause
damage to the camera.
Ensure the bracket and mounting surface can
support the load of the camera and bracket.
Video Output
Power Input
Terminal
Video Output
Power Socket
