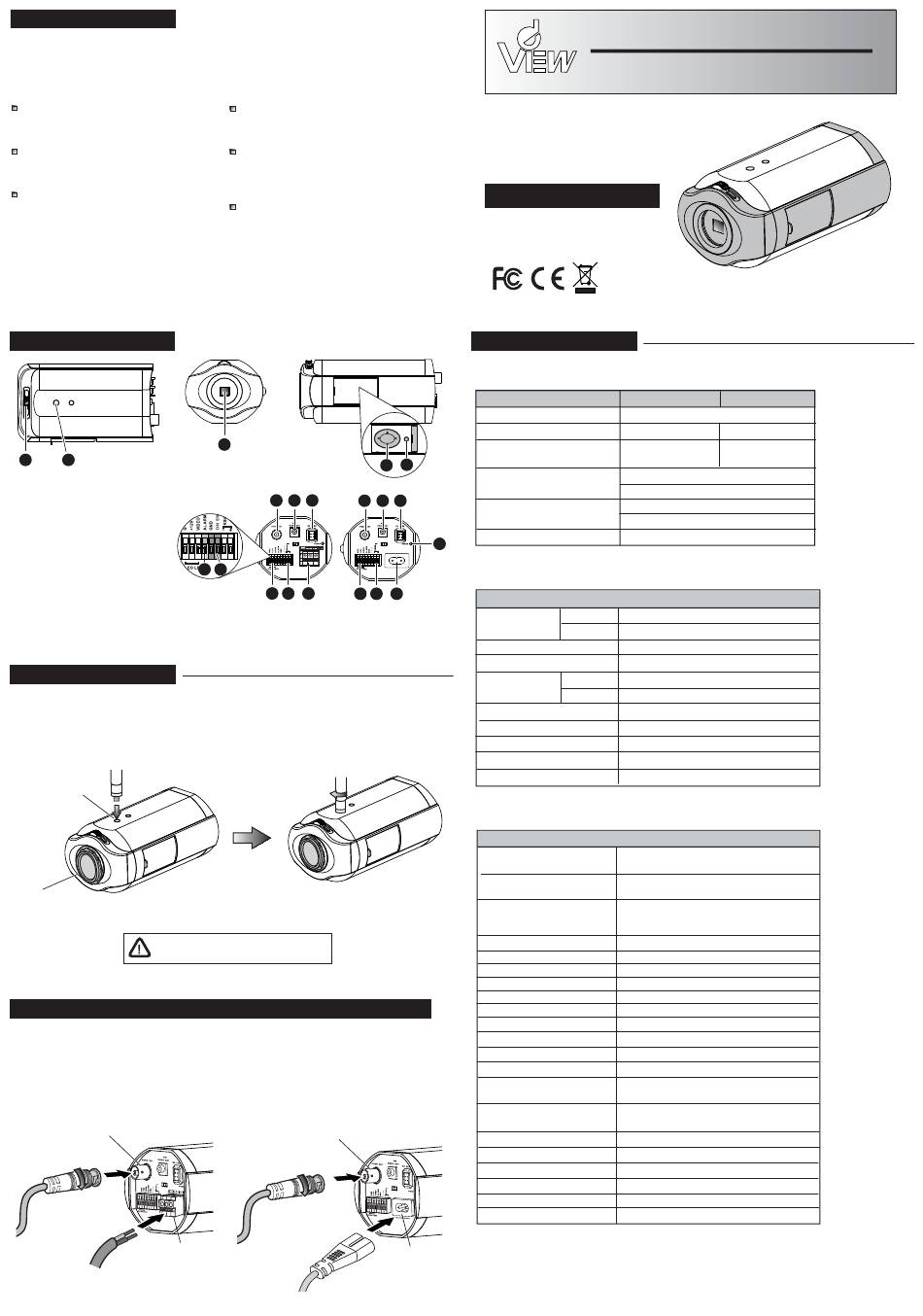

DeView CQ Series Instruction Manual

Precautions

This product must be installed and maintained in accordance with good
installation practices, by qualified personnel only.
To prevent damage to your camera or injury to yourself or to others, read and
comply with the safety precautions as follows:
Never attempt to disassemble or modify the
camera. Any modification could lead to
damages that are not covered by the guarantee.
Make sure the power source is switched off and
the camera disconnected before installation.
Refer servicing to qualified personnel only.
To prevent fire or electrical shock, use only a
regulated power supply and the wiring used
should be appropriate for the input terminals.
Please visit our website for more information:
www.deview.com
Product specifications subject to change without notice.
Certain product names mentioned herein may by trade names
and/or registered trademarks of other companies.

Parts Descriptions

1 2
Top View
1. Back Focus Adjustment
2. Bracket Mount
3. Camera Sensor
4. OSD Navigation Pad
5. OSD Enter Button
6. BNC Composite Video Output
7. Second Video Output
8. DC Lens Connector
9. Video Lens Connetor
10. Motion/Face Detect Alarm Output
11. Day/Night Switching Input
12. RS-485 Connection Terminal
13. Power Input Terminel
14. AC Mains Power Input Connector
15. Power Lamp Indicator

Camera Installation

The camera can be mounted by using either the bracket
mount on the top or bottom (see part descripton 2).
The bracket mounts accept standard photographic mounting
bolts (1/4" BSW or 20 UNC).
Bracket Mount
Protective
Cover
Ensure the bracket, screws (inc. wall plugs,
if used) and mounting surface can support
the load of the camera, lens and bracket.

Connecting to the Power Source and Video Output

For AC/DC Dual Power Model: The camera operates at either 24 VAC or 12 VDC.
For AC Mains Power Model: The camera operates at 100 ~240 VAC.
Connections are indicated in the rear panel of the camera.
The power supply must be a stable power source and should only be installed by qualified personnel.
The power LED on the rear panel is illuminated when the camera is connected to a power source.
Connect the 75 Ohm coaxial cable to video output (see part description 6).
Video Output
Rt
ON
Power Input
Terminal
Do not expose or operate the camera in wet areas.
Moisture may damage the camera and also increase
the danger of electrical shock
Do not attempt to aim the camera at the sun or other
extremely bright objects, even when switched off.
This may cause damage to the CCD and invalidate
the warranty.
Do not touch the lens elements or the CCD with
your fingers while insalling or adjusting the camera.
This will reduce image quality or cause damage to
the camera.
CQ3/V531-CQ000-203
SET
Control Key
3
Front View Side View
6 7 8 6
Rt ON
10 11
9 12 13
9 12
AC/DC Dual Power AC Mains Power
Rear View
Video Output
Instruction Manual
Ver.03/2011

Specifications

650 TVL TYPE
Image Size
Pixel Element
SET
Control Key
Scanning Frequency
4 5
Resolution
7 8
Minimum illumination
Video Output
15
Rt ON
* Night Mode is available Only for TDN Models
14
General
Power Source
Power Consumption
Power Indicator
IRIS Connector
Lens Mount
Back Focus Adjust
Mounting Hole
External Dimensions
Operation/Storage Temperature
Functional Specification
Exposure Control
AES
MES
Digital Slow Shutter (DSS)
Reverse Control
Motion Detection
Face Detection
Digital Zoom
Resolution Enhancement
Digital Noise Reduction (DNR)
SYNC System
S/N Ratio
AGC Max Gain
Auto White Balance (AWB)
Auto White Balance Range
Manual White Balance Range
Day & Night
Chroma
WDR Range
Rt
ON
Remote Control
Day/Night Switching Input
Mains Power
Connector
CQ Series
Motion Detection & Face Detection
High Resolution Box Camera
NTSC
1/3 Format Interline CCD Sensor
976(H) x 494(V) 976(H) x 582(V)
NTSC 2:1 Interlace PAL 2:1 Interlace
H:15750Hz V:59.94Hz H:15625Hz V:50.0Hz
Day Mode: 650 TV Lines
* Night Mode: 700 TV Lines
Day Mode: 0.3 Lux @ F1.2 (DSS OFF)
* Night Mode: 0.01 Lux @ F1.2 (DSS OFF)
1.0 Vpp BNC 75Ω unbalanced
Mains Power 100~240 VAC
Low Voltage 12VDC or 24VAC
5.7W Max
3Ø Green LED on Rear Panel
Video Drive 3pin Push Lock Terminal Block on Rear
DC Drive 4pin Connector on Rear
CS Mount, Change C Mount by Adaptor
Adjust by screw
1/4" Top and Bottom
73.5 mm(W) x 58 mm(H) x 126 mm (L)
-10°C~50°C / -20°C~60°C
Auto IRIS Lens / Auto Electronic Shutter /
Manual Electronic Shutter
Auto Luminance Control
1/60 ( 1/50 ) ~ 1/100000 sec Max.
8 Step 1/60(NTSC)1/50 (PAL),
1/100(NTSC) 1/120(PAL), 1/250, 1/500,
1/1000, 1/2000, 1/5000, 1/10000
2x, 4x, 8x, 16x, 32x, 64x,128x, 256x
H-Reverse / V-Reverse / HV-Reverse
ON / OFF
Yes, ON / OFF
8x Max.
Standard / Enhancement / Enhancement-EX
3D DNR, OFF / Low / Middle / High / Auto / DVR
INT / Line Lock
50 dB
36 dB
AWB / AWB-EX / Push White Balance /
Manual White Balance / AWB Speed
Standard Range: 2500K ~ 9500K
Extended Range: 1800K ~ 18000K
1x Preset, R Gain and B Gain Adjustable
Auto / Day / Night
Level 0-15 Adjustable
53 dB Max
RS-485
Dry (voltage-free) contact, from external device
PAL
