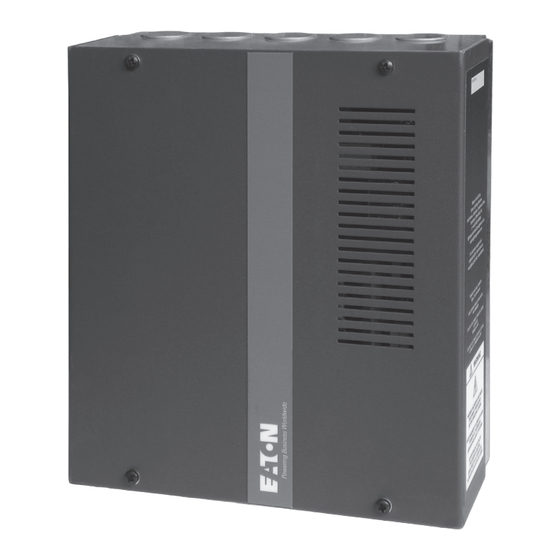

- Page 1 Installation guide RI-2 Relay Interface...
-
Page 2: Table Of Contents
Contents Introduction Weight Dimensions Specification Mounting Supply Wiring iCAN Network Connections Relay Outputs Analog/Digital Inputs Digital Outputs RS485 Connections RJ12 Connector Alarm Inputs Service Switches and LEDs Eaton - Lighting Systems iLight Product Series - RI-2 73-897-00 IM8791 Iss 5... -
Page 3: Introduction
Terminal Sizes: network. RI-2 may be programmed to control iCANnetTM cable size: 5 x 1.5mm curtains & blinds, screens, AV and other presentation equipment as well as controlling Control input cable size: 10 x 1.5mm... - Page 4 Active high voltage ≥ supply – 1 volt • All analog / digital inputs wire with 2 part connectors with screw terminals. Wire sizes 12 AWG (4mm ) to 24 AWG (0.25mm Eaton - Lighting Systems iLight Product Series - RI-2 73-897-00 IM8791 Iss 5...
-
Page 5: Mounting
Mounting Supply Wiring Location and spacing Connecting the Supply The RI-2 Interface should be installed in a dry This unit requires a nominal 240V single phase ventilated location, where ambient conditions supply (Live, Neutral, and Earth) with 1A are maintained within the requirements of the capability. -
Page 6: Ican Network Connections
Network Termination T - Indicates where a termination is required. The RI-2 has built-in network termination. If the RI-2 is at the end of the network, ensure the CAN TERM jumper is fitted in the Termination On position. Function... -
Page 7: Relay Outputs
• Analog inputs accept 0 – 10VDC signals Note: Wire distance from the device to the RI-2 should not exceed 32 feet (10m). Connections are made via a 9-way two part connector with screw terminals. The unit is supplied with knockouts, suitable for 3/4”... -
Page 8: Rs485 Connections
RS485 and DMX networks are daisy-chained. Devices at either end of the network must An RS485 port is provided for connection to be terminated. If the RI-2 is at the end of the third party devices or PC integration. network, ensure the appropriate jumper is... -
Page 9: Rj12 Connector
RJ12 Connector located on the base of the unit Function Function Alarm 1 Alarm 2 Eaton - Lighting Systems iLight Product Series - RI-2 73-897-00 IM8791 Iss 5... -
Page 10: Service Switches And Leds
It is still possible to enter Diagnostic mode if a Source Controller is in iCANnet error status. Eaton - Lighting Systems iLight Product Series - RI-2 73-897-00 IM8791 Iss 5... -
Page 11: Eaton - Lighting Systems Ilight Product Series - Ri-2 73-897-00 Im8791 Iss 5
If power is cycled to the Source Controller then this will also take the unit out of override mode and it will start up in the default running status. Eaton - Lighting Systems iLight Product Series - RI-2 73-897-00 IM8791 Iss 5... - Page 12 Email: TechSupportCC@eaton.com Web: www.iLight.co.uk All products manufactured by Eaton Lighting Systems and identified with the iLight product series mark are warranted to be free from defects in material and workmanship and shall conform to and perform in accordance with Seller’s written specifications. For detailed warranty information, contact Eaton Lighting Systems.
