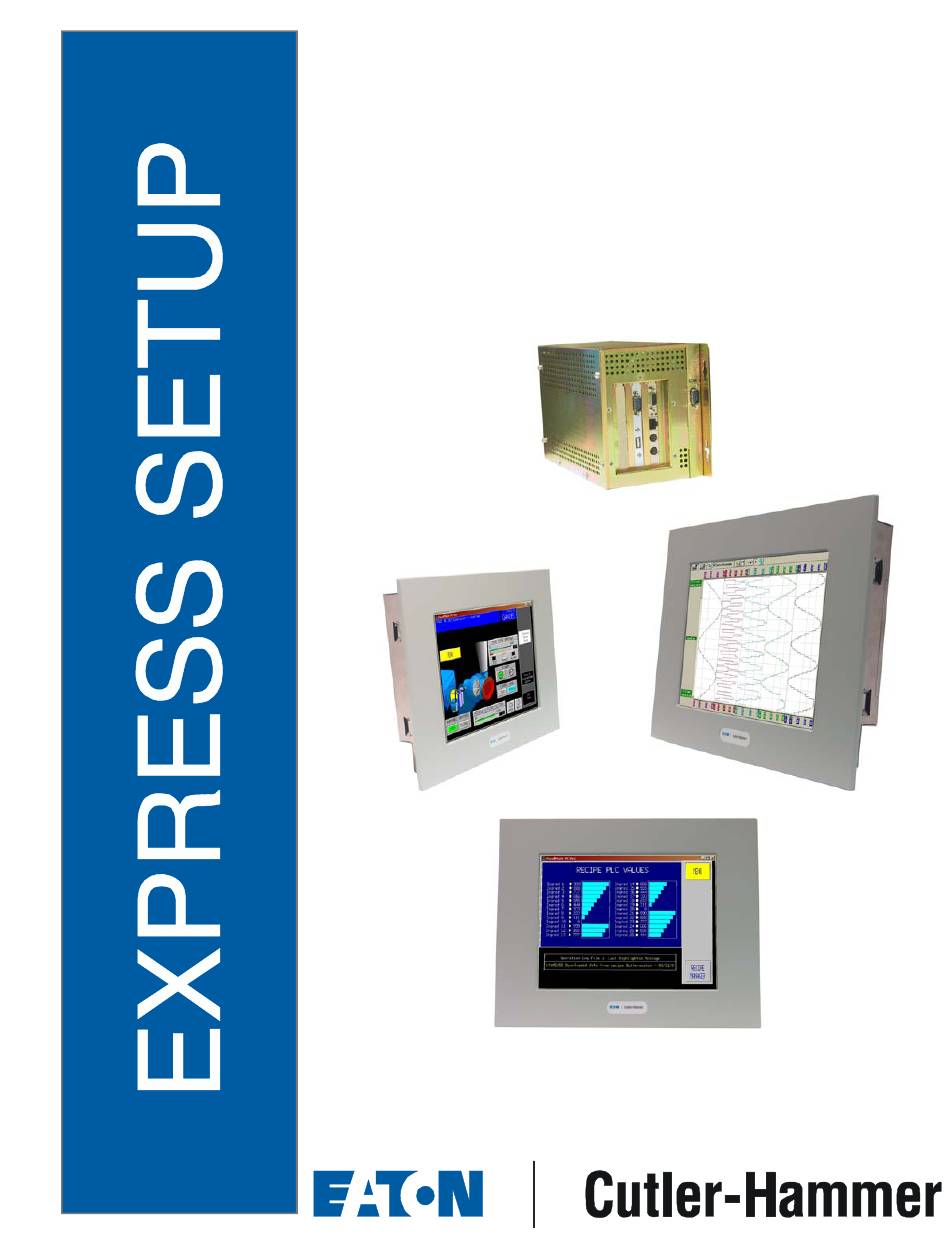

- Page 1 PanelMate ePro ® 7500 Series...
-
Page 2: Support Services
Support Services The goal of Eaton’s Cutler-Hammer business unit is If you are in the US or Canada, and have to ensure your greatest possible satisfaction with OI/PLC/IPC questions, you can take advantage of the operation of our products. We are dedicated to our toll-free line for technical assistance with providing fast, friendly and accurate assistance. -
Page 3: Hardware Installation
COMPONENTS UNLESS POWER HAS BEEN SWITCHED OFF OR AREA IS KNOWN TO BE Refer to Eaton’s Cutler-Hammer PanelMate ePro NON-HAZARDOUS. Users Guide for panel sizing and cabling recommendations. The guide is available on the... - Page 4 Power Supply and Ports Connect DC Power Your PanelMate ePro unit is designed to operate at 24VDC -15%/+20%. A removable three-position DC power connector attaches to the unit's connector receptacle. The DC input common (-terminal) and the chassis GND terminal are both internally connected to the PanelMate ePro chassis.
- Page 5 Power and Ground Instructions The PanelMate operator interface has been • Install a power supply solely for the designed to withstand severe environmental PanelMate conditions typical in industrial installations. If the present external power supply is used However, certain extreme conditions, such as for multiple devices then add an external serious ground faults, have the potential to power supply specifically for the PanelMate.
- Page 6 Communications Communicating to a PLC or Controller Connecting to the Serial Port (COM2) You can communicate to a PLC or controller via: The external serial port may be used for • A serial connection (COM2, RS232) communications with a PLC or controller. •...
- Page 7 Data Transfer/Software Download Transferring files to and from your unit can be Using a USB connection accomplished through Ethernet or USB. This page Your PanelMate ePro unit comes pre-loaded with shows common methods of connecting to your unit. the M-Systems DiskonKey USB driver.
-
Page 8: Mounting Diagram
Mounting Diagram Notes: • Dimensions are in inches. • Allow cable clearance on both left and right side of unit • The mounting diagram is available (in .dwg format) on Eaton’s Cutler-Hammer website... - Page 9 7500 Series Specifications Dimensions (overall) Emissions Height 6.31” (160 mm) • CISPR 22 Class A-Radiated and Conducted Width 10.51” (267 mm) Noise Immunity Depth 5.25” (133 mm) • IEC 801-2,3,4,6,8 Weight • IEC 61000-4-2,3,4,5,6,8 • 7 lbs (3.18 Kg) Agency Certifications Voltage •...
