Wolfhound-PRO UNIT DESCRIPTION
Wolfhound-PRO (trackball model) unit appear in Figure 3. The unit has an OLED, navigation trackball,
five electrical interfaces and an LED as listed below (see also arrows 1, 2, 3, 6, 7 and 8 in Figure 3):

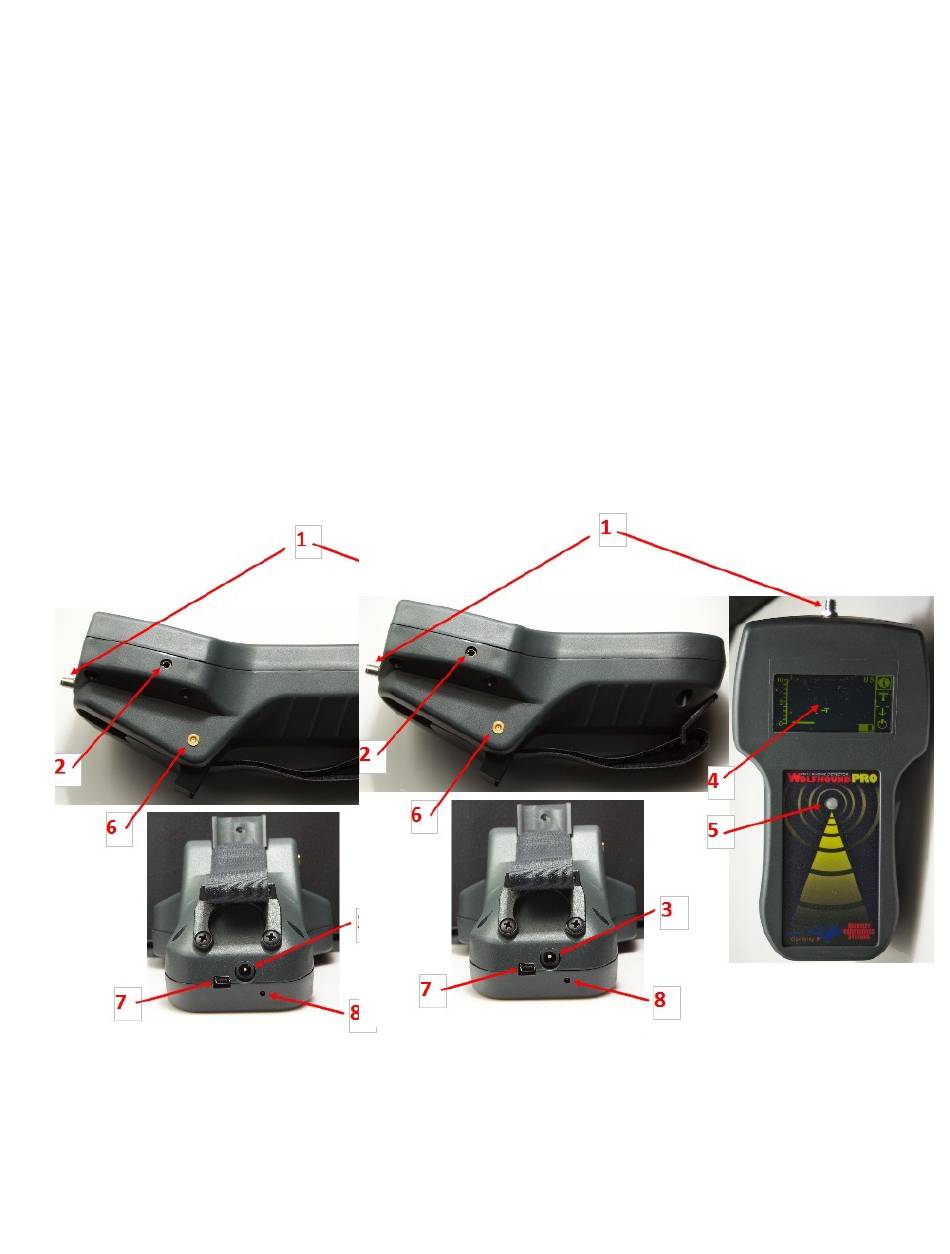

Figure 3a. The Wolfhound-PRO Unit, Controls, Indicators and Interfaces
1. Antenna port
2. Audio (ear bud) jack
3. DC Power jack
4. Liquid Crystal Display (OLED)
5. Trackball (roll for 2D cursor navigation/press down for selecting)
6. Laser jack
7. Mini USB jack
8. Battery status LED (Red)
7
