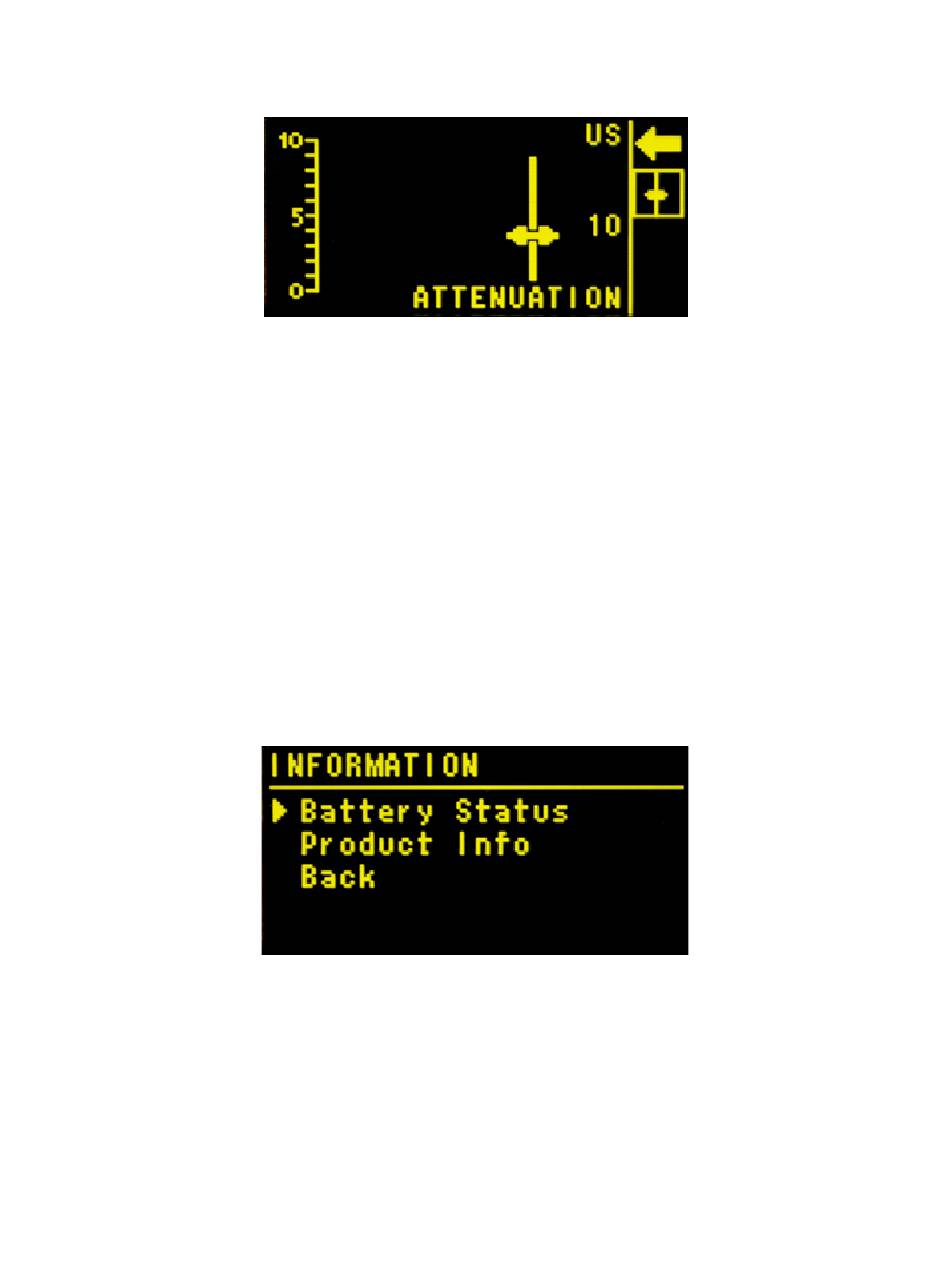

Figure 20. ATTENUATION screen (set to ~ 10dB)
The attenuation level is adjusted by clicking on the second icon from the upper right corner in Figure 20,
then rolling the ball to move the "elevator" up to increase attenuation while simultaneously observing
the signal level decreasing on the coarse bar chart and scale on the left side of the screen. The number
immediately to the right of the elevator icon represents the approximate level of attenuation in dB as it
is varied over the interval of 0 to 30. The maximum attenuation attainable in this manner is ~ 30 dB,
corresponding to about 5 divisions on the coarse signal scale.
Information Screen
The Information screen provides crucial information about the Wolfhound-PRO unit battery status and
the unit firmware version. To access this screen, select "information" from the MAIN MENU to produce
the INFORMATION screen seen in Figure 21:
Figure 21. INFORMATION screen
When the first menu item (Battery Status) is clicked, it will produce the BATTERY STATUS screen with
unit-specific time-dependent battery information as seen in Figure 22:
23
