Typical Screen
1
The screen and icons shown is the typical Direction Finding screen but shares many functions and icons
of most other measurement screens in the Wolfhound-PRO.
1 Coarse Bar Chart: Indicates instantaneous signal strength on a scale of 0 to 10. Maximum hold
indication provided by the two dashes at each side of bar-chart.
Threshold Setting marker: Threshold setting is adjusted by pressing the ball down on the
2
icon on the right (see Figure 13), then rolling the ball (up or down) to the desired level with
respect to the bar chart scale to the left, then clicking the ball down to lock marker setting.
This setting controls both the Frequency Field and Cell Phone icon indicators (arrows 4 and 5).
Direction Finding Features Toggle: This icon will only display when in the Direction Finding
3
selection in the Measurements menu. Selecting this icon and toggle through the following
modes: Threshold (T), Reset Maximum Hold (arrow pointing down), Frequency Discriminator
Mode (single cellphone), Scan All Mode (3 cell phones), Direction Finding Mode (scale). Once
2

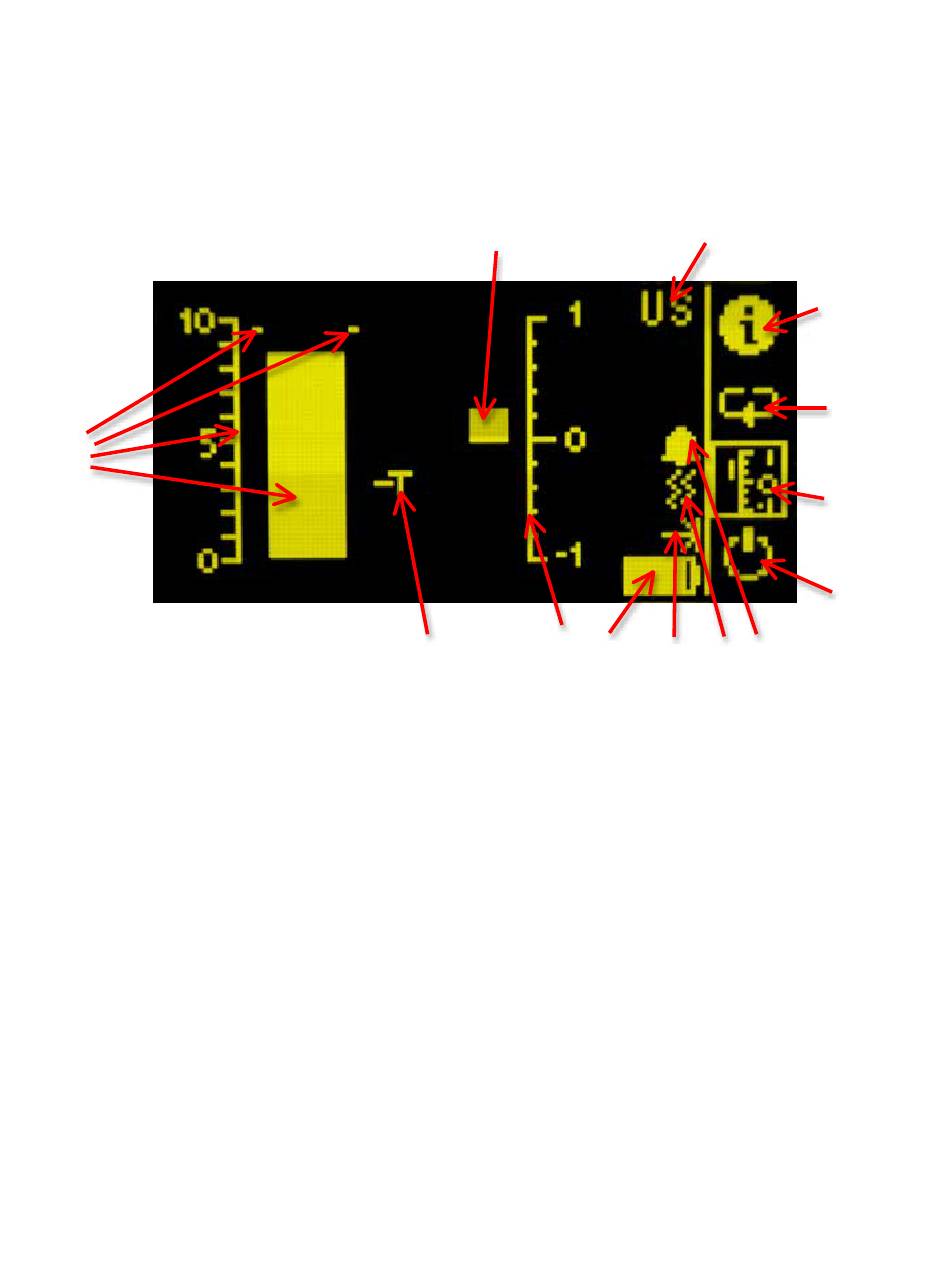

Figure 8. Typical Screen Icons
4
5
10
11
6
7
11 13
12
3
8
9
"T"
