Clicking "Back" in Figure 5 or in any other screen where "Back" appears will take the user to the next
higher level menu or screen. The first four items in the MAIN MENU (i.e., Measurements, Effect
Options, Settings and Information) are discussed next :
MEASUREMENTS Screen
Clicking on "Measurements" from the MAIN MENU (Figure 5) will yield the MEASUREMENTS Menu:

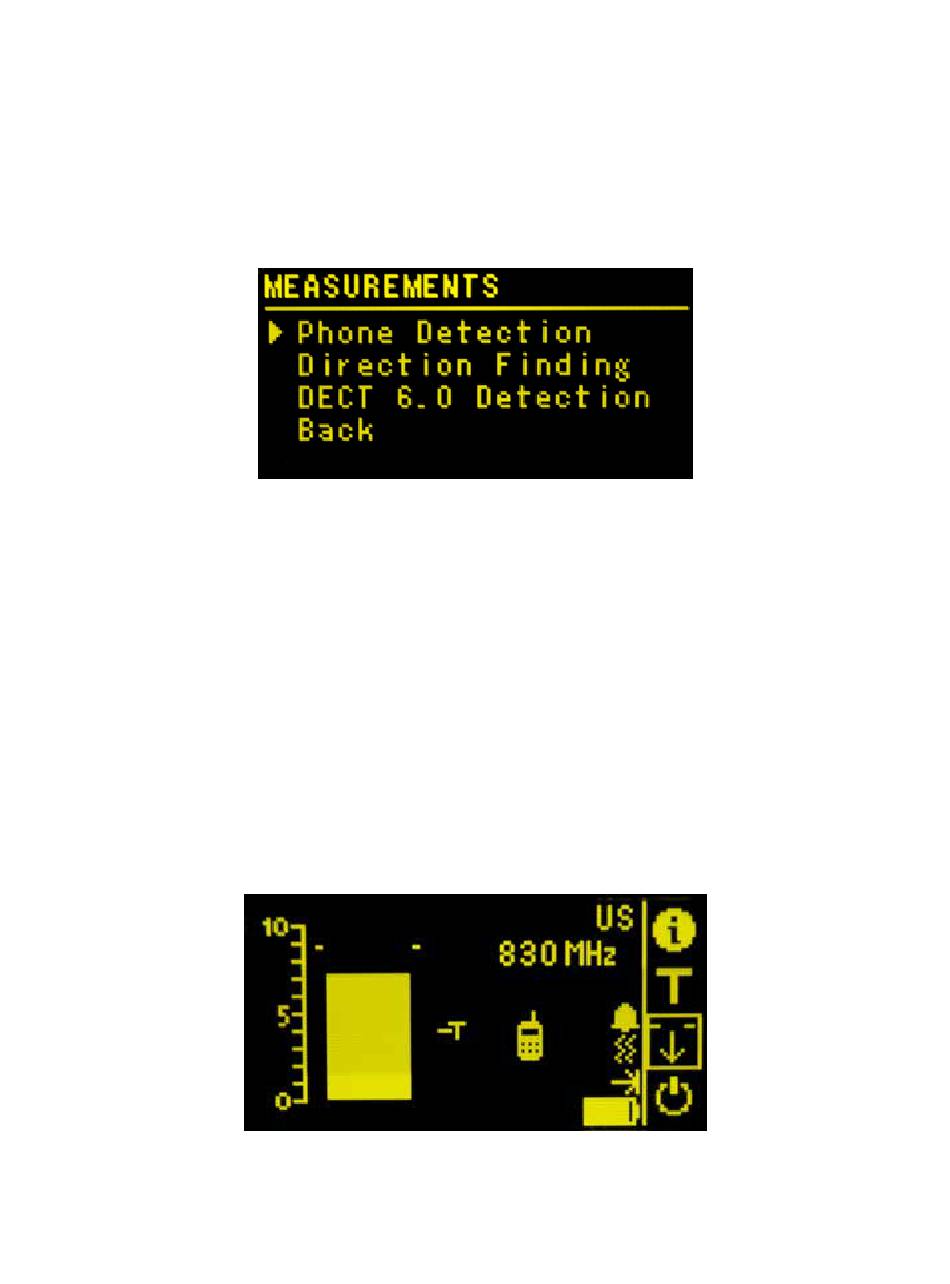

Figure 6. MEASUREMENTS Menu Screen
This menu allows the user to enter one of the three modes of real-time monitoring of the Wolfhound-
PRO unit:
Phone Detection Mode
In this mode (see Figure 7), the Wolfhound-PRO will detect the use of one or more cell phones while
monitoring the relative strength of the source signal(s) and frequencies using the Omnidirectional
antenna. The frequency band needs to be selected via the BAND SELECTION screen. The frequency
indication corresponds to the strongest signal detected in the selected frequency band, using a coarse
bar-chart varying in height on a relative scale of 0 to 10. Each division on the coarse scale corresponds to
approximately 6.4dB change in signal level. In this mode cell phone use can be detected but direction of
maximum signal strength cannot be determined.
Figure 7. Phone Detection Mode
