Ecom -B Manual page 2

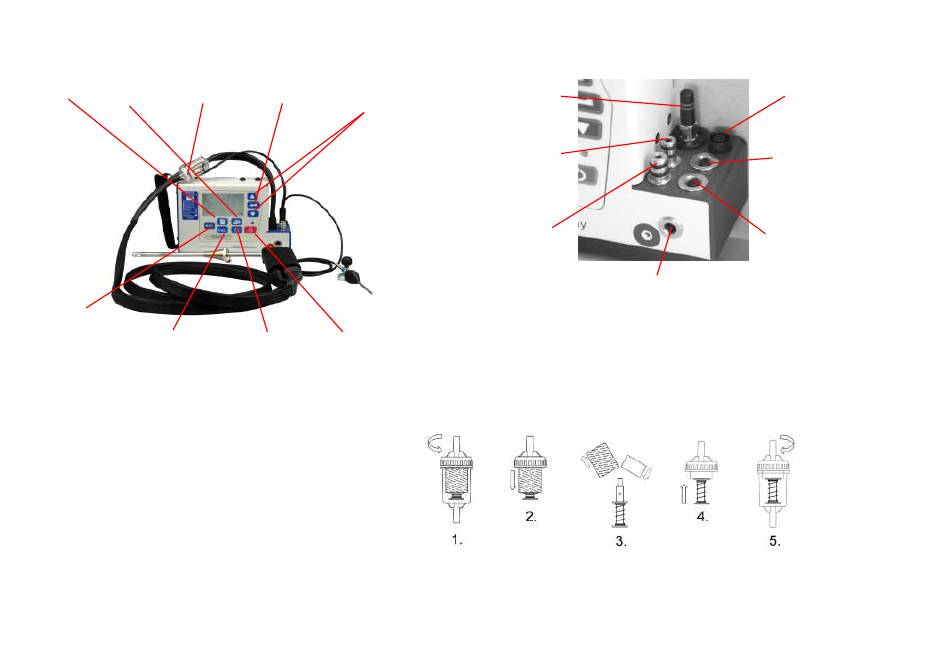

Instrument Design
Condensate
Store Print
pad
key key
ESC key
(quit/
CAL key
exit menu)
Condensate pad
Regularly check the condition of the condensate pad. It should be changed:
- If it is darker than no. 3 on the soot scale
- If it is extended past "MAX" mark.
Replace the condensate pad as follows:
1. Remove hose from the cap and unscrew the cap
2. Unscrew the retaining bolt with spring
3. Replace old condensate pad with new pad
4. Screw on retain bolt with spring again
5. Screw on cap and replace the hose to the cap
Enter button
(confirm
Cursor control
selection)
(up/down/scroll)
Standby key
Instrument
ON/OFF
Bluetooth
antenna
(option)
Draft
connection
Gas
connection
Pressure connection
RS232
interface
Ambient air
temperature
sensor
Gas temperature
connection
