RTS IFB 4030-M User Instructions

Passive ifb beltpack with 1/4” 6.3mm jack
Hide thumbs
1
2

Advertisement

Table of Contents

Description

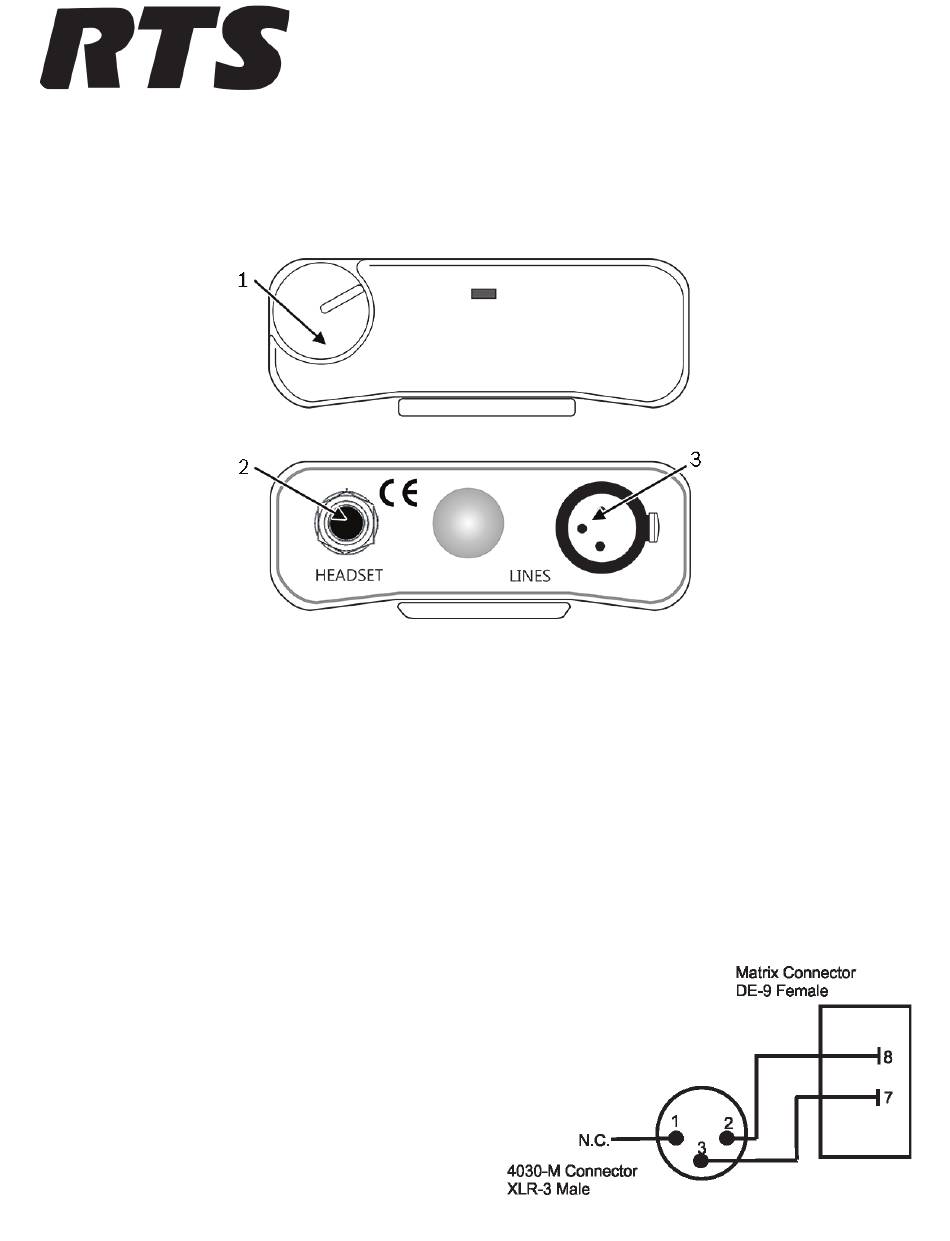

The IFB 4030-M is a passive beltpack intended for use with RTS digital matrix intercom systems.
1.
Controls headset/earset output audio level
2.
1/4" Monaural headset/earset output
3.
XLR-3F Balanced input

Installation

1.
Connect the belpack to an unused intercom system port (see cable diagram below).
2.
Configure the unused intercom system polrt (via AZedit) for IFB.
3.
Set the port output level (via System|Gains|Analog Input/Output Gains) to -4 dB.
4.
Send the changes to the intercom.
5.
Connect the headset/earset to the unit
IFB 4030-M
Passive IFB beltpack with 1/4" (6.3mm) Jack
User Instructions
