GIGABIT
SWITCH
Q
I
M A N A G E D
uick
nstallation
Rack-Mount
Introduction

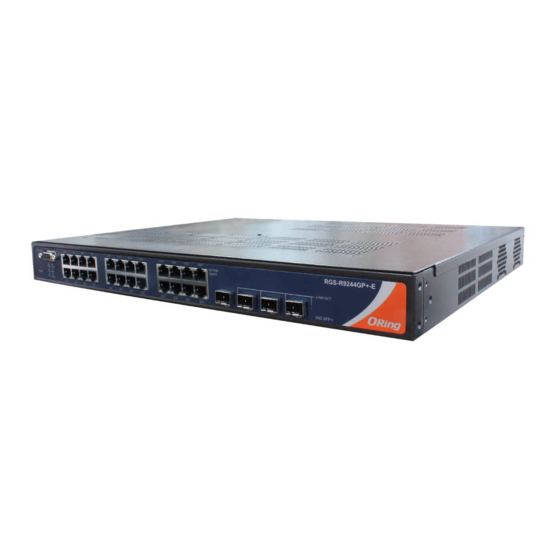

The
RGS-R9244GP+ series
which consist of
R9244GP+-E,
are rack-mount Ethernet switches with twenty-four
10/100/1000BaseT(X) Ethernet ports and four 1G/10G SFP+ ports. The
device provides Layer 3 functions such as RIP, VRRP, and static routing for
more efficient network management and higher security. The
R9244GP+-E
is an enhanced model with dual DC inputs and relay output.
With complete support for Ethernet redundancy protocols such as O-Ring
(recovery time < 30ms over 250 units of connection), O-Chain, MRP, Fast
Recovery, and MSTP (RSTP/STP compatible), the switch can protect your
mission-critical applications from network interruptions or temporary
malfunctions with its fast recovery technology. Featuring a wide operating
o
o
temperature from -20 C to 60 C, the device can be managed centrally and
conveniently via Open-Vision utility, web browsers, Telnet and console
(CLI) configuration, making it to be one of the most reliable choice for
highly-managed and Fiber Ethernet application.
Package Contents
Contents
Pictures
Number
RGS-R9244GP+ or
X 1
RGS-R9244GP+-E
X 1
Console Cable
X 1
CD
X 1
QIG
Screw (M4 X6)
X 6
Rack-mounted
X 1
kit (L&R)
X 1
Power cord
Preparation
Before you begin installing the switch, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed or multi-unit rack
assembly, the operating ambient temperature of the rack environment may be
greater than room ambient. Therefore, consideration should be given to
installing the equipment in an environment compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Q I G
RGS-R9244GP+ Series
RGS-R9244GP+ Series
G
uide
RGS-R9244+
, and
RGS-
Reduced Air Flow:
amount of air flow required for safe operation of the equipment is not
compromised.
Mechanical Loading:
RGS-
hazardous condition is not achieved due to uneven mechanical loading.
Circuit Overloading:
to the supply circuit and the effect that overloading of the circuits might have on
overcurrent protection and supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this concern.
Dimension
49.0
17.80
30.20
Console
G2
G4
G6
G8
G10
G12
G14
Fault
Reset
R.M.
PWR
Ring
G1
G3
G5
G7
G9
G11
G13
Panel Layouts
1
8 9
Console
G2
G4
G6
G8
G10
G12
Fault
R.M.
Reset
PWR
Ring
G1
G3
G5
G7
G9
G11
2 3 4 5 6
7
1. Console port
2. Reset button
3. Power indicator
4. Ring status LED
5. RM status LED
6. Fault indicator
1907-2-29-RGSR9244GP+-1.2
Installation of the equipment in a rack should be such that the
Mounting of the equipment in the rack should be such that a
Consideration should be given to the connection of the equipment
25.50
35.50
8.00
20.00
431.00
5.50
G16
G18
G20
G22
G24
RGS-R9244GP+
10/100/
1000T
LINK/ACT
10G SFP+
G15
G17
G19
G21
G23
G25
G26
G27
G28
R3.25
Front View
G14
G16
G18
G20
G22
G24
10/100/
RGS-R9244GP+
1000T
LINK/ACT
10G SFP+
G13
G15
G17
G19
G21
G23
G25
G26
G27
G28
10
11
7. LAN ports
8. LED for Ethernet ports LNK/ACT status
9. LED for Ethernet ports speed indicator
10. SFP+ ports
11. LNK/ACT LED for SFP+ ports
Rear View
3
1
2
1. Power switch
V+
V-
2. AC power input (100V~240V
PW2
1A@24V
PW3
/ 50~60Hz)
DC Power 12V~48V
AC 100-240V 50-60Hz
3. Dual DC power inputs
(RGS-R9244GP+-E Only)
PRINTED ON RECYCLED PAPER
Layer-3 Managed Gigabit Ethernet
Switch
Installation
Rack-mounting
Step 1:
Install left and right front mounting brackets to the switch using three screws on each side.
Step 2:
With front brackets orientated in front of the rack, fasten the brackets to the rack using two
more screws.
Network Connection
The series have standard Ethernet ports. According to the link type, the switch uses CAT 3, 4,
5,5e UTP cables to connect to any other network devices (PCs, servers, switches, routers, or
hubs). Please refer to the following table for cable specifications.
Cable Types and Specifications:
Cable
Type
Max. Length
Connector
10BASE-T
Cat. 3, 4, 5 100-ohm
UTP 100 m (328 ft)
RJ-45
100BASE-TX
Cat. 5 100-ohm UTP
UTP 100 m (328 ft)
RJ-45
1000BASE-T
Cat. 5 / Cat. 5e 100-ohm UTP
UTP 100 m (328 ft)
RJ-45
For pin assignments for different types of cables, please refer to the following tables.
10/100Base-T(X) RJ-45
1000Base-T RJ-45
Pin Number
Assignment
Pin Number
Assignment
1
BI_DA+
1
TD+
2
BI_DA-
2
TD-
3
BI_DB+
3
RD+
4
Not used
4
BI_DC+
5
Not used
5
BI_DC-
6
BI_DB-
6
RD-
7
BI_DD+
7
Not used
8
BI_DD-
8
Not used
Quick Installation Guide
Version 1.2
