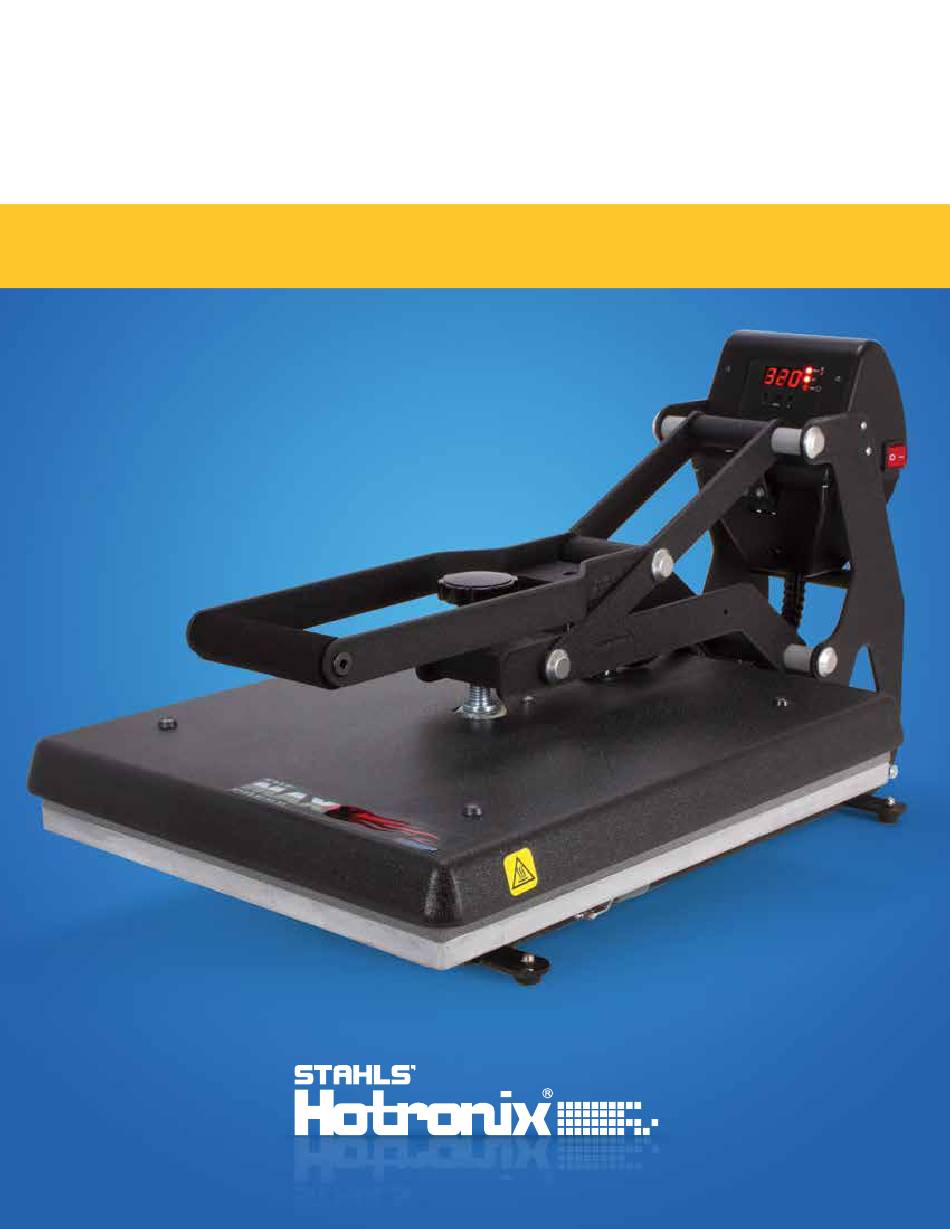

- Page 1 DIGITAL CLAM THE MAXX PRESS ® OPERATOR’S MANUAL Available models: MAXX Clam ® 11" x 15", 16" x 16", 16" x 20" (shown)
-
Page 2: Safety Instructions
13. Heat press should be placed on a sturdy, suitable stand at least 36"L x 24"W x 29"H. 14. Work area must be kept clean, tidy and free of obstructions. Product Warranty Registration Log onto www.Hotronix.com/registration You must provide the Hotronix heat press serial number and model information. ® SERVICE HOTLINE: 800.727.8520... -
Page 3: Table Of Contents
Table Of Contents Safety Instructions Machine View Control Panel Guide Operating Instructions 6–8 Connecting the System Start Up/Shut Down Adjusting Temperature Adjusting Time Adjusting Pressure Printing/Pressing Electrical Schematic Parts Location Guide Replacement Parts List Contact WWW.HOTRONIX.COM... -
Page 4: Machine View
HOTRONIX ® Machine View THE MAXX PRESS ® ON/OFF Switch Over-the-Center Pressure LED Display Adjustment Knob Lift Handle Upper Platen Lower Platen Circuit Power Breaker Supply Platen Release Located under the press Located on the back of the press SERVICE HOTLINE: 800.727.8520... -
Page 5: Control Panel Guide
Control Panel Guide Temperature Indicator Digital Display Set Indicator Time Indicator Decrease Increase Mode Select WWW.HOTRONIX.COM... -
Page 6: Operating Instructions
HOTRONIX ® Operating Instructions THE MAXX PRESS ® Connecting the System Start Up/Shut Down Connect the power cord into a properly grounded electrical outlet with a sufficient amperage rating. Voltage 120 volt requires a full 20-amp grounded circuit. Locate the lift handle and position the heat platen in the 240 volt requires a full 10-amp grounded circuit. -
Page 7: Adjusting Temperature
Select the desired time and push the Mode Select button The LED Display will show changes as you make them. again to exit. Note: The temperature indicator will only display temperatures All lights will be off and the press will return to PRINT mode. 200°F (93°C) and up. WWW.HOTRONIX.COM... -
Page 8: Adjusting Pressure
HOTRONIX ® Operating Instructions THE MAXX PRESS ® Adjusting Pressure Printing/Pressing Over-the-Center Pressure Adjustment Knob The MAXX Clam Press features a patented, Once your equipment has reached the designated temperature: ® over-the-center pressure adjustment located • Position the garment and design in the center of the heat platen. -
Page 9: Electrical Schematic
- 1000 W for 11 x 15, 10A CBs 240V 120V CE 230 V Version - 1800 W for 16 x 20, 20A CBs - 1800 W for 15 x 15, 20A CBs - 1000 W for 11 x 15, 10A CBs 230V WWW.HOTRONIX.COM... -
Page 10: Parts Location Guide
HOTRONIX ® Parts Location Guide THE MAXX PRESS ® SERVICE HOTLINE: 800.727.8520... -
Page 11: Replacement Parts List
Hub Cap 1/2" 1-1020 Insulation 16 x 20 1-2093 Steel Pin, 1/2" x 5.375" 3-1331-B Heat Platen Cover 11 x 15 MAXX 1-1042-1 All Thread Pin 3-1337-B Heat Platen Cover 15 x 15 MAXX 1-2096 PVC Spacer 1/2 I.D. x 5"... -
Page 12: Contact
HOTRONIX CONTACT US ® THE MAXX PRESS ® STAHLS’ Hotronix ® One Industrial Park Carmichaels, PA 15320 U.S.A. Technical Support 800.727.8520 Speak with a representative 24 hours a day, 7 days a week, 365 days a year. Customer Service 800.727.8520 Monday –...
