Summary of Contents for Hotronix Auto Open 6x6

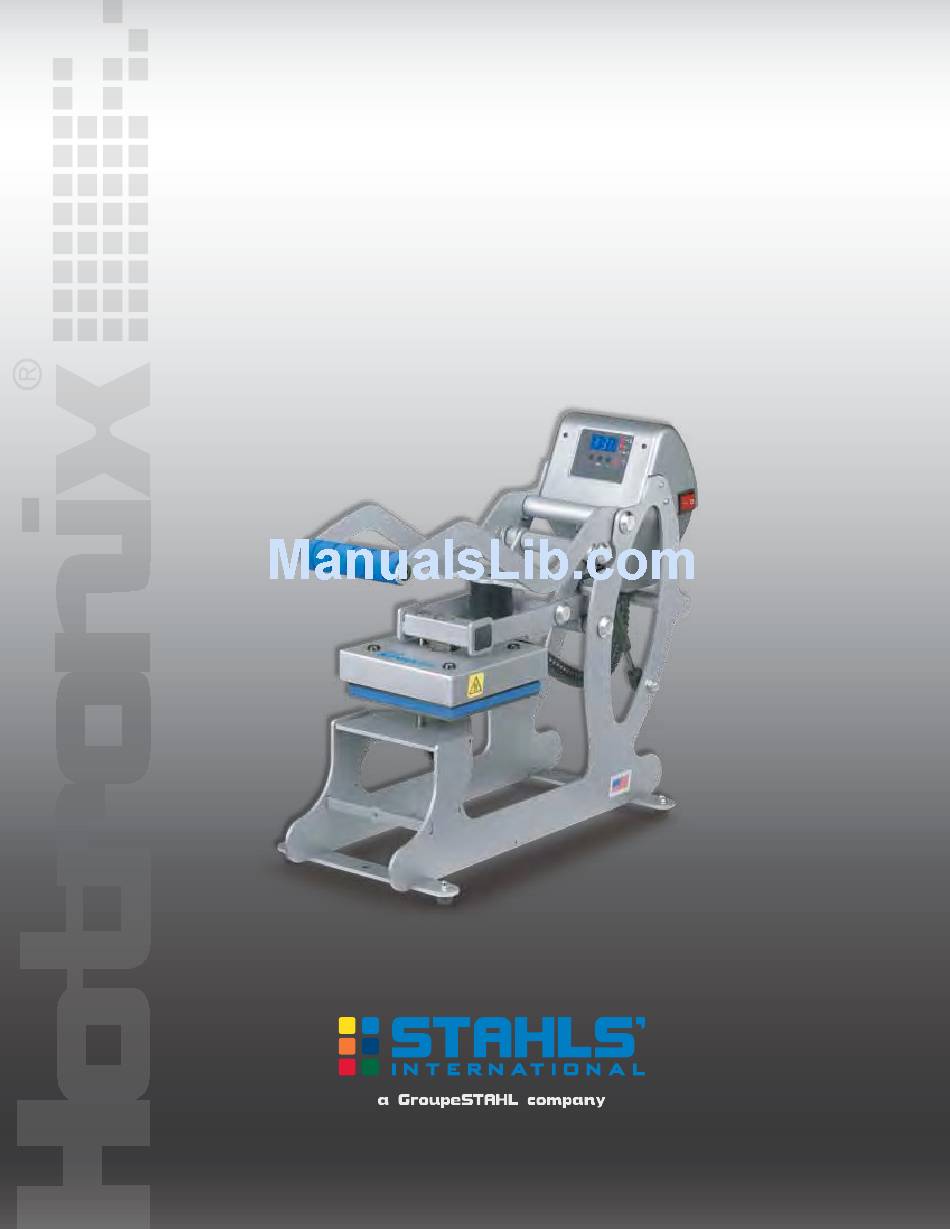

- Page 1 A U T O O P E N S E R I E S 6 x 6 P R E S S O P E R A T O R’ S M A N U A L...
-
Page 2: Safety Instructions
Safety Instructions When using your heat press, basic precautions should always be followed, including the following: Read all instructions. Use heat press only for its intended use. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids. Never pull cord to disconnect from outlet, instead grasp plug and pull to disconnect. -
Page 3: Table Of Contents
AUTO OPEN SERIES Table of Contents Machine View Control Panel Guide Operating Instructions 6-11 Connecting the System Turning the System On Adjusting the Temperature Adjusting the Time Adjusting the Pressure Pressing Replacement Parts List Parts Location Guide Electrical Schematic Contact... -
Page 4: Machine View
AUTO OPEN SERIES Machine View FRONT VIEW LED Display Located on the opposite side of the press Circuit Breaker Power Supply SIDE VIEW Lift Handle 12V Magnet Power ON/OFF Switch Pressure Adjustment Knob PAGE 4... -
Page 5: Control Panel Guide
AUTO OPEN SERIES Control Panel Guide Digital Display Temperature Indicator Set Indicator Time Indicator Pressure Indicator Increase Mode Select Decrease PAGE 5... -
Page 6: Operating Instructions
Connect the power cord into a properly grounded electrical outlet with a sufficient amperage rating. VOLTAGE 120 Volt - The Auto Open 6x6 Press requires a full 10 amp grounded circuit for 120 volt operation. 240 Volt - The Auto Open 6x6 Press requires a full 10 amp grounded circuit for 240 volt operation. -
Page 7: Turning The System On
See the diagram below for switch placement. NOTE: The Auto Open 6x6 Press is equipped with an Auto Sleep Mode. When the machine is not in use for a period of two hours, it will enter an energy saving sleep mode. To restore to normal operating mode, press any button on the display panel and allow the heat press to return to the target temperature Locate the packaging bolt positioned on the top-center of the press. -
Page 8: Adjusting The Temperature
AUTO OPEN SERIES Adjusting the Temperature ADJUST THE TEMPERATURE Locate the LED Display on the Press. Press the Mode Select button located in the center of the Control Panel. The (SET) and (TEMP) lights located next to the display will illuminate indicating you are in the adjust temperature mode. -
Page 9: Adjusting The Time
AUTO OPEN SERIES Adjusting the Time ADJUST THE TIME Your Auto Open, 6 x 6 Press has two time settings. This will allow you to set different times when a two hit application is required. For single hit applications, you simply set both time settings the same. Once you have adjusted the temperature, press the Mode Select button again. -
Page 10: Adjusting The Pressure
AUTO OPEN SERIES Adjusting the Pressure ADJUST THE PRESSURE First, locate the LED Display on the Press. (See figure 1) The Pressure Adjustment Knob is located in the center of the heat platen (See figure 2) Adjust the pressure by turning the knob clockwise to increase pressure and counter clockwise to decrease pressure. -
Page 11: Pressing
AUTO OPEN SERIES Pressing PRESS Once your equipment has reached the designated temperature: Position the garment and application and proceed to press. Lower and lock the heat platen into the press position. This procedure will start the automatic timing process. The timer will automatically count down and lift the heat platen into the “UP”... -
Page 12: Replacement Parts List
AUTO OPEN SERIES Replacement Parts List Item # Part Name Part # Qty. Hex Soc Button HD #10-32 x 1/2” 3-1011-164 Rubber Foot 1-1256 Acorn Hex Nut 3-1011-182 Adjustment Spindle 1-1023 Lower Platen 6 x 6 KIT 3-6911 Silicone Pad Gray 6 x 6 Blue 1-2138 Heat Platen 6 x 6 3-1334... -
Page 13: Parts Location Guide
AUTO OPEN SERIES Parts Location Guide PAGE 13... -
Page 14: Electrical Schematic
AUTO OPEN SERIES Electrical Schematic US 120 V VERSION US 240 V VERSION GERMAN 240V VERSION PAGE 14 PAGE 14... -
Page 15: Contact
Contact STAHLS’ International 20600 Stephens Street St. Clair Shores, MI 48080 U.S.A. phone (001) 586 . 772 . 5551 (001) 586 . 772 . 6237 email info@stahlsinternational.com StahlsInternational.com This document includes multiple trademarks and describes equipment covered by many patents that are owned by GroupeSTAHL and/or its subsidiaries. - Page 16 Proudly made in the U.S.A. 2 0 6 0 0 S t e p h e n s S t r e e t S t . C l a i r S h o r e s , 4 8 0 8 0 , U . S . A . ( 0 0 1 ) 5 8 6 .
