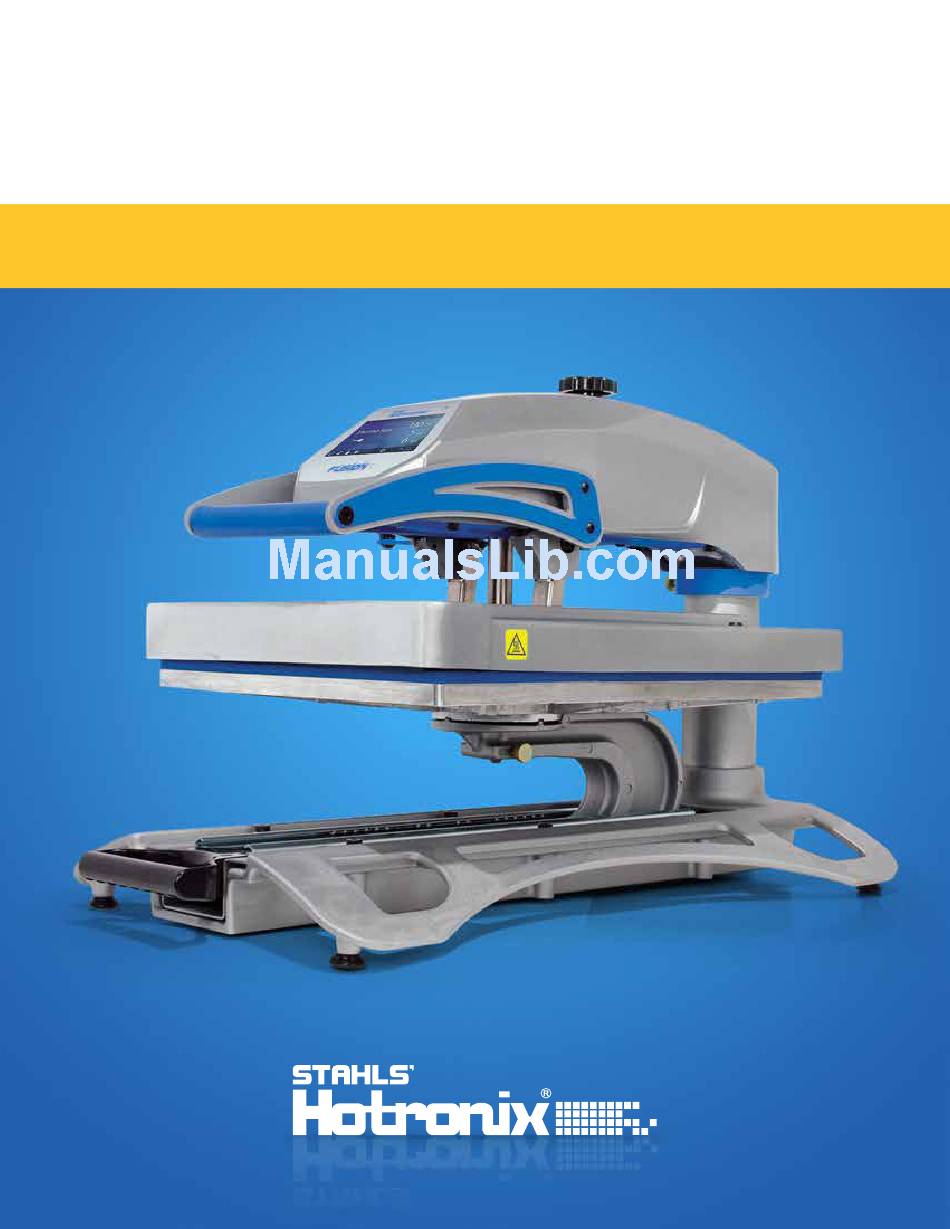

- Page 1 FUSION IQ ™ OPERATOR’S MANUAL...
-
Page 2: Safety Instructions
HOTRONIX ® Safety Instructions FUSION IQ ™ When using your heat press, basic precautions should always be followed, including the following: 1. Read all instructions. 2. Use heat press only for its intended use. 3. To reduce the risk of electric shock, do not immerse the heat press in water or other liquids. -
Page 3: Table Of Contents
Table Of Contents Safety Instructions Machine View Operating Instructions Connecting the System Start Up/Shut Down Home Screen Prepare to Print Touch Screen Guide 8-11 Setup Menu Password Setup Preset Setup Date & Time Setup Display Setup Auto On & Off Setup System Setup Calibration Updating Software... -
Page 4: Machine View
HOTRONIX ® Machine View FUSION IQ ™ Over-the-Center Pressure Adjustment Knob Touch Screen Swing Handle IEC Inlet Heat Platen Circuit Breaker Power ON/OFF Switch Lift Handle Lower Platen Swing Lock Pull Handle Base SERVICE HOTLINE: 800.727.8520... -
Page 5: Operating Instructions
220-volt operation. Start Up/Shut Down To start up your heat press: Flip the power switch ON (2.1). A splash screen displaying the Hotronix logo and current software version is shown for ® several seconds. To turn your heat press off, flip the power switch OFF. -
Page 6: Home Screen
HOTRONIX ® Operating Instructions FUSION IQ ™ Home Screen Status bar provides Displays the selected helpful information preset. Touch and regarding heat press. hold to see application settings. NOTE: Holding down material Displays the current application name will display targeted temperature and time. -
Page 7: Prepare To Print
Swing or push the platen back into position and lower platen to heat apply. The Home Screen will initiate a count down and signal when to lift the platen off the garment. Swing or pull the heat platen and proceed according to the application instructions. WWW.HOTRONIX.COM... -
Page 8: Touch Screen Guide
HOTRONIX ® Touch Screen Guide FUSION IQ ™ Setup Menu Touch the Settings icon on the Home Screen (5.1) to configure your heat press. Managers can access all setup options, while Users can access a limited set (5.2). • Managers default password: M... -
Page 9: Preset Setup
Name your preset and enter desired temperature, time, and pressure. When creating a new preset, the current Home Screen application settings are selected automatically (7.6). Touch the empty circled numbers to set multiple preset stages for pretreatment or multi-step applications (7.7). WWW.HOTRONIX.COM... -
Page 10: Date & Time Setup
HOTRONIX ® Touch Screen Guide FUSION IQ ™ Date & Time Setup Touch the Settings icon on the Home Screen. • Touch Date & Time, information displays on right of screen (8.1). • Touch up/down arrows to select time zone. -
Page 11: Calibration
• Touch Downloaded Update File on right of screen, then touch Check Mark icon on taskbar to start installation. NOTE: If a power failure occurs during installation, the heat press will attempt to install the previous software version. WWW.HOTRONIX.COM... -
Page 12: Connecting To The Iq Portal
Portal FUSION IQ ™ ™ Create Your Account • Using a phone or computer, visit iq.hotronix.com to create an account (13.1). • Enter your name, email, and password. • Click on the confirmation link in the email you receive. •... -
Page 13: Electrical Schematic
230/240V Version Strain TRIAC Gauge RTD Probe Ground to Frame Proximity Switch 1800W Heater - 230/240V - 50/60Hz IEC Inlet Black 14ga Ground to Frame White 14ga Circuit Circuit Breaker Breaker Ground ON/OFF to Frame Switch Black 14ga White 14ga WWW.HOTRONIX.COM... -
Page 14: Replacement Parts List
Fusion Overlay NextGen 1-2198-1 Steel Pin, 1/2" x 4.38" 2-1055-27 Fusion Control Housing 1-2197 Hub Cap 1/2" 1-1107-1 Fusion IQ Power Board — Bushing, Flange 1in 1-2282 Fusion IQ Power Bracket 1-2473 Screw, Machine #8-32 x 3/4" 3-1011-155 Screw, Sheet Metal #6 x 1/2"... - Page 15 Parts Location Guide WWW.HOTRONIX.COM...
-
Page 16: Contact
HOTRONIX ® CONTACT US FUSION IQ ™ Stahls’ Hotronix ® One Industrial Park Carmichaels, PA 15320 U.S.A. Technical Support 800.727.8520 Speak with a representative 24 hours a day, 7 days a week, 365 days a year. Customer Service 800.727.8520 Monday - Friday Replacement Parts 800.727.8520...
