Summary of Contents for Hotronix 360 IQ HAT PRESS
- Page 1 360 IQ HAT PRESS ™ OPERATOR’S MANUAL...
-
Page 2: Safety Instructions
HOTRONIX ® Safety Instructions Safety Instructions 360 IQ HAT PRESS ™ When using your heat press, basic precautions should always When using your heat press, basic precautions should always be followed, including the following: be followed, including the following: 1. Read all instructions. -
Page 3: Table Of Contents
Table Of Contents Safety Instructions Machine View Operating Instructions Connecting the System Start Up/Shut Down Home Screen Prepare to Print Touch Screen Guide 8-11 Setup Menu Password Setup Preset Setup Date & Time Setup Display Setup Auto On & Off Setup System Setup Calibration Updating Software... -
Page 4: Machine View

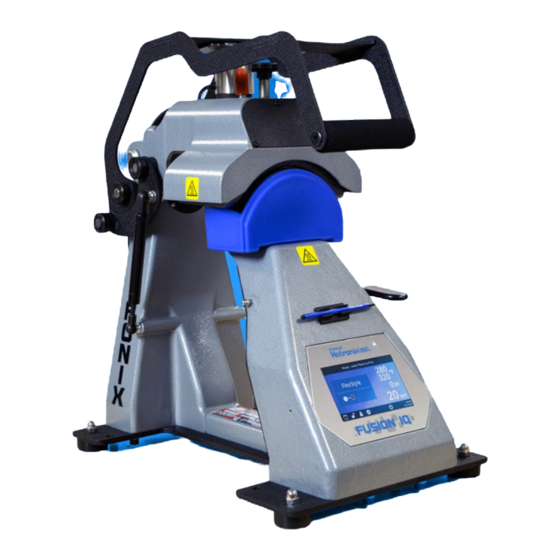

HOTRONIX ® Machine View Machine View 360 IQ HAT PRESS ™ Lift Handle Upper Heater Lower Heater with Thermal Conductive Pad Pressure Adjustment Knob Cap Hold- Down Lever Electromagnet Touch Screen Shock ON/OFF Switch Base Cap Hold-Down Mechanism Circuit Breaker... -
Page 5: Operating Instructions
Locate the packaging bolt on top of press and remove prior to turning on or operating (2.1). Flip the power switch ON (2.2). A splash screen displaying the Hotronix ® logo and current software version is shown for several seconds. -
Page 6: Home Screen
HOTRONIX ® Operating Instructions Operating Instructions 360 IQ HAT PRESS ™ Home Screen Status bar provides Displays current top helpful information heater temperature. regarding heat press. Displays current bottom heater temperature. Touch and edit your favorite presets. Displays current application pressure and time. -
Page 7: Prepare To Print
Prepare to Print Before heat applying, set the target settings for the selected transfer material by: • Selecting a Preset (7.1), or • Manually entering target temperature, time, and pressure. Temperature and time are controlled automatically. Pressure must be set manually: •... -
Page 8: Touch Screen Guide
HOTRONIX ® Touch Screen Guide Touch Screen Guide 360 IQ HAT PRESS ™ Setup Menu Touch the Settings icon on the Home Screen (5.1) to configure your heat press. Managers can access all setup options, while Users can access a limited set (5.2). -
Page 9: Preset Setup
Preset Setup Touch the Columns icon (7.1) to select from a list of saved presets (7.2). Touch arrow keys on the taskbar to scroll through a long list of presets (7.3). Touch a preset to select a material. Touch the Pencil icon (7.4) to enter edit mode, then touch preset name to edit settings. -
Page 10: Date & Time Setup
HOTRONIX ® Touch Screen Guide Touch Screen Guide 360 IQ HAT PRESS ™ Date & Time Setup Touch the Settings icon on the Home Screen. • Touch Date & Time, information displays on right of screen (8.1). • Touch up/down arrows to select time zone. -
Page 11: Calibration
Calibration (Manager-Level Only) Your heat press comes pre-calibrated from the factory. Calibration is only required after sensor or controller replacement. Pressure is periodically self-calibrated. Incorrect calibration can result in poor print results or damage to your heat press which is not covered by warranty. Your heat press has a temperature calibration function (12.1). -
Page 12: Connect To The Iq ® Portal
HAT PRESS ® ® ™ Create Your Account • Using a phone or computer, visit iq.hotronix.com to create an account (13.1). • Enter your name, email, and password. • Click on the confirmation link in the email you receive. •... -
Page 13: Electrical Schematic
Electrical Schematic Electrical Schematic Upper Heater Upper Heater 120V 50/60Hz 230/240V 50/60Hz TRIAC RTD Probe RTD Probe Strain Frame Gauge 500ºF 500ºF 500W 500W 260ºC 260ºC Proximity Switch PROX1 Electromagnet EMAG HTR2 PROBE2 Lower Heater Lower Heater 120V 50/60Hz 230/240V 50/60Hz RTD Probe RTD Probe Frame... -
Page 14: Replacement Parts List
HOTRONIX ® Replacement Parts List 360 IQ HAT PRESS ™ PART# DESCRIPTION QTY. PART# DESCRIPTION QTY. 4-1183 Heater Arm, 360 IQ Hat Washer, #8 Stainless 2-1055-11 Steel Pin, 1/2” x 5-9/16” 1-2612 Silicone Pad, 1/4” x 1” Self-Adhesive 1-1107-1 Hub Cap 1/2”... - Page 15 Parts Location Guide Parts Location Guide...
