Network Settings - Visual Tools AX-TV User Manual

3.3. Network settings

You need to configure the network parameters to connect to the cameras. Choose the connection you
prefer, either Ethernet or WIFI, and make sure that the corresponding checkbox is selected, or the
communications will not be active.
Ethernet Settings

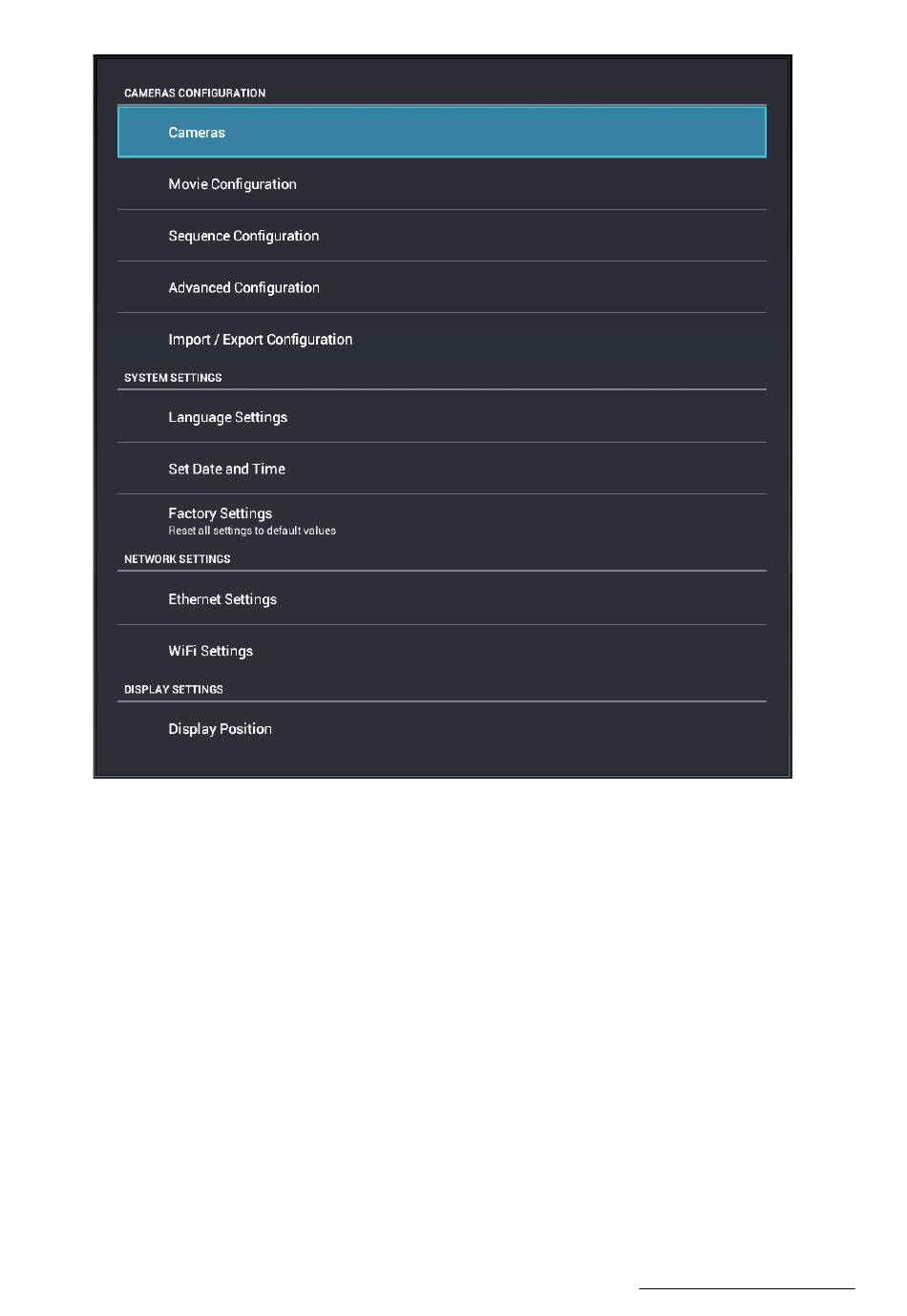

Menu >> Settings >> Network settings >> Ethernet settings
Connect the local network cable. The DHCP protocol automatically configures the network parameters. If
you want to edit the network parameters select the Ethernet settings option and edit the parameters you
need.
Note: the MAC address that appears in the lower part of the unit corresponds to the Ethernet connection.
Wi-Fi Settings
Menu >> Settings >> Network settings >> WIFI settings
Select the WIFI network and enter the corresponding password. When the connection is active you will
see a Connected label under the selected name's network.
User Manual - 7
