Aspect: The aspect-ratio is set in automatic by default. This way the AX-TV chooses the best resolution
for the camera in every moment depending on the viewer size.
Name: You can change the camera name here. To show this name on live video, mark the check-box
Show Name or press the button [.com] on the remote control when the AX-TV is in operation.
Movie: You can select one of the AX-TV channels to show a commercial video instead of a live camera.
The configuration of the movie is explained in a later chapter.
Codec: Choose which video format to request the camera: JPEG or H264.
Onvif: Check this option to connect the camera using the Onvif protocols. Otherwise the Axis protocols
will be used.
Modify Profile: Check this option to let the AX-TV modify the Onvif profile in the camera to optimize it to
the visualization needs. Otherwise the video stream is used as it is configured in the camera. By default,
this option is checked, and the AX-TV is allowed to modify the Onvif profile video. Uncheck it if for
example the camera only has one configurable profile and it is being used by a video recorder.
Once finished press the [Exit ] button and wait until the connection to the cameras is checked, and the
video is shown on screen. If an error occurs check the camera configuration.
3.4.2. Cameras configuration: Adding cameras with auto-detection
Select Autodetect Axis Cameras or Autodetect Onvif Cameras and you will get a list of the cameras
detected in your local network.
Note: if a camera is not installed in the same network segment of the AX-TV, or it is not detected for any
other reason, you can always add it manually as explained in the previous title.

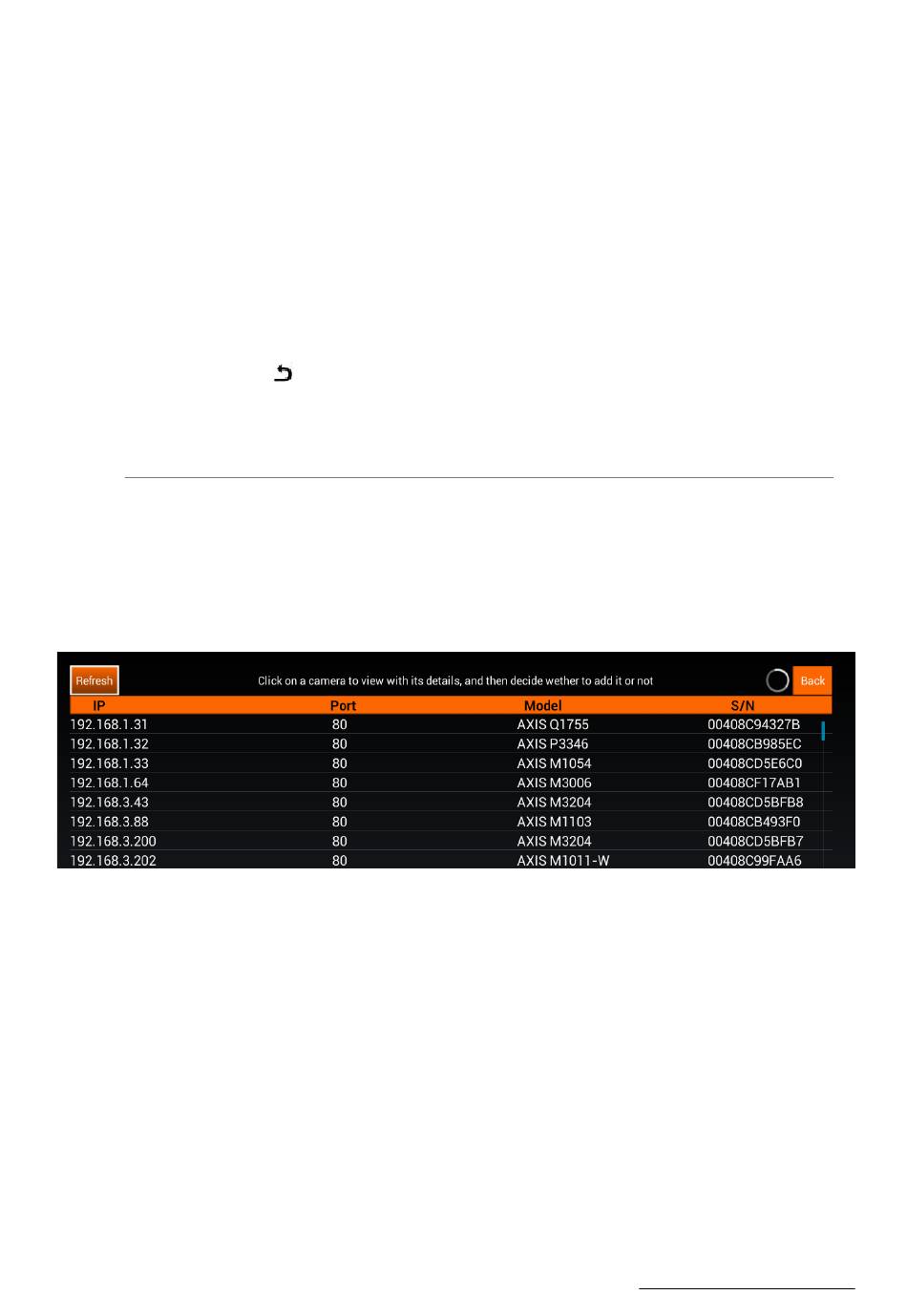

Once the cameras have been detected the result is shown as follows:
If you think there haven't been detected all the cameras, click on Refresh to launch a new autodetection.
Select one camera to display its details:
