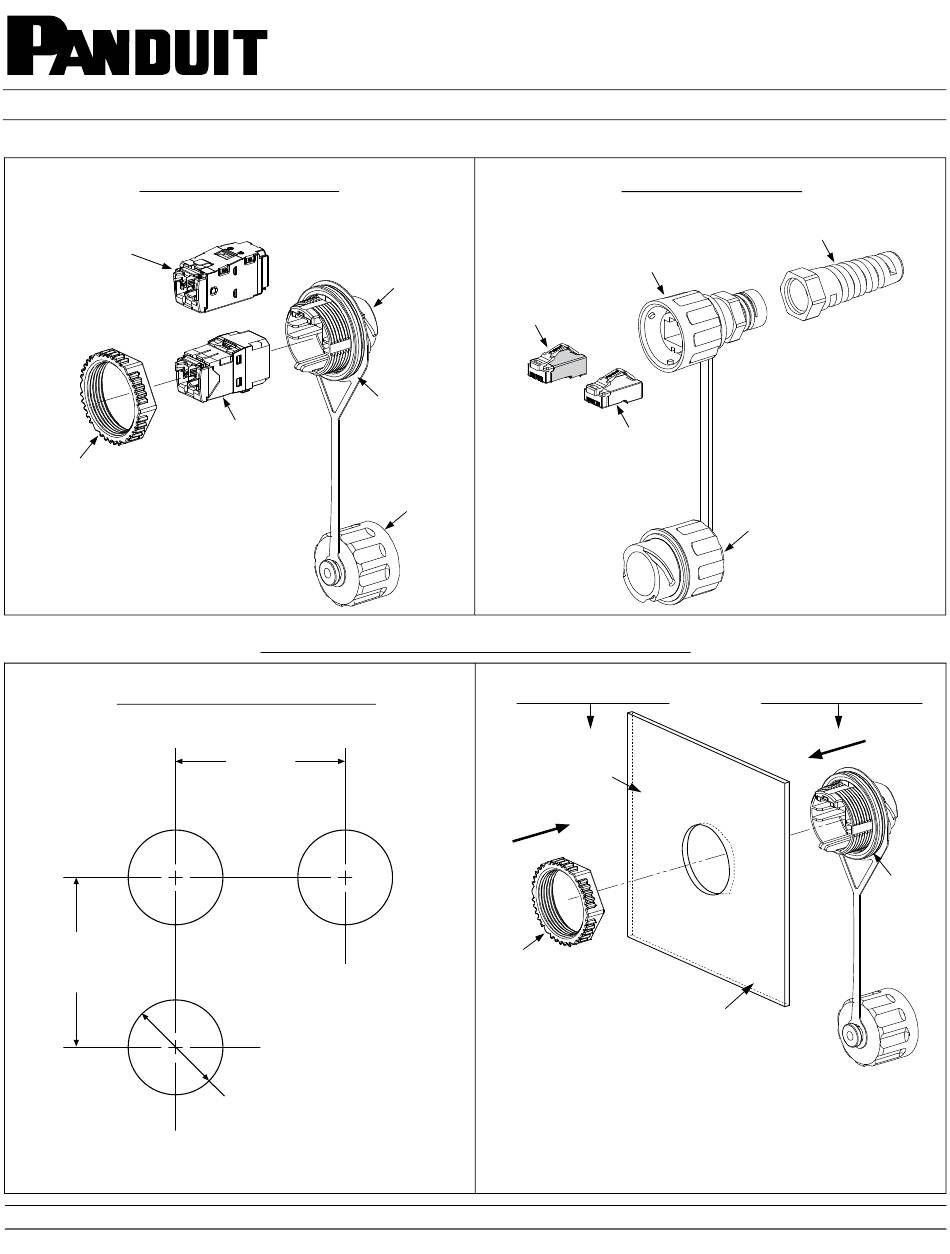

Panduit IAEBH5E Installation Instructions

© Panduit Corp. 2016
Note: Bulkhead combination must be used on a flat surface of a NEMA Type 12 Enclosure to maintain rating.

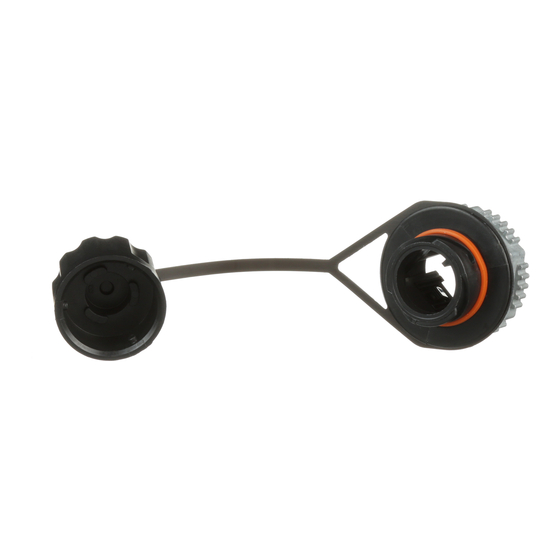

Industrial Jack
IAEBH5E / IAEBH6 / IAEBH6X / IAEBH5ES / IAEBH6S/
IAEBH6XS/ IAEBH (jack module not included)
Shielded
Jack Module
(For IAEBH5ES,
IAEBH6S,
and IAEBH6XS)
Nut
1
Bulkhead Opening Requirements
1-7/8"
(47.6mm)
For Technical Support: www.panduit.com/resources/install_maintain.asp
IndustrialNet TX Bulkhead Connectors
Part Numbers: IAEBH5E, IAEBH5ES, IAEBH6, IAEBH6S, IAEBH,
INSTALLATION INSTRUCTIONS
Bulkhead w/
Face Seal
UTP
Jack Module
(For IAEBH5E,
IAEBH6
and IAEBH6X)
Installation for Industrial Jack Module
1-7/8"
(47.6mm)
Ø 1-13/64"
(30.6mm)
{not to scale}
MPSI588T, MPI588T, IAEBH6XS, IAEBH6X
Shielded
Modular Plug
(For MPSI588T)
Bulkhead
Seal
Tether
w/ Cap
2
Inside of Enclosure
Enclosure Wall
or Outlet Plate
Nut
Min. thickness: 0.035" (20 gauge)
Max. thickness: 0.135" (10 gauge)
Insert Bulkhead into prepared opening from outside of enclosure.
While holding Bulkhead in place, secure with Nut on inside of
enclosure. Hand turn Nut 4-1/4 to 5 full turns. Be careful not to
tighten to the point the Bulkhead Seal is over compressed and
displaced from the enclosure wall and the Bulkhead.
Note: If using wrench, flats on Nut should be on the outside.
Page 1 of 4
Industrial Plug
MPSI588T / MPI588T
Plug Holder
UTP
Modular Plug
(For MPI588T)
Tether w/ Cap
Outside of Enclosure
PN367D
Flex Tail
(Optional)
Bulkhead
Seal
