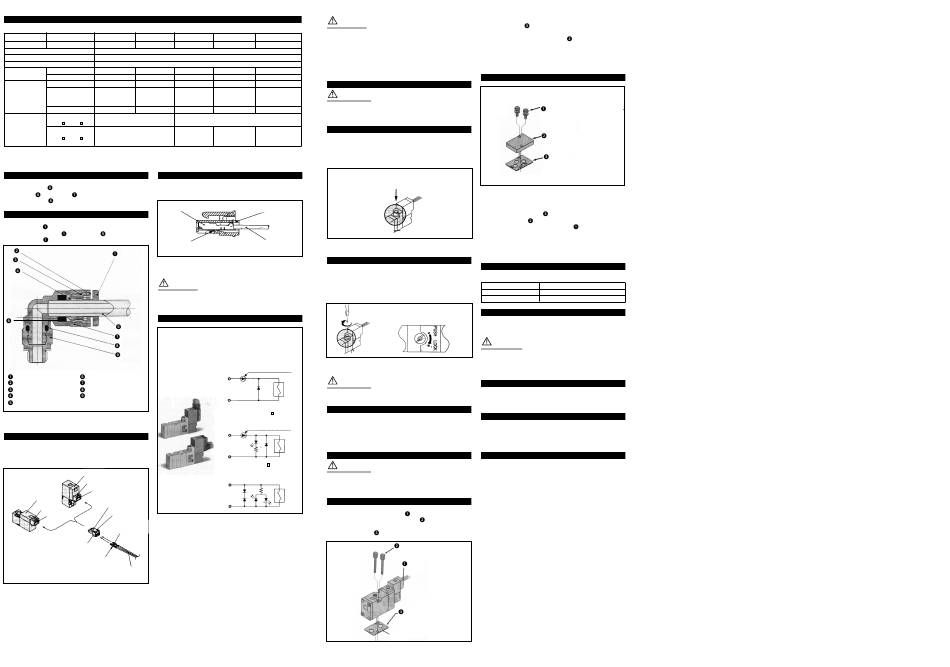

Manifold Specifications
Type For internal pilot Type 20 Type 21
For external pilot - Type 21R
Manifold type Single base type /B mount
P(SUP) · R(EXH) type Common SUP · Common EXH
Valve stations 2-20 stations
A port Location Valve Valve
specifications Direction Top Top
P,R port Rc(PT) Rc(PT)
1 / 1 /
8 4
Port size A port Rc(PT) Rc(PT)
1 / 1 /
8 8
X port Note 1) - M3x0.8
Body ported type
Note 2)
10.6 (0.59)
Valve effective SYJ7 2/SYJ7 2R
area
Base mounted type
- 10.2 (0.57)
mm 2 (Cv)
SYJ7 4/SYJ7 4R
Note 1: Only for external pilot
Note 2: Value when used on a manifold
Tube connections - push-in fittings (Fig 4) Disconnection of plug connector (Fig 6)
1 Ensure the tube is cut square. 1 Press the lever against the connector and pull the connector away
2 Push tube into the body until tube stops. from the solenoid.
3 Lightly pull tube back to ensure connection.
Socket
Tube disconnection (Fig 4)
1 Push collet in .
2 While holding collet in withdraw tube .
3 Release collet .
Hook
Fig 6
CAUTION
Do not exert excessive force on the wires as this may cause contact
failure.
Wiring specifications (Fig 7)
Surge voltage suppressor
(For DC)
Grommet, L and M type plug connector
Collet Tube seal
Guide Body
Collar O-ring
Tube retainer Stud
Tube
Fig 4
Connection of plug connector (Fig 5)
1 Push the connector in a straight line onto the pins of the solenoid
ensuring that the lip of the lever is securely positioned in the
groove of the solenoid cover.
Cover
Groove
Pin
Cover
Lever
Groove
DC indicator
Pin
Fig 7
Socket
DXT170-71-1
Ensure correct connection of the lead wires to (+) (positive) and
(-) (negative) indications on the connector. For non-polarity type the
lead wires can be connected to either one.
Connector
For DC voltages other than 12, 24 incorrect wiring will damage the
housing
surge voltage suppressor circuit. (Incorrect polarity will cause
Hook
malfunction).
Lead wire
Solenoids whose lead wires have been pre-wired are red positive and
black negative.
Fig 5
CAUTION
Leakage voltage
Type 40 Type 41 Type 42 When a C-R device (surge voltage suppressor) is used for the
- Type 41R Type 42R protection of the switching device, be aware that leakage voltage will
be increased by passing this leakage through a C-R device.
Suppress residual leakage voltage as follows:
Base Base Base DC coil: 3% or less of rated voltage
Bottom Bottom Side
Rc(PT) Rc(PT) Rc(PT) Solenoid manual override (Fig 8 and Fig 9)
1 / 1 / 1 /
8 4 4
Rc(PT)
1 /
8
WARNING
Rc(PT) Rc(PT) C6 (ø6 one-touch fitting)
1 / 1 /
8 8
C8 (ø8 one-touch fitting)
- M5x0.8 M5x0.8 Exercise extreme CAUTION when operating solenoid manual overrides
as connected equipment will commence operation.
-
1 / : 9.2 (0.51) Push non-locking type (Fig 8)
8
10.2 (0.57)
C6: 8.8 (0.49)
C8: 10 (0.56) 1 Push down on the manual override button (Fig 8) until it stops ON.
2 Hold this position whilst carrying out function checks.
3 Release the manual override button and the override will re-set to
the OFF position.
Non-locking push type
(Standard type)
Push down in the direction of the arrow.
Connector housing
Lead wire
Fig 8
Push locking type (Fig 9)
1 Push down and turn the manual override button (Fig 9) clockwise
using a small slotted screwdriver until the slot is opposite the
locked position.
2 Withdraw the screwdriver.
With surge voltage suppressor
Diode to prevent
Fig 9
reverse connection
Red (+)
WARNING
Coil
In this position the manual override is mechanically locked ON.
Black (-)
Indicator light and surge
Unlocking (Fig 9)
voltage suppressor ( Z)
Diode to prevent
1 Insert screwdriver into the override slot, push down and turn anti-
reverse connection
clockwise until the slot is opposite the unlock position.
Red (+)
2 Remove the screwdriver and the manual override will re-set to the
OFF position.
Coil
Black (-)
Maintenance
Non polarity type ( U)
WARNING
(12V, 24VDC only)
Before carrying out any form of maintenance ensure all air and power
(-) (+)
supplies are isolated.
Coil
Removing a valve from the base (Fig 10)
(+) (-)
1 Disconnect the electrical connector
2 Remove the valve holding down screws
3 Lift off the valve from the base.
4 Retain the gasket
Fig 10
Refitting a valve to a base
1 Refit the gasket (Fig 10) ensuring correct orientation.
2 Replace the valve.
3 Refit the valve holding down screws
4 Torque the screws to the following figures:
SYJ300 0.12 N-m {1.2 kgf/cm}
SYJ500 0.45 N-m { 4.5 kgf/cm}
SYJ700 0.8 N-m { 8.0 kgf/cm}
Fitting blanking plate (Fig 11)
Blanking plate
Gasket
Fig 11
1 Remove valve as shown above (Fig 10).
2 Fit blanking plate gasket (Fig 11) .
3 Fit blanking plate Fig 11).
4 Fit blanking plate holding down screws
5 Torque the screws to the following figures:
SYJ300 0.12 N-m { 1.2 kgf/cm}
SYJ500 0.45 N-m { 4.5 kgf/cm}
SYJ700 0.8 N-m {8.0 kgf/cm}
Piping
Clamping torque
Thread Correct clamping torque N-m (kgf-cm)
Rc(PT)1/8
Rc(PT)1/4
Lubrication
The valve has been lubricated for life at manufacture and requires no
additional lubrication.
CAUTION
However, if a lubricant is to be used, a turbine oil type #1 (ISO VG32)
should be used. If a lubricant is used, continuous lubrication must be
carried out, as the original lubricant will be washed away.
Energisation time
The double solenoid valve must be energised for at least 0.05 seconds
to ensure proper operation.Low
Low temperature application
May be used down to -10° if the air is sufficiently free of moisture.
Please use an appropriate dryer to ensure dry air preventing the valve
from freezing.
Energising in a long run
For use of long run energising, its specifications should be consulted.
