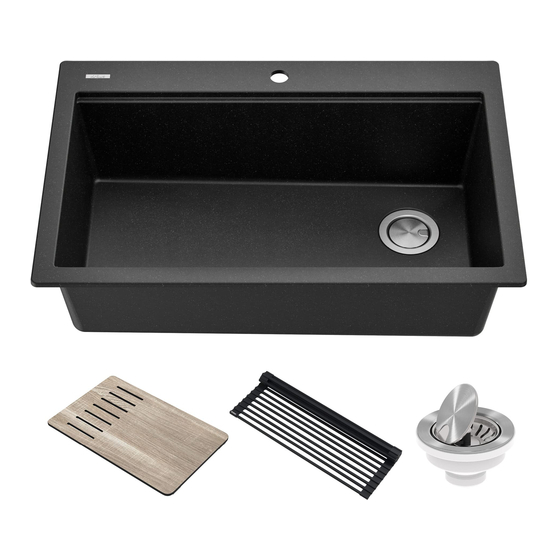

Kraus Ripiano KGTW2-33 Installation Manual
Top mount kitchen sinks
Hide thumbs
Also See for Ripiano KGTW2-33:
- Installation manual (14 pages) ,
- Installation manual (14 pages) ,
- Installation manual (16 pages)
Related Manuals for Kraus Ripiano KGTW2-33
Summary of Contents for Kraus Ripiano KGTW2-33
- Page 1 INSTALLATION MANUAL Ripiano Series Top Mount Kitchen Sinks KGTW1-33 / KGTW2-33 / KGTW12-33 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2020 Kraus USA Plumbing LLC I REV. September 15, 2021...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com...
- Page 3 Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.
-
Page 4: Tools You Will Need
Silicone Adhesive Jig Saw Tape Measure Phillips Screwdriver Pencil Masking Tape Hole Saw NOTE: Specialized tools may be necessary to install Kraus Granite Kitchen sinks with countertop materials other than wood, marble or granite. Parts List KGTW1-33 · Cut-Out Template ·... -
Page 5: Hardware Included
Hardware (Included) Kit for Drop-In Installation Important · Instructions may vary depending on countertop material. Read all instructions carefully, and ensure that counters are compatible with sink installation before proceeding. · Follow the plumber’s code and builder’s code effective in your area. ·... - Page 6 Dimensions Ø 1 3/8" Ø 1 3/8" 3" 3" 15 1/8" 15 1/8" (35mm) (35mm) (76.2mm) (76.2mm) (380.9mm) (380.9mm) 5 1/4" 5 1/4" R1/4" R1/4" (6mm) (6mm) (133.4mm) (133.4mm) 30" 30" (761.9mm) (761.9mm) 33" 33" (838.1mm) (838.1mm) 1 1/2" 1 1/2" (38.2mm) (38.2mm) 5/8"...
- Page 7 1. Trace Opening · Locate the drop-in template in the box. · Cut carefully along the dotted lines. Keep the inside portion of the template. It contains important information concerning care and maintenance for your new sink. · Place the template on the counter, in the location where you will be installing the sink. When placing the template, note the location of cabinet doors and panels to ensure that they are compatible with sink installation.
- Page 8 2. Cut Opening · Using the drill, make a small starting hole of about 1/2” on the inside of the cutting line. · Drill a second time in the same hole with a larger bit to enlarge the hole so that the jigsaw can be inserted properly.
- Page 9 3. Add Additional Faucet Hole (Optional) · Determine the location of the faucet. · Place the sink upside down on a suitable flat surface. · Using the 35mm (1 3/8”) diamond hole saw at high power (1500tr. per break through in the desired location.
- Page 10 5. Install Sink · Clean and dry the surface around the opening of the sink. · Verify that the sink fits correctly in the opening. The edge of the sink must sit on the counter. · Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the sink.
- Page 11 5. Install Sink SINK SILICONE BASED SEALANT SINK COUNTER...
-
Page 12: Install Drain
6. Install Drain Insert the metal strainer into the rubber seal, and then into the drain hole. · · Insert the rubber gasket and the main drain body underneath the sink. · Using the screw, tighten the main drain body and the metal strainer into place. ·... -
Page 13: Maintenance
Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance If you are a homeowner please contact a Kraus If you are an Authorized Partner please contact a Customer Service Representative at:... - Page 14 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 15 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
