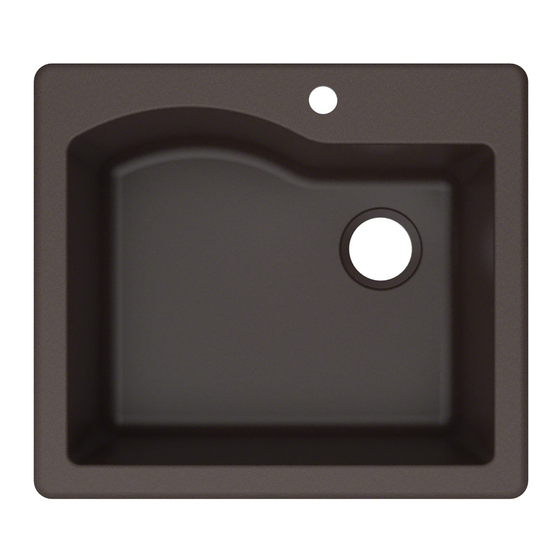

Kraus Quarza KGD-441 Installation Manual
Granite kitchen sinks
Hide thumbs
Also See for Quarza KGD-441:
- Installation manual (20 pages) ,
- Installation manual (18 pages)
Subscribe to Our Youtube Channel
Related Manuals for Kraus Quarza KGD-441
Summary of Contents for Kraus Quarza KGD-441
- Page 1 INSTALLATION MANUAL Granite Kitchen Sinks KGD-441 / KGD-442 www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. October 26, 2020...
- Page 2 Congratulations on the purchase of your new Kraus plumbing fixture! Please keep the box and packaging materials until your product is completely installed. If you have any questions, require technical assistance or have any problems with your product: STOP DO NOT RETURN TO STORE Please contact our Customer Service Team 1-800-775-0703 / customerservice@kraususa.com /...
- Page 3 Toll-Free: 800-775-0703 or customerservice@kraususa.com The step-by-step guidelines in the installation instructions are a general reference for installing a Kraus sink. Should there be any discrepancies, Kraus cannot be held liable. It is recommended to install all Kraus products by hiring a licensed professional.
-
Page 4: Tools You Will Need
Jig Saw Tape Measure Phillips Screwdriver Pencil Masking Tape Hole Saw NOTE: Specialized tools may be necessary to install Kraus Granite Kitchen sinks with countertop materials other than wood, marble or granite. Parts List · Cut-Out Template Mounting Hardware ·... -
Page 5: Hardware Included
Hardware (Included) Kit for Undermount Kit for Drop-In Installation Installation Important Instructions may vary depending on countertop material. Read all instructions · carefully, and ensure that counters are compatible with sink installation before proceeding. · Follow the plumber’s code and builder’s code effective in your area. ·... - Page 6 Dimensions R3" Ø 1 1/2" R3/4" R1" (76mm) (19mm) (37mm) (24mm) 3 1/2" (90mm) 7" (178mm) R5/8" (16mm) 21 1/2" (544mm) 25" (635mm) Model #: KGD-441 Sink Dimensions: 25” x 22” x 9 1/8” Min Cabinet Size: 33” R1 3/8" R3/4"...
- Page 7 Option A: DROP-IN INSTALLATION 1. Trace Opening · Locate the drop-in template in the box. Cut carefully along the dotted lines. Keep the inside portion of the template. It contains important · information concerning care and maintenance for your new sink. ·...
- Page 8 2. Cut Opening · Using the drill, make a small starting hole of about 1/2” on the inside of the cutting line. · Drill a second time in the same hole with a larger bit to enlarge the hole so that the jigsaw can be inserted properly.
- Page 9 3. Add Additional Faucet Hole (Optional) · Determine the location of the faucet. · Place the sink upside down on a suitable flat surface. · Using the 32mm (1 1/4”) diamond hole saw at high power (1500tr. per break through in the desired location.
- Page 10 4. Install Sink · Clean and dry the surface around the opening of the sink. · Verify that the sink fits correctly in the opening. The edge of the sink must sit on the counter. · Turn the unit upside down to apply sealant. Apply silicone-based sealant (not included) underneath the edge of the sink.
- Page 11 Option B: UNDERMOUNT INSTALLATION 1. Trace Opening · Locate the undermount template in the box. Cut carefully along the dotted lines. Keep the inside portion of the template. It contains important · information concerning care and maintenance for your new sink. ·...
- Page 12 2. Cut Opening · Using the drill, make a small starting hole of about 1/2” on the inside of the cutting line. Drill a second time in the same hole with a larger bit to enlarge the hole so that the jigsaw can be ·...
- Page 13 3. Add Additional Faucet Hole (Optional) · Determine the location of the faucet. · Place the sink upside down on a suitable flat surface. · Using the 32mm (1 1/4”) diamond hole saw at high power (1500tr. per break through in the desired location.
- Page 14 4. Install Sink · Turn the sink upside down. Align the sink with the cutting line on the counter. · Using a pencil, mark 10 spots around the frame at a distance of about 1/4” (6.4mm) from the edge of the sink. ·...
-
Page 15: Hexagon Screw
Do not leave sharp objects on the surface of the sink for an extended period of time. Do not use abrasive cleaning products, sanding tools, steel wool or bleaching products. Download the Kraus Care & Maintenance Guide at: http://www.kraususa.com/maintenance... - Page 16 Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original owner or end-user, and is not transferable to a subsequent owner.
- Page 17 12 Harbor Park Drive Port Washington, NY 11050 Toll-free 800-775-0703 Customerservice@kraususa.com via text message 631-212-0703 If you are a plumbing contractor or trade professional please contact a Kraus Pro Representative at: Kraus USA, Inc. 12 Harbor Park Drive Port Washington, NY 11050 516-801-8955 Proservice@kraususa.com...
- Page 18 IMPORTANT Register Your Kraus Product Activate Your Warranty Access Premium Customer Support Get Product Information REGISTER TODAY http://www.kraususa.com/registration www.kraususa.com...
