Tutorial 12: HEVC analysis

Procedure

MTS4EAV7 HEVC / AVC Video and Compressed Audio Analyzer Tutorials
This tutorial requires software version 7.0 or higher and covers the following:
HEVC stream analysis
Using HEVC tooltips
Using predicted, decoded and residual images
Using the CU size distribution graph
Using the bits overlay to check for coding efficiency
This tutorial requires that you have completed the previous tutorials and that
you can:
Open example streams.
Play, stop, step forward, and rewind a video.
Use and interpret alert pop-up messages.
Use the icons and controls on the buffer analysis graphical display.
1. To load the tutorial, click File > Example files > HEVC Byte Streams>
Forbidden City.
2. As the stream is recognized as H.265/HEVC and opened in the Video View,
the HEVC tooltips are enabled.

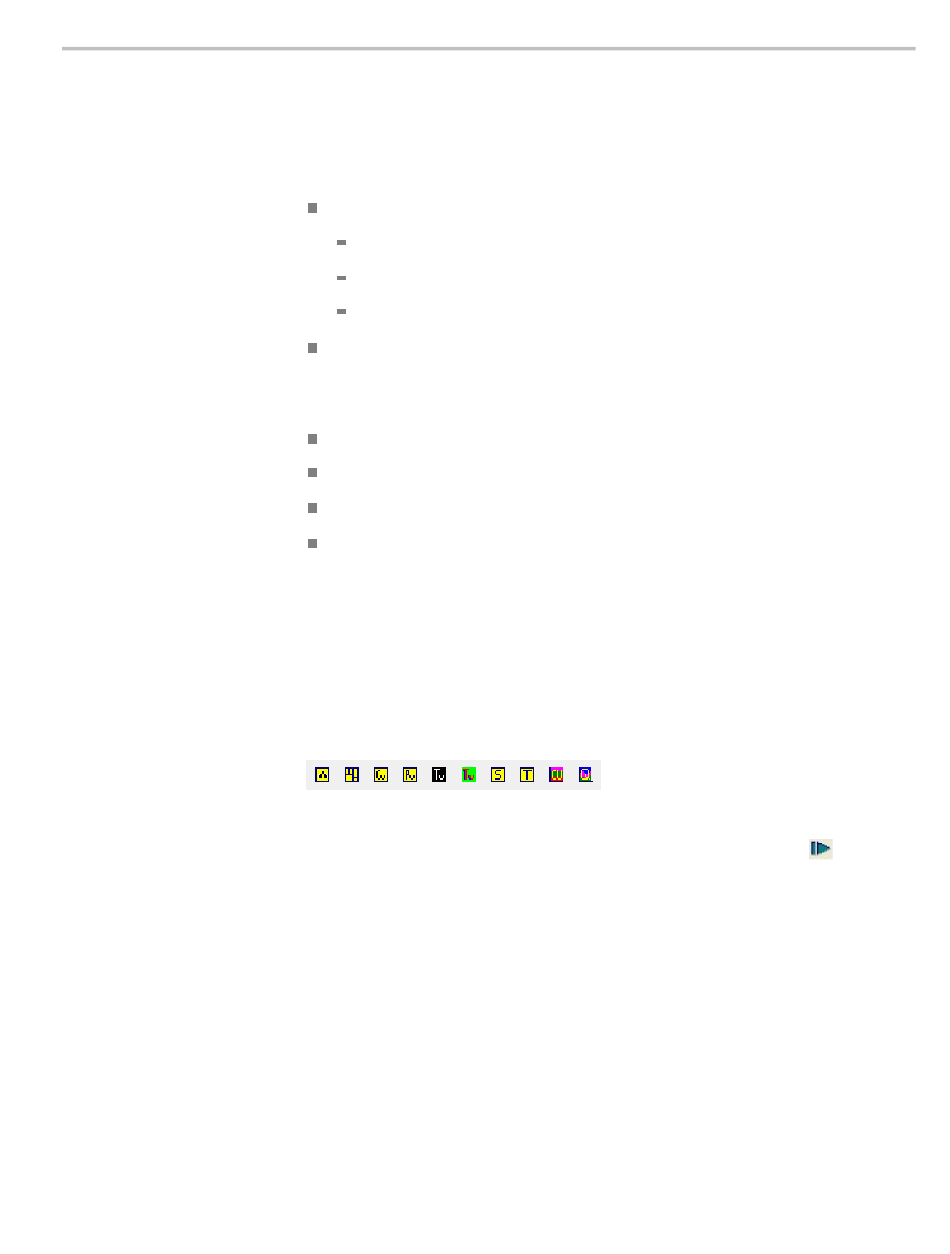

Figure 103: HEVC tooltips
3. Click the Pause the stream or step forward on frame button
the HEVC analysis frame by frame.
4. Move the mouse over the Video View and click on any portion of the video to
select a Coding Tree Unit (CTU). The selected CTU is shown with an outline.
