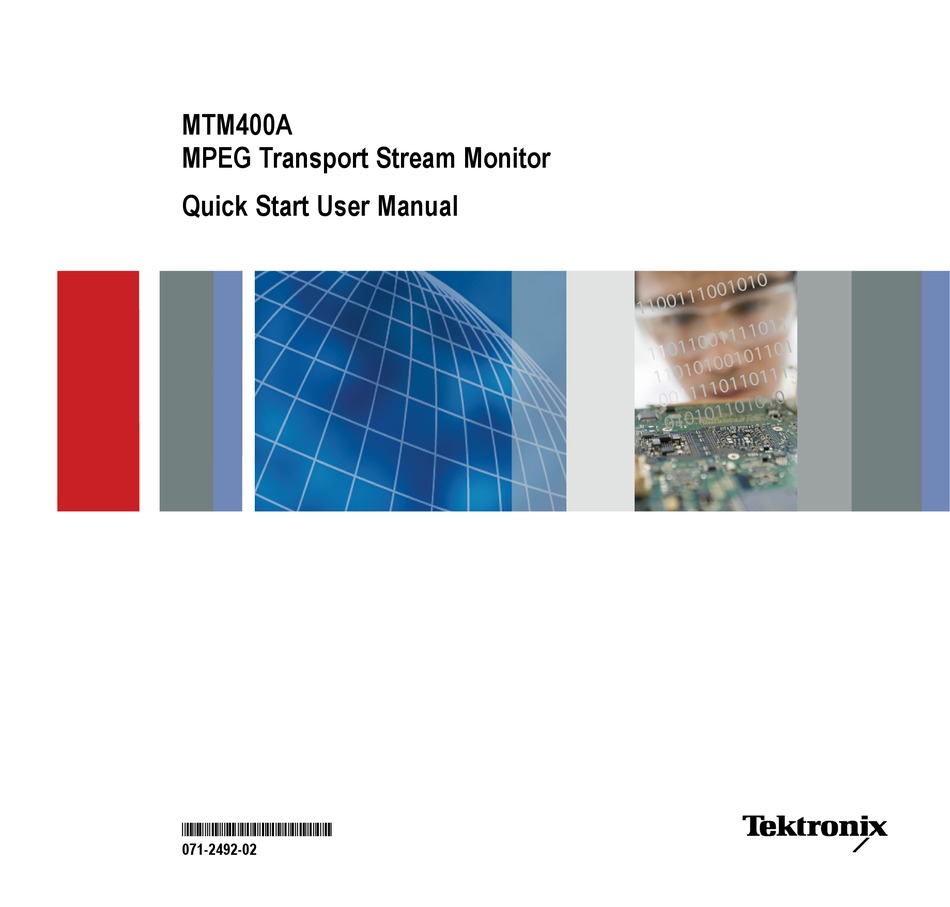

MTM400A
MPEG Transport Stream Monitor
ZZZ
Quick Start User Manual
*P071249202*
071-2492-02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTM400A and is the answer not in the manual?

Questions and answers

Summary of Contents for Tektronix MTM400A

  • Page 1 MTM400A MPEG Transport Stream Monitor Quick Start User Manual *P071249202* 071-2492-02...
  • Page 3 MTM400A MPEG Transport Stream Monitor Quick Start User Manual www.tektronix.com 071-2492-02...
  • Page 4 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
  • Page 5 Warranty Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.
  • Page 6 Warranty Tektronix warrants that the media on which this software product is furnished and the encoding of the programs on the media will be free from defects in materials and workmanship for a period of three (3) months from the date of shipment. If any such medium or encoding proves defective during the warranty period, Tektronix will provide a replacement in exchange for the defective medium.
  • Page 7 IMPORTANT READ BEFORE OPERATING EQUIPMENT This software is provided under license from Tektronix, Inc. Retention of this program for more than thirty (30) days or use of the program in any manner constitutes acceptance of the license terms. CAREFULLY READ THE ENCLOSED SOFTWARE LICENSE AGREEMENT.
  • Page 8 Tektronix or any third party from whom Tektronix may have obtained a respective licensing right if Customer fails to comply with any term or condition and such failure is not remedied within thirty (30) days after notice hereof from Tektronix or such third party.
  • Page 9 Video Test Sequences. You must indemnify, hold harmless, and defend Tektronix from and against any claims or lawsuits, including attorneys’ fees, that arise from or result from the use or distribution of Video Test Sequences as modified by You.
  • Page 11: Table Of Contents

    Upgrading the Firmware Version ....................Index MTM400A Quick Start User Manual...
  • Page 12 Table of Contents MTM400A Quick Start User Manual...
  • Page 13: General Safety Summary

    Do Not Operate in Wet/Damp Conditions. Do Not Operate in an Explosive Atmosphere. Keep Product Surfaces Clean and Dry. Provide Proper Ventilation. Refer to the manual’s installation instructions for details on installing the product so it has proper ventilation. MTM400A Quick Start User Manual...
  • Page 14 DANGER indicates an injury hazard immediately accessible as you read the marking. WARNING indicates an injury hazard not immediately accessible as you read the marking. CAUTION indicates a hazard to property including the product. The following symbol(s) may appear on the product: MTM400A Quick Start User Manual...
  • Page 15: Compliance Information

    Australia / New Zealand Declaration of Conformity – EMC Complies with the EMC provision of the Radiocommunications Act per the following standard, in accordance with ACMA: CISPR 11:2003. Radiated and Conducted Emissions, Group 1, Class A, in accordance with EN 61326-1:2006. MTM400A Quick Start User Manual...
  • Page 16: Safety Compliance

    Pollution Degree 3. Conductive pollution, or dry, nonconductive pollution that becomes conductive due to condensation. These are sheltered locations where neither temperature nor humidity is controlled. The area is protected from direct sunshine, rain, or direct wind. MTM400A Quick Start User Manual...
  • Page 17 Compliance Information Pollution Degree 4. Pollution that generates persistent conductivity through conductive dust, rain, or snow. Typical outdoor locations. Pollution Degree Pollution Degree 2 (as defined in IEC 61010-1). Note: Rated for indoor use only. MTM400A Quick Start User Manual...
  • Page 18: Environmental Considerations

    This symbol indicates that this product complies with the applicable European Union requirements according to Directives 2002/96/EC and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For information about recycling options, check the Support/Service section of the Tektronix Web site (www.tektronix.com).
  • Page 19: Preface

    This manual describes the MTM400A MPEG Transport Stream Monitor, which provides a complete solution for transmission monitoring of MPEG transport streams over RF, IP, and ASI interfaces. The MTM400A monitor uses a single transport stream processor platform packaged in a 1 RU rackmount chassis to provide monitoring of a transport stream at data rates up to 155 Mbps.
  • Page 20: Applications

    Preface Applications Contribution and primary distribution Terrestrial distribution Cable headend monitoring DTH or network operator satellite uplink monitoring IPTV Edge network monitoring ASI to RF IP to RF (requires two MTM400A Units) IP to ASI MTM400A Quick Start User Manual...
  • Page 21: Documentation

    Preface Documentation Table i lists the product documentation for the MTM400A monitor and shows the location(s) where you can find the documents: printed manual, product documentation CD-ROM, or the Tektronix Web site. Table i: Product documentation Item (Tektronix part number)
  • Page 22: Firmware Upgrades

    The Sun Java RTE (run time environment) Version 1.6.0_07 must be installed on your PC for the MTM400A monitor RUI v3.1 to operate successfully. If Java is not present on the PC, an opportunity to download it is offered when the RUI is first opened.
  • Page 23: Installation

    Option Key. NOTE. Some of the installation instructions require you to use the MTM400A monitor RUI. If you are unfamiliar with the RUI, refer to the following sections in this manual before installing the instrument: Getting Acquainted with Your Instrument (See page 27.)
  • Page 24: Operating Considerations

    Power Cords. The MTM400A monitor is shipped with one of the following power cord options. Power cords for use in North America are UL listed and CSA certified. Cords for use in areas other than North America are approved by at least one authority acceptable in the country to which the product is shipped.
  • Page 25: Hardware Installation

    40 ºC. The MTM400A monitor is designed to be mounted in a standard 19-inch equipment rack: a rack-mounting kit is shipped as a standard accessory with each instrument. The chassis components of the rack slides are shipped from the factory attached to the instrument as shown in the following figure.
  • Page 26 2. After you install the rack-mounting hardware, pull the slide-out tracks out to the fully extended position. WARNING. To prevent the instrument from falling and causing personal injury and damage to the instrument, support the instrument until it is secured in the equipment rack. MTM400A Quick Start User Manual...
  • Page 27 Installation 3. Insert the rack slides on the MTM400A monitor chassis into the extended slide-out tracks. 4. Press the stop latches shown in the following figure, and then push the instrument toward the equipment rack until the latches snap into their holes.
  • Page 28 figure. Torque the screw to 10 in-lbs to so that the terminal provides good ground contact. 4. If necessary, reinstall the instrument in the equipment rack. (See page 3, Rack Mounting the MTM400A Monitor.) CAUTION.
  • Page 29 Secure the grounding strap to the equipment-rack frame at an open unused hole in the frame as close to the MTM400A monitor as possible. Torque the screw to 10 in-lbs to so that the terminal provides good ground contact.
  • Page 30 Perform the following steps to install an SFP module into the GbE interface card: CAUTION. To avoid damage to the SFP module, remove power from the MTM400A monitor before removing or inserting an SFP module. 1. Disconnect the power cord from the instrument.
  • Page 31 3. Flip down the SFP module retaining latch, and then remove the module from the instrument as shown in the following figure. 4. Install an optical port plug into the removed SFP module to protect the optical port interface. 5. Reconnect the power cord to the instrument. MTM400A Quick Start User Manual...
  • Page 32: Connecting To The Instrument

    Perform the following procedure to make electrical, signal, and network connections to the MTM400A monitor: 1. After you install the MTM400A monitor in an instrument rack, connect the power cord that was provided with the instrument to the power connector on the rear panel. Connect the power cord plug to a properly grounded electrical outlet.
  • Page 33 RF input Type F connector COFDM SFP 1000 Small Pluggable Format module RJ-45 10/100/1000 RJ-45; 10/100/1000BASE-T IEEE 802.3 ASI/SMPTE310M input BNC connector ASI/SMPTE310M output Only one optional interface card can be installed at a time. MTM400A Quick Start User Manual...
  • Page 34 Connect the ASI cable supplied with the interface card between the ASI/SMPTE310M Out connector on the interface card and the ASI In connector on the Transport Stream Processor card as shown in the following figure. c. Connect an IP signal to the interface card as follows: MTM400A Quick Start User Manual...
  • Page 35 3. Use the Interface dialog box to configure the instrument to use the installed interface card and to select which signal input to monitor. (See page 52, Configuring an RF Interface Card.) MTM400A Quick Start User Manual...
  • Page 36: Powering The Instrument On And Off

    Powering the Instrument On and Off The MTM400A monitor does not have an external power switch. To power on the instrument, connect the power cord that was provided with the instrument to the power connector on the rear panel. Connect the power cord plug to a properly grounded electrical outlet.
  • Page 37 New MTM400A monitors are shipped with the IP address set to 0.0.0.0; this is because the IP address that will be used by a customer is unknown. In this situation, the steps described below must be followed in order to associate the proper IP address with the MAC address.
  • Page 38 Installation Resetting the IP Address using the User Interface. Perform the following steps after you power on the MTM400A monitor and connect to a network that recognizes the current IP address of the monitor. The following procedure assumes you know how to start the RUI. (See page 35, Starting the RUI.) 1.
  • Page 39 Installation Resetting the IP Address by Clearing the NVRAM. If the IP address of an MTM400A monitor is unknown, you can reset the IP address to the factory default value (0.0.0.0) by resetting the battery-backed, NVRAM on the Transport Stream Processor card. When you clear the NVRAM, all configuration data is reset to the factory default values, including the IP address.
  • Page 40: Setting Up The Network

    Setting Up the Network Setting up an MTM400A monitor for use on a network requires that the instrument and the PC are powered on and attached to the same Ethernet network. They should also be attached to the same subnet, if present.
  • Page 41: Rui Platform Requirements

    Configuration screen. Contact your Network Administrator for assistance. When the IP address has been set up, if the MTM400A monitor is to be accessed from a different net or subnet, the Gateway IP address and the Subnet Mask must be set up. Contact your Network Administrator for assistance. The Gateway IP address and the Subnet Mask values are set up in the Configuration (toolbar) >...
  • Page 42: Installing Japanese Font Extensions On Your Pc

    Character Editor. The editor window will appear briefly and then exit. This action makes the appropriate changes to the registry to register eudc.tte as the system default character extension font. 6. Launch the MTM400A monitor RUI on your PC. 7. Open the Font Configuration page shown in the following figure by selecting Configuration > Preferences > Font from the toolbar.
  • Page 43 Installation 8. If necessary, set the Font Name for Log Entries and Stream Content to <<default>>. The RUI will now display private characters correctly by obtaining them from the font supplied in the eudc.tte file. MTM400A Quick Start User Manual...
  • Page 44: Video Thumbnail Support

    RUI. If thumbnail support is not installed, a message is displayed when you attempt to view thumbnails. The thumbnail support software for the MTM400A monitor is based on modified open source material. The modified code is included in the executable file, and can be copied to the client PC and inspected if required.
  • Page 45: Licensing

    Each option key is unique and is generated for a specific MTM400A monitor using the serial number and MAC address of that monitor. An option key that is generated for one monitor will not work when applied to another monitor.
  • Page 46 7. Click Close in the Upload License dialog box after the Reboot complete message appears. 8. In the Connect to MTM Device dialog box, select Administrator as the login type, enter the password, and then click Connect. MTM400A Quick Start User Manual...
  • Page 47 Installation 9. Read the Tektronix MTM400A End User License Agreement and click I Accept. 10. The RUI will now appear. MTM400A Quick Start User Manual...
  • Page 48 Installation MTM400A Quick Start User Manual...
  • Page 49: Operation

    Getting Acquainted with your Instrument Front Panel Indicators Since the MTM400A monitor is designed to be operated remotely, the local interface is limited to four front-panel LEDs as shown in the following figure. The LEDs indicate the instrument status. (See Table 7.)
  • Page 50 You can use the RUI to monitor real-time transport streams from your networked PC. (See page 35, Starting the RUI.) The following figure and table describe the main RUI display elements. The display elements are described in more detail in the MTM400A MPEG Transport Stream Monitor Technical Reference. MTM400A Quick Start User Manual...
  • Page 51 Item Description Title bar Displays the stream name (if specified) that is being monitored followed by the IP address or network name of the MTM400A monitor. Menu bar Provides access to a selection of system options using drop-down menus. Toolbar Provides shortcuts to often-used menu options.
  • Page 52: Rui Displays

    Each of the FlexVuPlus™ views is selected from views that are available under the Analysis tab. Refer to Setting up the FlexVuPlus ™ Display for information about selecting views for the FlexVuPlus™ display. (See page 38.) MTM400A Quick Start User Manual...
  • Page 53 ISDB-T and ISDB-S streams. Also displayed in the Tests view are the results of tests related to the MTM400A monitor hardware. One example is the temperature of the system card. MTM400A Quick Start User Manual...
  • Page 54 PID. Select a specific PID to display a summary of all the associated tests. Select a specific test to display the Event Log and Parameters for only that test. MTM400A Quick Start User Manual...
  • Page 55 IP card measurements RF or IP card readings and control settings The graphical views display a selection of graphs of instantaneous measurements and measurement trends. Also available are an Event Log and a Parameter view. MTM400A Quick Start User Manual...
  • Page 56: Webmsm Monitoring Software

    firmware CD-ROM that was supplied with the MTM400A monitor. If you have a system consisting of several MTM400A monitors, you can expand your monitoring capabilities by using the Tektronix WebMSM Monitoring System Manager. The WebMSM software is effectively an installed version of the RUI. The WebMSM software provides additional functionality by allowing you to create hierarchical network views of your systems using the WebMSM Configuration Editor, and monitor and control multiple devices.
  • Page 57: Procedures

    Using the RUI, you can monitor real-time transport streams from your networked personal computer (PC). The RUI software is downloaded from the MTM400A monitor to the PC each time the instrument is accessed. The RUI can be run on any PC that has network access to the MTM400A monitor and meets the minimum specifications.
  • Page 58 5. Select Connect to accept the details. Select Cancel to close the dialog box and exit the start process. 6. Read the End User License Agreement, scroll to the bottom of the document and click I Accept. MTM400A Quick Start User Manual...
  • Page 59 Start menu entry takes the following form: MTM Viewer - <IP Address>, where IP Address is the IP address of the MTM400A monitor to which you connected. You can change the default name of the Start menu entry by right-clicking on the menu entry and selecting Properties.
  • Page 60: Setting Up The Flexvuplus™ Display

    X in the top right corner of each panel. This is not necessary, but it may help you visualize the following procedure more easily as each panel is populated. Note that each of the four FlexVuPlus™ panels are numbered. MTM400A Quick Start User Manual...
  • Page 61 FlexVuPlus™ panel. 2. In the Test Summary view, use the FlexVuPlus™ panel select button to replicate the view in panel 1. 3. The FlexVuPlus™ display now contains the Test Summary view in panel 1. MTM400A Quick Start User Manual...
  • Page 62 4. Click the Analysis tab, and then click the Programs tab. 5. In the Thumbnails view, use the FlexVuPlus™ panel select button to replicate the view in panel 2. 6. The FlexVuPlus™ display now contains the Thumbnail view in panel 2. MTM400A Quick Start User Manual...
  • Page 63 7. Select the Analysis tab, and Tests tab. 8. In the Test Failures view, use the FlexVuPlus™ panel select button to replicate the view in panel 3. 9. The FlexVuPlus™ display now contains the Test Failures view in panel 3. MTM400A Quick Start User Manual...
  • Page 64 In the Tests Summary view (FlexVuPlus™ panel 1), which tests have failed. In the Test Failures view (FlexVuPlus™ panel 3), which tests have failed most recently. In the Thumbnails view (FlexVuPlus™ panel 2), which elementary streams are currently carrying video content. MTM400A Quick Start User Manual...
  • Page 65: Saving And Using Configuration Files

    MTM400A MPEG Transport Stream Monitor Test Parameter and Configuration File Technical Reference for more information. In the MTM400A monitor, configuration settings files are held in storage slots; eight storage slots are available for each stream. Storage slots can be filled by either storing the current configuration or by uploading a configuration file from the client PC.
  • Page 66 The name displayed in the Current and Slot fields is contained in the file header and does not necessarily correspond with the file name. Downloaded configuration files can be modified using a text editor or an XML editing program. MTM400A Quick Start User Manual...
  • Page 67 The file has been uploaded to the highlighted slot, that is, Slot 7. 11. To make a configuration file active, highlight the slot containing the file to be activated, for example, Slot 7. 12. Click Activate. MTM400A Quick Start User Manual...
  • Page 68: Capturing A Recording

    Test failures - you can specify which test failure will trigger recording In this procedure, you will set up the MTM400A monitor to make a recording of the stream around the failure of a test, for example, the TR101 290, Priority 1, Continuity test.
  • Page 69 You can then view the trigger event in context. 7. Select Test Failure as the recording trigger. Any test with a record trigger action set will initiate recording on failure. MTM400A Quick Start User Manual...
  • Page 70 Idle to Waiting. The toolbar recording icons indicate the trigger state. Recording will starts when the trigger event occurs. You can close the Configuration dialog box. The toolbar recording icons will indicate the recording status. MTM400A Quick Start User Manual...
  • Page 71 Configuration dialog box. 11. Select Stream > Recording Settings to open the Recording Settings panel. The Trigger State is now Recording Complete. 12. Click Download to save the recording to your PC (or the network). MTM400A Quick Start User Manual...
  • Page 72 You must clear the recording from the recording buffer. No further recordings can be made until this is done. 14. Click Clear to clear the recording buffer. The Trigger State will return to Idle and the Progress bar will be cleared. MTM400A Quick Start User Manual...
  • Page 73: Applications

    Detailed operational information can be found in the MTM400A MPEG Transport Stream Monitor Technical Reference. You can use the MTM400A instrument to monitor signals at any point in the distribution network. The figure below illustrates two real-life applications of the MTM400A monitor.
  • Page 74: Configuring An Rf Interface Card

    Interfaces dialog box. 4. Allow the display to stabilize; this can take up to 30 seconds. An indication that the display has stabilized is that the correct interface name is displayed in the RUI Status bar. MTM400A Quick Start User Manual...
  • Page 75 7. In the Preset Name field, change the name from Preset to Test Preset. 8. Change the rest of the settings; use the values supplied by your network planner. MTM400A Quick Start User Manual...
  • Page 76 Applications 9. Click Apply to confirm the changed settings. Activate Preset 10. Highlight the Preset (TestPreset) and click Apply, to implement the newly created settings (or any of the other presets). MTM400A Quick Start User Manual...
  • Page 77: Monitoring Rf Stream Quality

    Interface views. The selection and placement techniques are similar to those described previously. (See page 38, Setting up the FlexVuPlus™ Display.) This procedure assumes that a COFDM RF interface card is installed in the MTM400A monitor. The Analysis Interface tab will not be displayed if an interface card is not installed.
  • Page 78 Constellation from the Add Graph drop-down list. 3. Repeat the previous step, selecting the Signal-to-Noise Ratio Trend graph. 4. In the Graphs view, use the FlexVuPlus™ panel select button to replicate the view in panel 2. MTM400A Quick Start User Manual...
  • Page 79 Expand FlexVuPlus™ panels 1 and 2 vertically to provide a full display. In FlexVuPlus™ panel 2, Graphs and Readings form a single panel. 6. Hide the readings panel in FlexVuPlus™ panel 2 by horizontally expanding the Graphs panel. MTM400A Quick Start User Manual...
  • Page 80 To summarize, in this view you can see the following: In the Interface Readings view (FlexVu™ panel 1), interface error values and error states. In the Interface Graphs view (FlexVu™ panel 3), the RF constellation and signal-to-noise trends. MTM400A Quick Start User Manual...
  • Page 81: Configuring An Ip Video Interface Card

    In this example, instrument B is set up to monitor the IP flow before it is transmitted across the network. You must have the IP Video Gigabit Ethernet Interface card present in the MTM400A instrument. Procedures cited for the MTM400A designated as (B) include the following:...
  • Page 82 Interfaces dialog box. 4. Allow the display to stabilize; this can take up to 30 seconds. An indication that the display has stabilized is that the correct interface name is displayed in the RUI Status bar. MTM400A Quick Start User Manual...
  • Page 83 ASI Output: Set the ASI output format. (You can find detailed descriptions of these setting in the MTM400A Technical Reference.) Select Apply after each setting is entered. Finally select OK to accept all of the settings and close the dialog box.
  • Page 84 flow from a multicast session. You can start monitoring the program content of that session using the Analysis tab views or you can monitor the IP content in detail using the Analysis Interface tab view. MTM400A Quick Start User Manual...
  • Page 85 A feature of the RUI is “tear-off’ windows, which let you display elements of the RUI in separate windows. The tear-off windows can be resized as required. 12. Select the tear-off icon of the Graphs window. MTM400A Quick Start User Manual...
  • Page 86 You can see the instantaneous bit rates and other measurements in the adjacent Readings screen. If these views prove useful, remember that you can set them up in the FlexVuPlus view. (See page 38, Setting up the FlexVuPlus™ Display.) MTM400A Quick Start User Manual...
  • Page 87: Rf Off-Air Performance Monitoring

    The following procedure shows you how to set up FlexVuPlus™ to monitor this scenario. Procedure 1. Select the Analysis tab, and the Interface tab. 2. In the Interface view, select the Readings view and use the FlexVuPlus™ panel select button to replicate the view in panel 1. MTM400A Quick Start User Manual...
  • Page 88 3. In the Interface view, select the Graphs view. 4. From the Add Graph drop-down list, select the RF constellation (all data carriers). 5. Repeat the action twice more, selecting the Input Power Trend and Signal-to-Noise Ratio Trend graphs. MTM400A Quick Start User Manual...
  • Page 89 6. Use the FlexVuPlus™ panel select button to replicate the graphs view in panel 2. 7. In the Interface view, select the IF Error Collection view and use the FlexVuPlus™ panel select button to replicate the view in panel 3. MTM400A Quick Start User Manual...
  • Page 90 Applications 8. Select the FlexVuPlus™ tab to display the assembled views. 9. You can expand panel 2 vertically by selecting the panel expand button. MTM400A Quick Start User Manual...
  • Page 91 24 hours; note the change in the X-axis values. 12. To examine the graphs more closely, click the tear-off icon. You can resize the tear-off window to make viewing the graphs easier. MTM400A Quick Start User Manual...
  • Page 92 14. Open the Analysis > Tests view and examine the Event Log for the Priority 1 test 1.4 Continuity. For the period that input power was low, you might see a corresponding increase in the continuity count caused by out-of-order packets. MTM400A Quick Start User Manual...
  • Page 93: Product Options And Upgrades

    Product Options and Upgrades Options The following table lists the software and hardware options that you can order with the MTM400A monitor. Included are the part numbers of any accessories shipped with the options. Table 10: Options and optional accessories...
  • Page 94: Field Upgrade Kits

    Optical gigabit Ethernet/fibre channel 1550 nm SFP SFF, 1.25/1.0625 Gbaud, 3.3 V, safety controlled; for GigE interface (Tektronix part number 131-7958-xx) Field Upgrade Kits Field upgrade kits are hardware and software upgrades that you can install after you purchase the MTM400A monitor. Table 11: Field upgrade kits Option...
  • Page 95: Upgrading The Firmware Version

    It is recommended that you initiate the firmware upgrade process from the Connect to MTM Device dialog box that appears before the MTM400 or MTM400A monitor RUI is launched. Only advanced users should use the Connect to MTM Device dialog box accessed from the Connect button in the MTM400A monitor RUI toolbar.
  • Page 96 The default password is “tek" for Administrator. NOTE. You must log in to the MTM400A monitor using the Administrator login type. The User login type does not have sufficient permissions to upgrade the instrument firmware. MTM400A Quick Start User Manual...
  • Page 97 CAUTION. To prevent upgrade problems that might require the monitor to be returned to Tektronix service for reprogramming, you must clear the Device Log immediately before uploading the firmware. 10. Clear the device log by clicking the X in the Device Event Log window.
  • Page 98 Do not remove power from the instrument during the reprogramming process. If power is removed during CAUTION. reprogramming, the instrument might be rendered unable to reboot, which will require that the instrument be returned to Tektronix for repair. MTM400A Quick Start User Manual...
  • Page 99 file you used in step 1. NOTE. The Device Information view details the software and hardware build state of the MTM400A monitor. The values shown in the above figure might differ from the values shown for your instrument. The upgrade is complete.
  • Page 100 Product Options and Upgrades MTM400A Quick Start User Manual...
  • Page 101: Index

    7 Field upgrade kits, 72 slide adjustments, 7 Firmware upgrade, 73 slide maintenance, 7 FlexVuPlus display Related documentation, xi overview, 30 Remote user interface (RUI), 28 Front panel indicators, 27 RUI, 28 platform requirements, 19 MTM400A Quick Start User Manual...
  • Page 102 Setting up the FlexVu display, 38 SFP module, 8 SI/PSI (Tables) view, 32 Tests view, 31 Video thumbnails Software Thumbnails installing support software, 22 license, 23 installing support software, 22 thumbnail support, 22 Software license reset, 15 MTM400A Quick Start User Manual...
