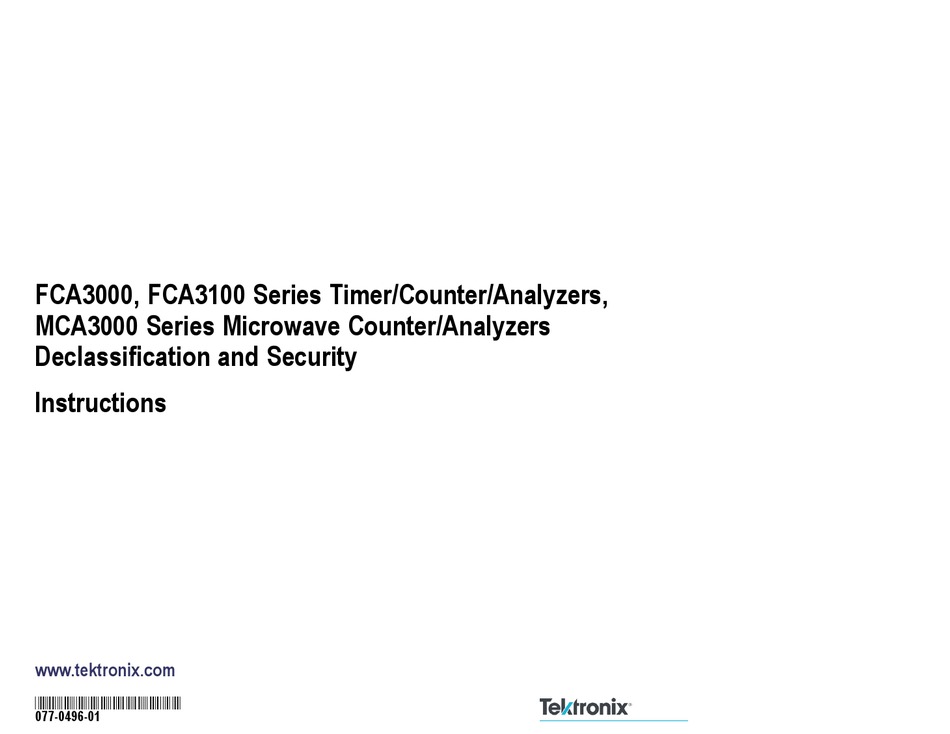

- Page 1 FCA3000, FCA3100 Series Timer/Counter/Analyzers, MCA3000 Series Microwave Counter/Analyzers Declassification and Security Instructions www.tektronix.com *P077049601* 077-0496-01...
- Page 2 Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by national copyright laws and international treaty provisions. Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously published material.
-
Page 3: Table Of Contents
Table of Contents Preface ................................Products................................ Terms................................Clear and Sanitize Procedures............................. Memory Devices............................... Media and Data Export Devices ..........................Troubleshooting..............................How to Clear or Sanitize a Nonfunctional Instrument..................... FCA3000, FCA3100 & MCA3000 Series Declassification and Security... - Page 4 Table of Contents FCA3000, FCA3100 & MCA3000 Series Declassification and Security...
-
Page 5: Preface
The procedures in this document are written to meet the requirements specified in: NISPOM, DoD 5220.22–M, Chapter 8 ISFO Process Manual for Certification & Accreditation of Classified Systems under NISPOM Products The following Tektronix products are covered by this document: FCA3000, FCA3003, and FCA3020 FCA3100, FCA3103, and FCA3120 MCA3027 and MCA3040... -
Page 6: Terms
Preface Terms This document may use the following terms: Clear. This eradicates data on media/memory before reusing it in a secured area. All reusable memory is cleared to deny access to previously stored information by standard means of access. Erase. This is equivalent to clear. Media. -
Page 7: Clear And Sanitize Procedures
Clear and Sanitize Procedures Memory Devices The following tables list the volatile and nonvolatile memory devices in the instrument. Terminology The tables in this section use the following terms: User data – Describes the type of information stored in the device. Refers to waveforms or other measurement information representing signals connected to the instrument by users. - Page 8 Clear and Sanitize Procedures Table 1: Volatile memory devices Type and Type of user Backed-up Method of Data input User minimum size Function info stored by battery modification method Location accessible To clear To sanitize SRAM, 16 kB Processor memory None (working Indirect System...
-
Page 9: Media And Data Export Devices
Clear and Sanitize Procedures Media and Data Export Devices The following table lists the data export devices in the instrument. Table 3: Media and data export devices Type and Method of Data input minimum size Function modification method Location User accessible To disable Directly Main board,... -
Page 10: Troubleshooting
Return the product to Tektronix. The instrument will then be repaired and adjusted as necessary. In North America, contact the Tektronix Customer Care Center (1-800-833-9200) for assistance with removing the main board and returning the instrument to a repair center. Worldwide, visit www.tektronix.com to find contacts in your area. Charges Replacement of any missing hardware is charged according to the rate at the time of replacement.
