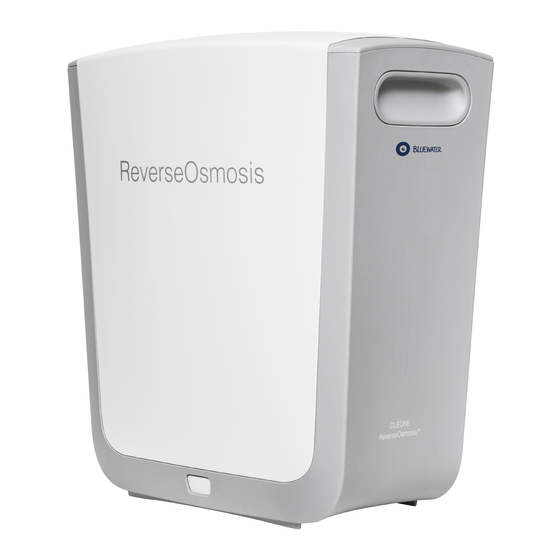

Bluewater CLEONE Complete User's Manual
Hide thumbs
Also See for BLUEWATER CLEONE:
- Complete user's manual (32 pages) ,
- Owner's manual (156 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Bluewater BLUEWATER CLEONE
Summary of Contents for Bluewater BLUEWATER CLEONE
- Page 1 COM PLE T E USER MANUAL BLU E WAT E R C L EON E WATE R PUR IF IER...
-
Page 2: Table Of Contents
Contents INTRODUCTION ........................... 03 About this manual ............................03 Limited warranty ............................03 Environment information ..........................03 Disposal ..............................03 Safety instructions ............................03 Safety information ............................04 PRODUCT OVERVIEW........................05 Cleone outside ............................05 Cleone inside .............................. 06 SYSTEM OVERVIEW ........................07 Clean water tank ............................ -
Page 3: Introduction
A CAUTION identifies conditions that can cause damage to the equipment. Obey the instructions and do not continue until all conditions are accepted and engaged. A Note identifies important information for a trouble free and optimal use of Cleone. © Bluewater Group 2016... -
Page 4: Safety Information
Do not disconnect the external water tubes, and do not do work on them. Speak to your Bluewater dealer for aid if you must disconnect water tubes. In an emergency, follow the instructions in the Complete User manual. Do not repair or modify parts of the water purifier. This can make it operate incorrectly, and lead to injury and damage not covered by warranty. -
Page 5: Product Overview
Power switch Figure 2. Power switch Position Description Cleone is started. Water can be cleaned. Cleone is stopped. No water is cleaned. Water from the clean water tank can be used until the tank is empty. © Bluewater Group 2016... -
Page 6: Cleone Inside
On – Cleone operates correctly. Off – Cleone is shut off. If power switch is in position “1” see “Troubleshooting” on page 29. Flashes – There is a problem with Cleone. See “Troubleshooting” on page 29 or contact your Bluewater dealer. Cleone inside Figure 4. -
Page 7: System Overview
Drain water connection Clean water tank Clean water faucet Clean water tank Figure 6. Clean water tank valve Description Valve closed – no water can flow Valve open – water can flow to and from the tank © Bluewater Group 2016... -
Page 8: Clean Water Faucet
Clean water faucet Figure 7. Clean water faucet Description Clean water faucet in closed position Clean water faucet in open position Water filtration system Cleone cleans water in three steps: prefiltration, membrane filtration and postfiltration. Clean water from Cleone is collected in the clean water tank. -
Page 9: Low Pressure Protection
Low pressure protection 24 h Restart 1.2-7 bar (17-102 psi) Figure 8. Low pressure restart function 1.2-7 bar (17-102 psi) Figure 9. Manual restart after low pressure cause has been removed © Bluewater Group 2016... -
Page 10: Leak Protection System
Leak protection system 10mm (1/2”) Figure 10. Leak protection system Complete User manual... -
Page 11: Installation
INSTALLATION Install Cleone in accordance with local regulations. If you are not sure, contact a Bluewater dealer for aid. Bluewater has no responsibility for installation of Cleone. If the Cleone is connected to a public water supply, the system shall be protected against backflow. -
Page 12: Install Feed Water Connection
Install feed water connection Ø Ø 6-8mm 10-13mm (1/4”) (1/2”) Figure 13. Install feed water connections Complete User manual... -
Page 13: Install Drain Water Connection
Install drain water connection Install clean water tank Figure 15. Install clean water tank Step Action Install clean water tank valve (1). Put the tank (2) under the kitchen sink. (Use the stand (3) if it is included.) © Bluewater Group 2016... -
Page 14: Connect Tubing
Connect tubing Figure 16. Connect tubing, ORANGE (1) and RED (2) Figure 17. Connect tubing, YELLOW (3) and BLUE (4) Complete User manual... - Page 15 Secure water connectors with safety locking clips ×8 Figure 18. Safety locking clips Open feed water valve Figure 19. Open feed water valve Step Action Turn the valve handle counter clockwise until it is fully open. © Bluewater Group 2016...
-
Page 16: Install Power Adapter
Install power adapter See “Technical information” on page 28 for allowed electrical current and frequency. Use only the original Bluewater power adapter as electrical power source for your Cleone. To use a different power adapter can make Cleone dangerous to use. It can also cause damage to internal parts of the Cleone. -
Page 17: After Installation
45 s Figure 21. Flush Cleone Condition Cleone Do not use the water from the conditioning procedure! The reverse osmosis membrane is factory treated with a biocidic preservative solution. 100% ~2 h Figure 22. Condition Cleone © Bluewater Group 2016... - Page 18 Do a check for leaks The tubing connections must be tight! ×8 Figure 23. Check for leaks Repair leaks 10mm (1/2”) Figure 24. Repair leaks Complete User manual...
-
Page 19: Maintenance
Only educated and approved personnel can do the maintenance. The water quality controls the maintenance frequency. If the feed water is of low quality, do maintenance more frequently. Remove and install side covers Figure 25. Remove side cover Figure 26. Install side cover © Bluewater Group 2016... -
Page 20: Each 6 Months
Each 6 months Replace prefilters Always flush the activated carbon prefilter after the filter is replaced. See “Flush Cleone” on page 17. The instruction applies to the coarse sediment prefilter, the fine sediment prefilter and the activated carbon prefilter. See “Product overview” on page 05 for filter positions and models. 15 s 2-3 s Figure 27. - Page 21 Replace integrated mineral filter Always flush the integrated mineral filter after the filter is replaced. See “Flush Cleone” on page 17. ×3 ×3 15 s Flush water purifier 2-3 s Figure 28. Replace integrated mineral filter © Bluewater Group 2016...
- Page 22 Do a feed water pressure check ×3 1.2-7 bar (17-102 psi) 2 min Complete User manual...
- Page 23 ×3 Figure 29. Feed water pressure check © Bluewater Group 2016...
-
Page 24: Each Year
Each year Replace activated carbon postfilter Always flush the activated carbon postfilter after the filter is replaced. See “Flush Cleone” on page 17 and “Condition Cleone” on page 17. See “Product overview” on page 05 for filter position. ×3 ×3 15 s Flush water... - Page 25 Replace UV lamp The UV lamp contains mercury and is poisonous. Contact your local authority for information on where the UV lamp can be left. ×2 ×2 Figure 31. Replace UV lamp © Bluewater Group 2016...
- Page 26 Measure air cushion pressure in clean water tank Make sure that the pressure in the air cushion in the clean water tank agrees with the recommended levels. It is important for the clean water flow. ~0.5 bar (7 psi) Figure 32. Measure air cushion pressure in clean water tank Complete User manual...
-
Page 27: Each 3-5 Years
If the rejection rate of Cleone is less than 80% (system operation indicator flashes) or if the flow rate is low, replace the reverse osmosis membrane. ×3 ×3 Flush water purifier Figure 33. Replace reverse osmosis membrane © Bluewater Group 2016... -
Page 28: Technical Information
TECHNICAL INFORMATION Technical data Parameter/Model Cleone Classic Cleone Balance Cleone Ultra Cleone PurityPlus Size W×D×H [mm] 215×380×416 215×380×416 215×380×416 215×380×416 Size W×D×H [“] 8.5×15×16.4 8.5×15×16.4 8.5×15×16.4 8.5×15×16.4 Weight [kg] 10.4 11.0 11.4 12.0 Weight [lbs] 22.9 24.2 25.1 26.5 Power supply 95-240V 50-60Hz 95-240V 50-60Hz 95-240V 50-60Hz... -
Page 29: Troubleshooting
Cleone is not started. Move the power switch to position 1. An internal leak has been sensed. Cleone has Contact your Bluewater dealer to repair the been automatically stopped. leak and reset the system. No water comes from the clean water faucet. - Page 30 Complete User manual...
- Page 32 Bluewater is a world leading water purification company. Headquatered in Stockholm, Sweden, the company helps people and businesses in Europe, the USA, China and elsewhere in Asia enjoy the health and wellbeing benefits of cleaner, healthier tap water. Bluewater innovates, makes and sells compact water purifiers that harness...
