- Page 1 COMP L ET E US ER MA NUA L B LU E WATE R S PIR I T WAT E R P URIF IER...
-
Page 2: Table Of Contents
Contents INTRODUCTION ........................... 03 About this manual ............................03 Limited warranty ............................03 Environment information ..........................03 Disposal ..............................03 Safety instructions ............................03 Safety information ............................04 PRODUCT OVERVIEW........................05 Spirit outside ............................... 05 Spirit inside ..............................06 Move the water purifier ..........................06 SYSTEM OVERVIEW ........................ -
Page 3: Introduction
A CAUTION identifies conditions that can cause injury or, damage to the equipment. Obey the instructions and do not continue until all conditions are accepted and engaged. A Note identifies important information for a trouble free and optimal use of the water purifier. © Bluewater Group 2016... -
Page 4: Safety Information
Do not repair or modify parts of the water purifier. This can make it operate incorrectly, and lead to injury and damage not covered by the warranty. Only approved Bluewater staff can do servicing and repairs on the water purifier. Only use original replacement cartridges and parts from Bluewater. -
Page 5: Product Overview

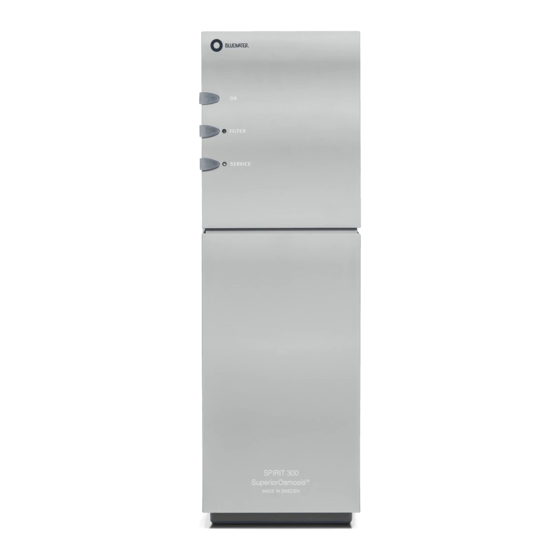

9 10 Figure 1. Spirit outside Description Description Control panel Power cord ON light Electrical connection for faucet (Spirit 300) FILTER light Feed water connection with grid filter SERVICE light Drain water tubing Front cover Clean water connection Control panel Spirit 300 Figure 2. -
Page 6: Spirit Inside
Spirit inside Figure 3. Spirit inside Description Description Base plate Reverse osmosis membrane Prefilter (Granulated Active Carbon (GAC)) Data plate The data plate is located behind the filter. Figure 4. Data plate Move the water purifier Always transport the water purifier upright. Install according to “Installation”... -
Page 7: System Overview
The electronically controlled Spirit 300 is intended to produce the quantity of water that is normally required for cooking and drinking in a household. The pressure controlled Spirit 300Cp can be connected to other devices such as dishwashers. -
Page 8: Water Production
Water production Figure 7. Water production on/off Automatic flush An automatic flush will be performed if one of the conditions below are fulfilled: = 60 s 20 s 30 s 10 s 15 min 4.5 min 300Cp 2.5 min Figure 8. Automatic flushing Description Flush after drawing water. -
Page 9: Installation
Install the water purifier in a vertical position on a horizontal surface. Make sure that tubing and cables can move freely when the purifier is moved. Only connect the water purifier (only Spirit 300) to one clean water faucet supplied by Bluewater. Do not connect it to other pipes, tanks or dishwashers. -
Page 10: Position Spirit
Position Spirit Put Spirit in a vertical position on a horizontal surface below the kitchen sink. Make sure that the surface can support Spirit Position Spirit near the cold water supply, the drain and an earthed electrical supply. • Make sure that it is easy to see the control panel. •... -
Page 11: Install Feed Water Connection
Install drain water connection Connect the water purifier Do not connect the clean water tubing to equipment before Spirit has been flushed. Spirit 300 (3/4”) (3/4”) UK US ZH EU Figure 14. Connect the water purifier © Bluewater Group 2016... -
Page 12: After Installation
• when the membrane has been replaced. 14-16 s Open the clean water valve immediately when the service button is released. If not, Spirit can be damaged. Spirit 300 Spirit 300 25-30 Figure 15. Flush Spirit Do a check for leaks See “Do a check for leaks”... -
Page 13: Maintenance
The water quality controls the maintenance frequency. If the feed water is of low quality, do maintenance more often. Each month Do a check for leaks The tubing connections must be tight! ×4 Figure 16. Check for leaks Repair leaks 10mm (1/2”) Figure 17. Repair leaks © Bluewater Group 2016... -
Page 14: Each 4-6 Months
If Spirit has been descaled and the filters have been replaced, but the water flow cannot be restored, contact your Bluewater dealer. The descale takes approximately 10 hours. Do not use the water purifier during this time. Order the descaling product from Bluewater 5-7 s 700 ml ~25°C... - Page 15 20 s 10 h Flush water purifier Figure 19. Descale © Bluewater Group 2016...
- Page 16 Replace prefilter If the filter is replaced before the FILTER light shows that it is necessary, reset Spirit as given in step 14. The FILTER light will go on and then go out. 5-7 s 2-4 s Figure 20. Replace prefilter Complete User manual...
-
Page 17: Each Year
Clean the grid filter The grid filter in the feed water connection catches larger particles. If the flow is decreased or if Spirit makes a noise, the grid filter can be blocked. Figure 21. Clean the grid filter © Bluewater Group 2016... - Page 18 Use disinfectant to clean the system Disinfectant is harmful! Always flush the water purifier after disinfectant is used. See “Flush Spirit” on page 12. 5-7 s 700 ml ~25°C 25 ml (NaClO 3.5%) 30 s 30 min Flush water purifier Figure 22.
- Page 19 Put the water purifier into storage if it will not be used for 4 months or more, or if it is to be disconnected from the water and electricity for >5 days. 2 l + 2 l © Bluewater Group 2016...
- Page 20 Spirit 300 -30°C Figure 23. Put into storage Reinstall after storage Preserving agent is harmful! Keep it where children cannot get it. Clean your hands when you have used it. Always flush the water purifier after storage. See “Flush Spirit” on page 12.
-
Page 21: Technical Information
< 0.5/< 0.3 (< 0.5/< 0.3) < 0.5/< 0.3 (< 0.5/< 0.3) Manganese Mn [mg/l (ppm)] < 0.2 (< 0.2) < 0.2 (< 0.2) Chlorine Cl2 [mg/l (ppm)] < 1.0 (< 1.0) < 1.0 (< 1.0) © Bluewater Group 2016... -
Page 22: Troubleshooting
The water purifier is not connected to Connect the water purifier to power. power. Spirit 300: The faucet cable is not Spirit 300: Make sure that the faucet cable connected. and connector are connected. The FILTER light flashes, and the yellow The filter must be replaced. - Page 24 Bluewater is a world leading water purification company. Headquatered in Stockholm, Sweden, the company helps people and businesses in Europe, the USA, China and elsewhere in Asia enjoy the health and wellbeing benefits of cleaner, healthier tap water. Bluewater innovates, makes and sells compact water purifiers that harness...
