Summary of Contents for Bluewater Spirit 300
- Page 1 Applies only to products with serial number earlier than 1804-61001 COM PLET E U SER MANUAL B LU EWAT ER SP IRI T WAT ER PU RIFIER...
-
Page 2: Table Of Contents
Contents INTRODUCTION ........................... 03 About this manual ............................03 Limited warranty ............................03 Environment information ..........................03 Disposal ..............................03 Safety instructions ............................03 Safety information ............................04 PRODUCT OVERVIEW........................05 Spirit outside ............................... 05 Spirit inside and replacement components ....................06 Move the water purifier .......................... -
Page 3: Introduction
A CAUTION identifies conditions that can cause injury or, damage to the equipment. Obey the instructions and do not continue until all conditions are accepted and engaged. A Note identifies important information for a trouble free and optimal use of the water purifier. © Bluewater Group 2017... -
Page 4: Safety Information
Test the cleaned water periodically, at least one time every year, to make sure that Spirit performs correctly. Only approved Bluewater staff can do servicing and repairs on the water purifier. Only use original replacement cartridges and parts from Bluewater. For the spare parts catalogue and contact information for purchases, see www.bluewatergroup.com. -

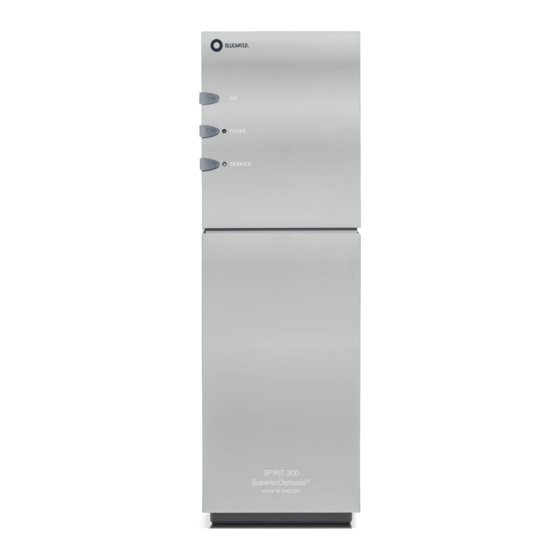

Page 5: Product Overview
9 10 Figure 1. Spirit outside Description Description Control panel Power cord ON light Electrical connection for faucet (Spirit 300) FILTER light Feed water connection with grid filter SERVICE light Drain water hose Front cover Clean water connection Control panel Spirit 300 Figure 2. -
Page 6: Spirit Inside And Replacement Components
Spirit inside and replacement components Figure 3. Spirit inside Description Art. no Description Base plate Reverse osmosis membrane Membrane service kit, type HR (High Rejection) 155007301-SP Membrane service kit, type HF (High Flow) 150759380-SP Prefilter, Carbon filter, granulated 919240004 Data plate The data plate is located behind the filter. -
Page 7: System Overview
The electronically controlled Spirit 300 is intended to produce the quantity of water that is normally required for cooking and drinking in a household. The pressure controlled Spirit 300Cp can be connected to other devices such as dishwashers. -
Page 8: Water Production
Water production Figure 7. Water production on/off Automatic flush An automatic flush will be performed if one of the conditions below are fulfilled: = 60 s 20 s 30 s 10 s 15 min 4.5 min 300Cp 2.5 min Figure 8. Automatic flushing Description Flush after drawing water. -
Page 9: Installation
Install the water purifier in a vertical position on a horizontal surface. Make sure that hose and cables can move freely when the purifier is moved. Only connect the water purifier (only Spirit 300) to one clean water faucet supplied by Bluewater. Do not connect it to other pipes, tanks or dishwashers. -
Page 10: Position Spirit
Position Spirit Put Spirit in a vertical position on a horizontal surface below the kitchen sink. Make sure that the surface can support Spirit Position Spirit near the cold water supply, the drain and an earthed electrical supply. • Make sure that it is easy to see the control panel. •... -
Page 11: Install Feed Water Connection
50 mm (2”) 13 mm (1/2”) (13’) ×1 ×2 Figure 13. Install drain water connection Connect the water purifier Do not connect the clean water hose to equipment before Spirit has been flushed. Spirit 300 (3/4”) © Bluewater Group 2017... -
Page 12: After Installation
(3/4”) UK US ZH EU Figure 14. Connect the water purifier After installation When Spirit is installed, and after each maintenance, the following procedures must be performed before operation. Flush Spirit Do not drink the water when the water purifier flushes. It is not safe to use. The water purifier should always be flushed: •... - Page 13 Spirit 300 Spirit 300 25-30 Figure 15. Flush Spirit Do a check for leaks See “Do a check for leaks” on page 14. © Bluewater Group 2017...
-
Page 14: Maintenance
MAINTENANCE After each maintenance, all procedures in chapter “After installation” on page 12, must be performed before operation. Regular maintenance is important for correct function and long term operation. Only educated and approved personnel can do the maintenance. The water quality controls the maintenance frequency. If the feed water is of low quality, do maintenance more often. -
Page 15: Each 4-6 Months
If Spirit has been descaled and the filters have been replaced, but the water flow cannot be restored, contact your Bluewater dealer. The descale takes approximately 10 hours. Do not use the water purifier during this time. Order the descaling product from Bluewater 5-7 s 700 ml ~25°C... - Page 16 20 s 10 h Flush water purifier Figure 19. Descale Complete User manual...
- Page 17 If the filter is replaced before the FILTER light shows that it is necessary, reset Spirit as given in step 14. The FILTER light will go on and then go out. 5-7 s 2-4 s Figure 20. Replace prefilter © Bluewater Group 2017...
-
Page 18: Each Year
Each year Test the water An approved lab must do a test of the water that is cleaned by Spirit at least one time every year, if the feed water has been classed as unfit. Other Clean the grid filter The grid filter in the feed water connection catches larger particles. - Page 19 Disinfectant is harmful! Always flush the water purifier after disinfectant is used. See “Flush Spirit” on page 12. 5-7 s 700 ml ~25°C 25 ml (NaClO 3.5%) 30 s 30 min Flush water purifier Figure 22. Use desinfectant to clean the system © Bluewater Group 2017...
- Page 20 Put into storage Preserving agent is harmful! Keep it where children cannot get it. Clean your hands when you have used it. Always flush the water purifier after storage. See “Flush Spirit” on page 12. Put the water purifier into storage if it will not be used for 4 months or more, or if it is to be disconnected from the water and electricity for >5 days.
- Page 21 Preserving agent is harmful! Keep it where children cannot get it. Clean your hands when you have used it. Always flush the water purifier after storage. See “Flush Spirit” on page 12. 48 h +5°C Spirit 300 (3/4”) Flush water purifier Figure 24. Reinstall after storage © Bluewater Group 2017...
-
Page 22: Technical Information
TECHNICAL INFORMATION Technical data Parameter/Model Spirit 300 Spirit 300Cp Size W×D×H [mm] 150×365×462 150×365×462 Size W×D×H [“] 5.9×14.3×18.2 5.9×14.3×18.2 Weight [kg] Weight [lbs] Power supply, earthed supply 230V 50-60Hz, 10A 230V 50-60Hz, 10A Power supply, earthed supply US 120V 60Hz, 10A... -
Page 23: Product Performance
The Bluewater Spirit water purifier has been tested according to NSF/ANSI 58 for reduction of TDS (total dissolved solids). The concentration of TDS in water entering the system was reduced to a concentration less than or equal to the permissible limit for the water leaving the system, as specified in NSF/ANSI 58. -
Page 24: Troubleshooting
The water purifier is not connected to Connect the water purifier to power. power. Spirit 300: The faucet cable is not Spirit 300: Make sure that the faucet cable connected. and connector are connected. The FILTER light flashes, and the yellow The filter must be replaced. - Page 25 © Bluewater Group 2017...
- Page 26 Bluewater is a world leading water purification company. Headquartered in Stockholm, Sweden, the company helps people and businesses globally enjoy the health and wellbeing benefits of cleaner, healthier tap water. Bluewater innovates, makes and sells compact water purifiers that harness the company’s patented reverse...
