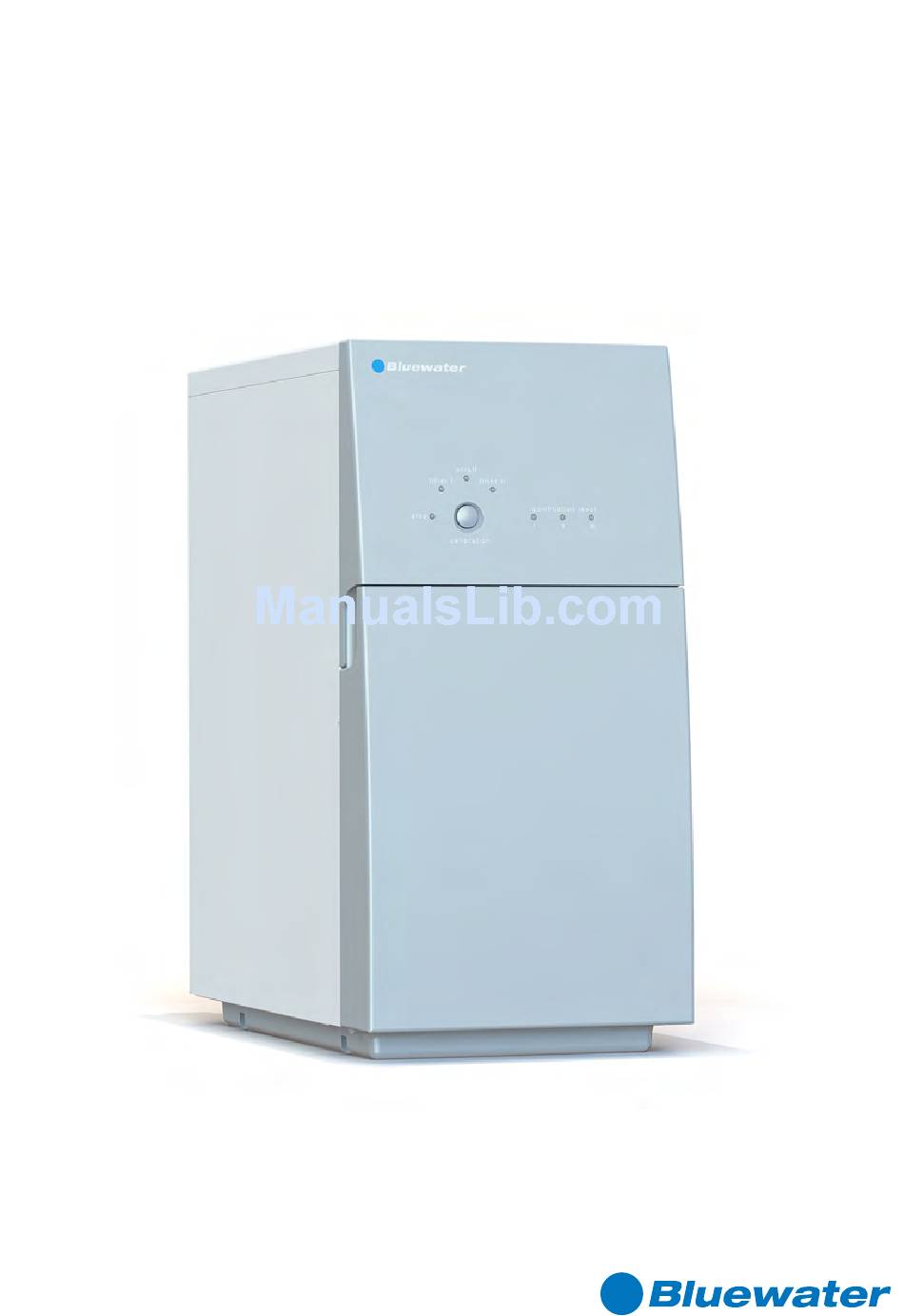

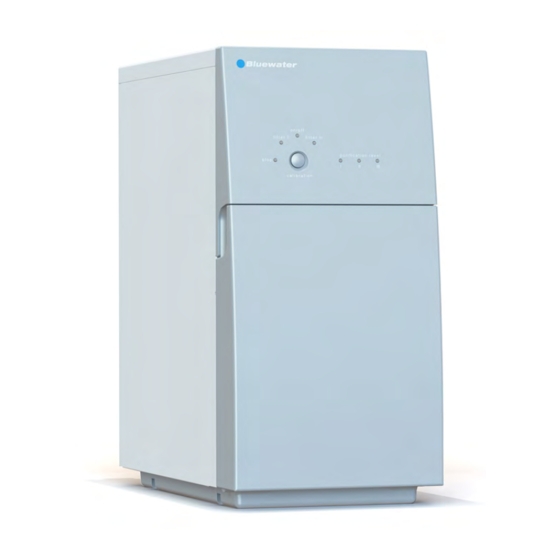

- Page 1 Water purifier Complete User Manual Document No 822901697 Revision BB1522 © Bluewater 2015...
-
Page 2: Table Of Contents
Contents INTRODUCTION ..............................03 About this manual ................................03 Limited warranty ..................................03 Environment information ..............................03 Disposal .....................................03 Safety instructions ................................03 Safety information ................................04 PRODUCT OVERVIEW ............................ 05 Models ....................................... 05 Pro outside ..................................... 05 Pro inside ....................................07 Move the water purifier ..............................07 SYSTEM OVERVIEW............................ -
Page 3: Introduction
A CAUTION identifies conditions that can cause injury or, damage to the equipment. Obey the instructions and do not continue until all conditions are accepted and engaged. A Note identifies important information for a trouble free and optimal use of the water purifier. © Bluewater June 2015... -
Page 4: Safety Information
Safety information Install the water purifier in accordance with local regulations. If you are not sure, contact a Bluewater dealer for aid. Bluewater has no responsibility for installation of the water purifier. Only use the cleaned water when the lights “Purification level II and/or III”... -
Page 5: Product Overview
Control panel Feed water connection with grid filter Front cover Clean water rinse valve (CV-models) Clean water connection Air gap bracket Electrical connection for faucet (optional) Rinse water tube Drain water hose Pure water tube Power cord © Bluewater June 2015... -
Page 6: Control Panel
Control panel For information about combinations of lights that flashes/are on, see “Troubleshooting”. Figure 2. Control panel Light/button Description on/off The water purifier is connected to power Off: The water purifier is not connected to power filter I The filter must be replaced. filter II The filter must be replaced. -
Page 7: Pro Inside
Put the water purifier into storage if it will not be used for four months or more, or if it is to be disconnected from the water and electricity for some days, see “Put into storage” on page 25. Figure 5. Move the water purifier © Bluewater June 2015... -
Page 8: System Overview
SYSTEM OVERVIEW System description Without clean water rinse valve Figure 6. System overview Description Description Water purifier Bracket for drain water hose Power cord Clean water hose Feed water hose Clean water faucet (optional Pro 400 series) Drain water hose Complete User manual... - Page 9 Without clean water rinse valve Figure 7. System overview Description Description © Bluewater June 2015...
-
Page 10: Leak Protection System
Leak protection system A sensor at the bottom of the water purifier senses water leaks. If there is a leak, the feed water supply is stopped. The water purifier cannot be started again until the leak has been repaired. Low pressure protection If Pro stops because of low pressure, the cause of the low pressure must be removed. -
Page 11: Water Production
Flush when drawing water. After maximum operation time 15 minutes. (Pro 400B must be manually restarted) Water purifier in standby mode. Pro is connected to water and power. Flush is performed every 12 hours, regardless of when clean water was last produced. © Bluewater June 2015... -
Page 12: Installation
INSTALLATION Install the water purifier in accordance with local regulations. If you are not sure, contact a Bluewater dealer for aid. Bluewater has no responsibility for installation of the water purifier. Install the water purifier in a vertical position on a horizontal surface. -
Page 13: Position Pro
20 mm Affix information decal The accessory box contains an adhesive sheet with information decals in various languages. Select the required language and affix the decal at the indicated place. Figure 12. Affix information decal © Bluewater June 2015... -
Page 14: Install Clean Water Faucet
Install clean water faucet Ø 3-5 mm (1/8”) Ø 13 mm (1/2”) Figure 13. Install clean water faucet Measurement Quarterturn The measurement A is found in the specification that comes with the clean water faucet. Install feed water connection The water purifier is connected to cold water (2 - 40 °C) via the feed water hose. 1/2”... -
Page 15: Install Drain Water Connection
Without clean water rinse valve ×1 ×2 Figure 15. Install drain water connection Minimum Maximum 50 mm 500 mm 50 mm 500 mm With clean water rinse valve Figure 16. Install drain water connection with air gap © Bluewater June 2015... -
Page 16: Connect Water Purifier
Connect water purifier Do not connect the clean water hose to equipment before Pro has been flushed. Without clean water rinse valve 230 V 50 Hz 10 A Figure 17. Connect water purifier With clean water rinse valve Figure 18. Connect water purifier with clean water rinse valve Complete User manual... -
Page 17: After Installation
• when the membrane has been replaced. 10 min 30 s Figure 19. Flush Pro Do a check for leaks The tubing connections must be tight! ×4 Figure 20. Check for leaks © Bluewater June 2015... -
Page 18: Calibration
Calibration Do not drink the water that is produced when the water purifier is calibrated. It is not safe to use. If any of the purification level lights I-III does not go out, go through the checkpoints under Flushing and restart the calibration. If the purification level lights I-III does a wandering flashing light, restart the calibration. -
Page 19: Maintenance
Each month Do a check for leaks The tubing connections must be tight! ×4 Figure 22. Check for leaks Repair leaks 10mm Figure 23. Repair leaks © Bluewater June 2015... -
Page 20: Each 4-6 Months
If Pro has been descaled and the filters have been replaced, but the water flow cannot be restored, contact your Bluewater dealer. The descale takes approximately 10 hours. Do not use the water purifier during this time. Order the descaling product from Bluewater 30 s Complete User manual... - Page 21 2.5dl (200g) 40°C 45 s 10 h 30 s 10 min 30 s Figure 25. Descale © Bluewater June 2015...
- Page 22 Replace prefilter Always flush the water purifier after the prefilter is replaced. See “Flush Pro” on page 17. If the filter is replaced before the fillter light shows that it is necessary, reset/calibrate Pro as given in step 18. The filter light will go on and then go out when Pro is started.
-
Page 23: Each Year
Clean the grid filter The grid filter in the feed water connection catches larger particles. If the flow is decreased or if Pro makes a noise, the grid filter can be blocked. Figure 27. Clean the grid filter © Bluewater June 2015... - Page 24 Use disinfectant to clean the system Disinfectant is harmful! Keep it where children cannot get it. Clean your hands when you have used it. 30 s 20-40°C 0.25 dl (NaClO (75%) 3.5%) 45 s 30 min I + II I + II I + II Complete User manual...
- Page 25 Anti-freeze/preserving agent dosage Preserving agent [L] Water [L] Protection against freezing down to -15 °C down to -30 °C I + II © Bluewater June 2015...
- Page 26 I + II 40 s Figure 29. Put into storage Complete User manual...
- Page 27 Preserving agent is harmful! Keep it where children cannot get it. Clean your hands when you have used it. I + II 48 h +5°C I + II I + II 30 s 10 min 30 s Figure 30. Reinstall after storage © Bluewater June 2015...
-
Page 28: Technical Information
Purified water Sound level [mm (inch)] [kg (lbs)] [W (A)] earthed flow rate [dB(A)] Parameter (US) [l/min (gal/min)] Pro 400B-HR 225×466×460 230V 50-60 Hz, 10A 3.1 ±0.5 < 60 (8.9×18.3×18.1) (64) (xx) (120V, 60Hz, ?A) (0.8 ± 0.13) Pro 400C-HF 225×466×460... -
Page 29: Requirements On Feed Water To Water Purifier
< 1.0/< 0.3 < 0.5 (29-145) (> 2.6) (36-95) (<20.9) (< 1.0/< 0.3) Pro 600CV-HR 2-10 > 10 < 1500 < 2000 2-35 < 20 < 1.0/< 0.3 < 0.5 (29-145) (> 2.6) (36-95) (<20.9) (< 1.0/< 0.3) © Bluewater June 2015... -
Page 30: Troubleshooting
TROUBLESHOOTING How to solve simple problems If Pro stops because of an emergency, disconnect it from power and connect it again, or press calibration button to reset the emergency stop. Symptom Cause Solution Filter I must be replaced. See “Replace prefilter” on page 22. The grid filter is blocked. - Page 31 Flush the water purifier, see “Flush Pro” on water purifier. because the water purifier has not page 17. been used for a week or longer. Clean the water purifier, see “Use disinfectant to clean the system” on page 24. © Bluewater June 2015...
- Page 32 Complete User manual...
- Page 34 Bluewater Group Danderydsgatan 11, SE-114 26 Stockholm Sweden Tel: +46-8-679 45 00 info@bluewatergroup.com - www.bluewatergroup.com For a complete list of sales offices and dealers, please visit www.bluewater.se...
