CH-1000
CH
-1000
CH
CH
-1000
-1000

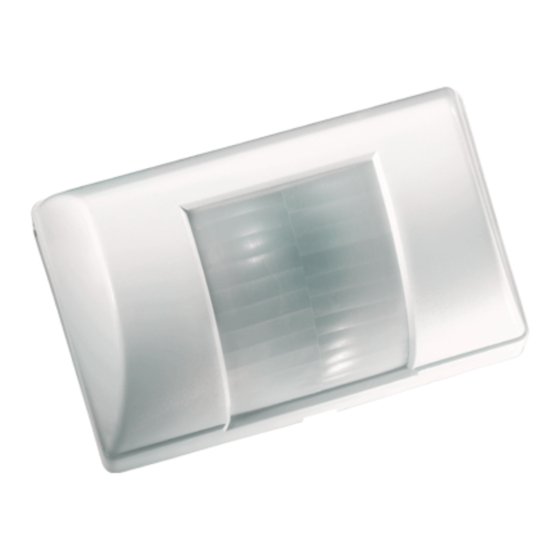

Curtain Passive Infra-Red Detector
1 1 1 1 . INTRODUCTION
. INTRODUCTION
. INTRODUCTION
. INTRODUCTION
The CH-1000 curtain provides solid curtain coverage of maximum
13.5 m length x 6 m height (45 ft x 20 ft).
The CH-1000 may be used for perimeter protection, by setting up
motion detection "curtains" along walls, large show windows,
skylights and ceilings. It can also be used as an internal invisible
barrier to detect movement between two adjacent areas. The
CH-1000 can be mounted on the wall or on the ceiling.
2 2 2 2 . COVERAGE PATTERNS
. COVERAGE PATTERNS
. COVERAGE PATTERNS
. COVERAGE PATTERNS
Various mounting alternatives
are available, each of which
provides
different
coverage
patterns as a solid curtain:
A. Wall Mounted (Figure 1)
The unit should be mounted on
the wall at a maximum height of
6.0 m (20 ft). It provides solid
curtain coverage, extending out
from the mounting wall to the
opposite wall up to a maximum
distance of 13.5 m (45 ft) and
down to the floor. The unit must
be mounted horizontally, with
the lens pointed downward,
toward the floor.
B. Ceiling Mounted (Figure 2)
The unit is mounted on the
ceiling at a maximum height of
6.0 m (20 ft). It provides solid
curtain
coverage,
extending
down to the floor and away from
the unit up to a maximum
distance of 13.5 m (45 ft).
The unit must be mounted with
the lens pointed towards the
desired direction of the curtain
coverage.
3 3 3 3 . SPECIFICATIONS
. SPECIFICATIONS
. SPECIFICATIONS
. SPECIFICATIONS
OPTICAL
Detection Patterns:
Solid Curtain with maximum coverage pattern of 13.5 m length
and 6 m height (45 x 20 ft). Other patterns see above.
Adjustment: Horizontal
±
7° calibrated to the left or right side.
ELECTRICAL
Voltage: 9 to 16 VDC.
Current: 20 mA.
Relay Output: Normally closed (tail safe) contacts. 18 ohm
resistor in series with contacts. Rating - 0.1A resistive 30 VDC.
Alarm Period: 2-5 seconds.
Tamper Contacts: Normally closed. Rating - 0.5A resistive/
30 VDC.
LED: Walk Test - Enabled or disabled with internal link.
DE1100
Figure 1. Wall Mounted Curtain
Figure 2. Ceiling Mounted Curtain
Installation Instructions
A unique calibrated scale enables
horizontal pattern adjustment of
+7
°
to the left or to the right.
A double polarity, programmable
pulse counter provides maximum
immunity against environmental
disturbances.
C. Pet Alley (Figure 3)
Pet-alley curtain can be created
by installing the CH-1000 on the
wall, near the floor, with the lens
pointed toward the ceiling.
D. Skylight (Figure 4)
This
method
is
useful
detection of entry through the
ceiling or skylights. Install the unit
as close as possible to the ceiling
area or skylights to be protected
and close to a corner of the
protected area
:
Note
Maintain
a
minimum
vertical distance of 0.5 m (1.5 ft)
from the ceiling or skylights.
The unit is installed with its long
axis vertical, so that the coverage
pattern will be parallel to the floor
(rotated
90
from
the
°
mounted installation - see Fig. 1).
The maximum coverage of this
installation is 5 x 5 m (17 x 17 ft).
The field of view is 90
°
extending,
from the unit toward the opposite
wall and along the wall on which
the
unit
is
mounted
in
direction that the lens is facing.
Detector: Dual-element low noise pyroelectric detector.
Pulse Counter: A selector for 1 / 2 pulses with opposite polarity.
MOUNTING
Wall or ceiling mounting.
ENVIRONMENTAL
Operating Temperature: 0° to 49°C (32°F to 120°F).
Storage Temperature: -20° to 60°C (-4°F to 140°F).
PHYSICAL
Dimensions: 105 x 65 x 53 mm (4.1 x 2.5 x 2.1 in.).
Weight: 90 g (3.2 oz)
Color: Soft White.
MODELS AVAILABLE
CH-1000: Standard model
CH-1000S: Same as CH-1000, but with Form-1C relay contacts.
for
Figure 3. Pet Alley Curtain
wall
the
Figure 4. Skylight Solid Curtain
