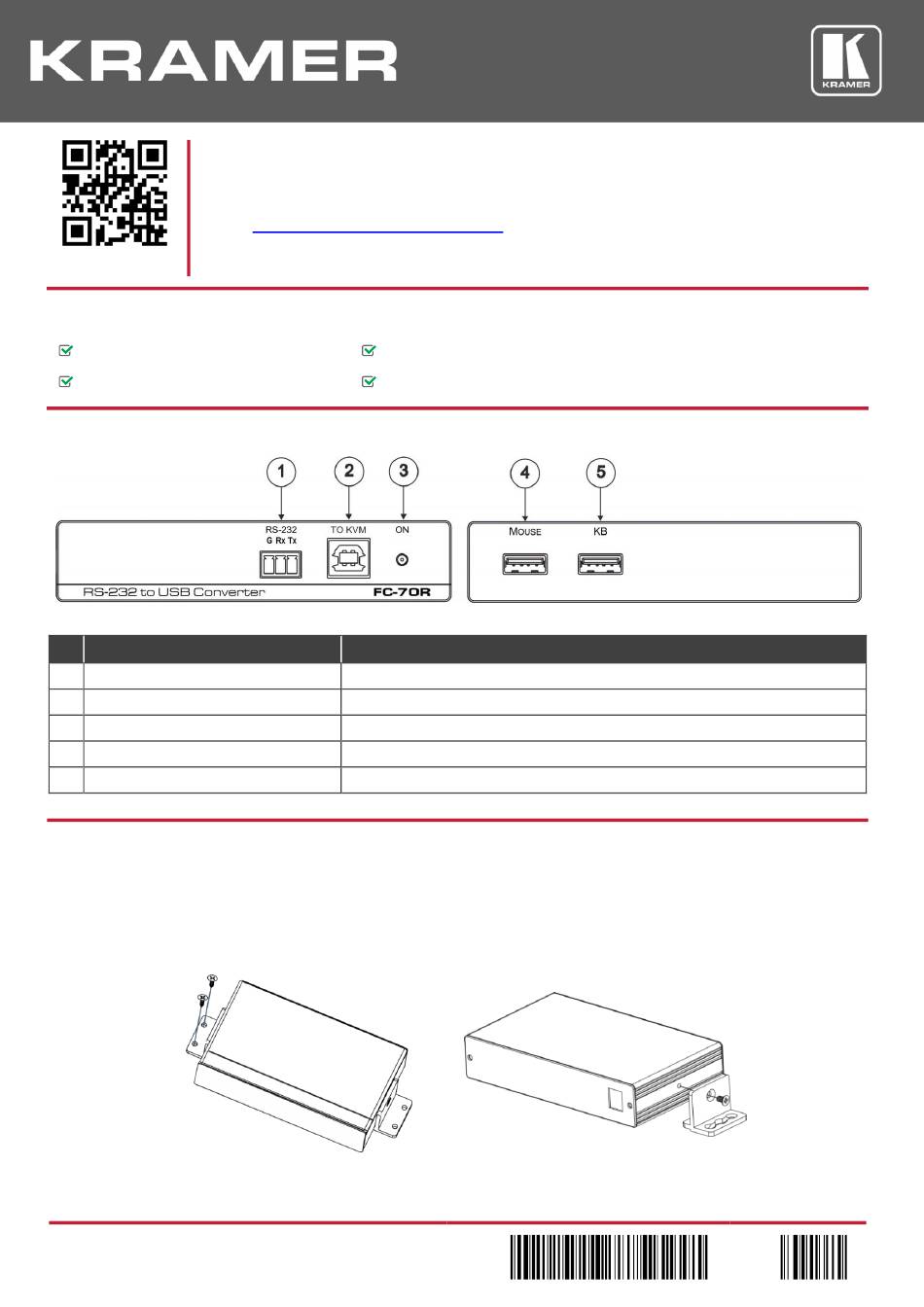

FC-70R Quick Start Guide
This guide helps you install and use your FC-70R for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
FC-70R RS-232 to USB Converter
1 Quick start guide
Step 2: Get to know your FC-70R
#
Feature
1
RS-232 Terminal Block
2
USB-B Connector
3
ON LED
4
MOUSE USB-A Connector
5
KB USB-A Connector
Step 3: Install the FC-70R
Attach the rubber feet and place on a table or mount the FC-70R in a rack (using an optional RK-3T rack mount).
A Kramer TOOLS™ can also be mounted on a desk top, wall or similar area. Fasten a bracket on each side of the TOOLS
using the two M3x8 screws (supplied). Use the flat-head screws (supplied) to fix the TOOLS to the mounting surface or
enable it to slide in place.
FC-70R Quick Start (P/N: 2900-300611QS REV 1)
www.kramerav.com/downloads/FC-70R
4 Rubber feet
1 Bracket set
Function
Connects to a control device
Connects to and receives power from a KVM or KVM combiner being controlled
Lights when the device is powered on
Connects to a USB mouse
Connects to a USB keyboard
to download the latest user manual and check if firmware
P/N: 2 9 0 0 - 3 0 0 6 1 1 QS
Rev: 1
