STEP 2
Attach Back Panel(C)to assembled unit using Power Pin(2).
Recommended Maximum Weight
20
20
20
20
*Unit in Pound(lbs)
(2)x 24pcs
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Recomm. 2 Person
Tools Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction

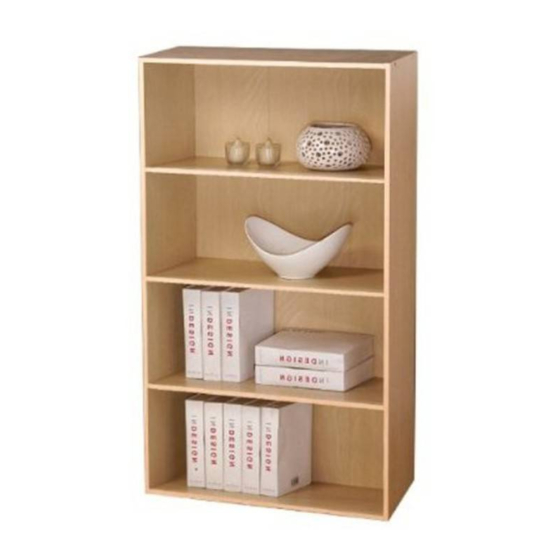

Furinno Pasir 4 Tier Open Shelf
11209
MODEL
:
DIMENSION :
23.6"(W) x 41.7"(H) x 9.4"(D)
1120920140418
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furinno 11209
Summary of Contents for Furinno 11209
- Page 1 STEP 2 Attach Back Panel(C)to assembled unit using Power Pin(2). its Space. its Budget Assembly Instruction Furinno Pasir 4 Tier Open Shelf 11209 MODEL DIMENSION : 23.6”(W) x 41.7”(H) x 9.4”(D) Approx. 30 minutes (2)x 24pcs Recomm. 2 Person Recommended Maximum Weight...
- Page 2 STEP 1 Hardware List Parts List 1.1 Attach Left Side Panel(A)with Shelf Panel(B)using Screw(1). L/R Side Panel Chipboard Screw 2pcs 20pcs 1.2 Attach Right Side Panel(A)with completed unit in Step 1.1 using Screw(1). Shelf Panel 5pcs Power Pin 24pcs Back Panel 1pcs (1)x 20pcs USEFUL HINTS BEFORE YOU START:...
