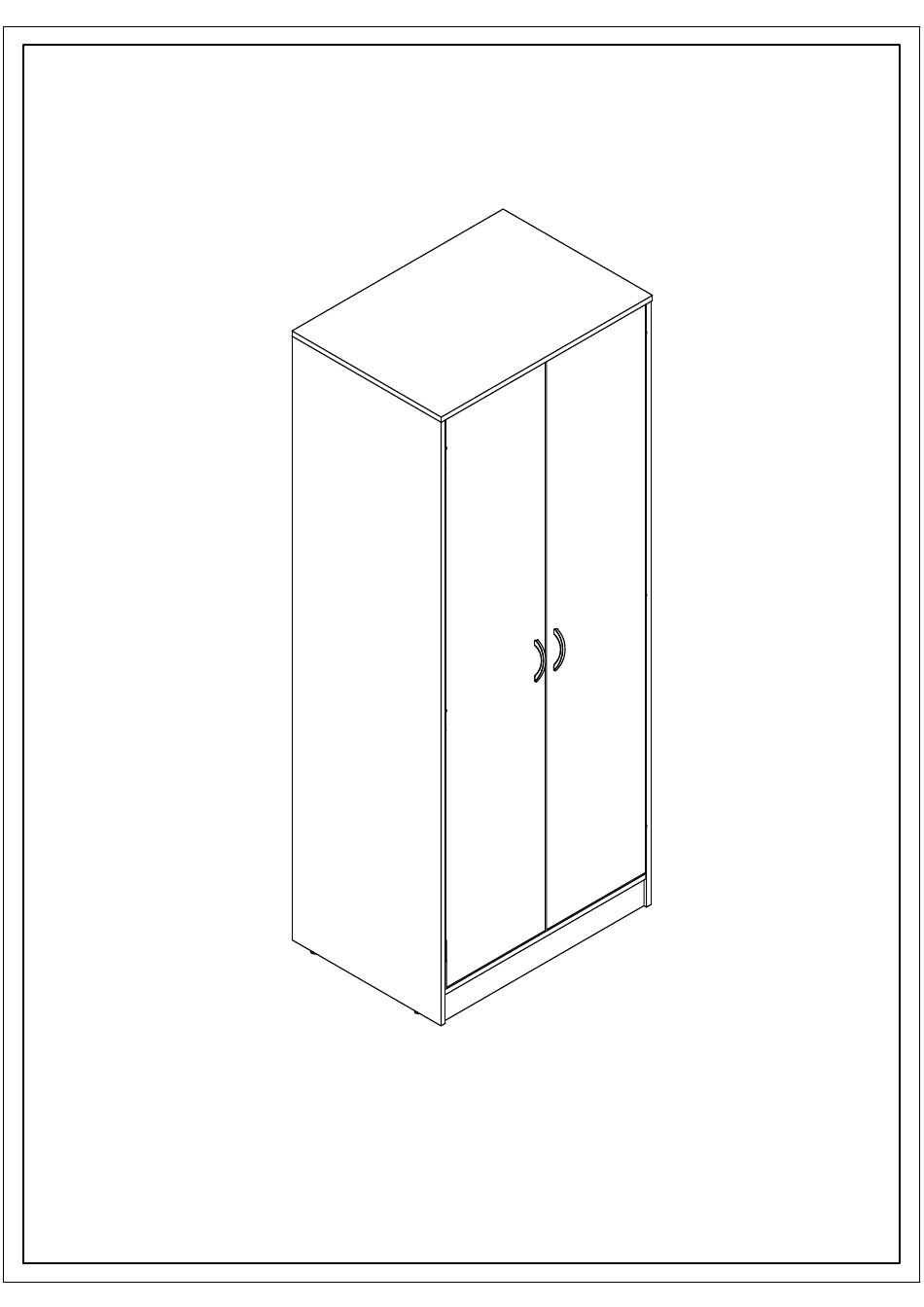

- Page 1 MODEL: 11222 NO-TOOL 2 DOOR WARDROBE Rev: 01...
- Page 2 BEFORE YOU BEGIN, PLEASE READ ASSEMBLY INSTRUCTIONS CAREFULLY. FOLLOW THEM STEP BY STEP. CAUTION: ADULT SUPERVISION IS REQUIRED DUE TO SMALL PARTS. CARE SHOULD BE TAKEN IN THE UNPACKING AND ASSEMBLY OF THE PRODUCT. 2. ASSEMBLE ON SOFT SURFACES TO PREVENT DAMAGE TO THE PRODUCT FINISH.
-
Page 3: Assembly Instruction
ASSEMBLY INSTRUCTION STEP 1 INSERT DOWEL (1) INTO THE PRE-HOLES ON PANEL (D), (F) AND (G). STEP 2 INSERT MAGNECTIC CATCHES (2) INTO THE PRE-HOLES ON PANEL (A) & (D). STEP 3 ATTACH PANEL (G) & (F) TO PANEL (B). TURN ON CAM LOCK AND FIX INTO THE PRE-DRILL NUT. - Page 4 STEP 4 ATTACH PANEL (D) TO PANEL (B). REPEAT THE SAME METHOD AS STEP 3. STEP 5 ATTACH PANEL (C) TO ASSEMBLED UNIT. REPEAT THE SAME METHOD AS STEP 3.
- Page 5 STEP 6 ATTACH PANEL (A) TO ASSEMBLED UNIT. REPEAT THE SAME METHOD AS STEP 3. STEP 7 FACE DOWN THE UNIT AND ATTACH PANEL (H). INSERT PLASTIC PIN & NUT (6) INTO THE PRE-HOLES OF PANEL (H). (6) x 8sets...
- Page 6 STEP 8 INSERT PLASTIC STOPPER (7) INTO THE BALANCE OF PRE-DRILLED HOLES OF PANEL (H). STEP 9 UPRIGHT THE UNIT. FIX PANEL (E) TO PANEL (B) & (C) WITH HINGE PIN (5).
- Page 7 STEP 10 INSTALL HANDLE SET (3) TO PANEL (E). PLACE THE HANGING RAIL (4) ON THE HOLDER. This unit is intended for use only with the products and maximum weights indicated. Use with other products or products heavier than the maximum weights indicated may result in instability causing possible injury.
