STEP 7
Attach Panel(E),(C)to completed unit in
Step 6,as shown:
STEP 9
Attach Panel(E),(D)to completed unit in
Step 8,as shown:
STEP 11
Attach Back Panel(F)to assembled unit
with Power Pin(6).
(4)x 22pcs
Recommended Maximum Weight
15
15
15
15
15
*Unit in Pound(lbs)
STEP 8
Install Panel(C)to L/R Side Panel(A)using
Long Screw(1).
(1)x 4pcs
STEP 10
Install Panel(D)to L/R Side Panel(A)using
Long Screw(1) .
(1)x 4pcs
STEP 12
Attach Handle(4)on Door Panel(E)using
Short Screw(5).
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Approx. 20 minutes
Approx. 15 minutes
Approx. 5 minutes
Recomm. 2 Person
Recomm. 1 Person
Tools Required
Tool Required
Tool Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction

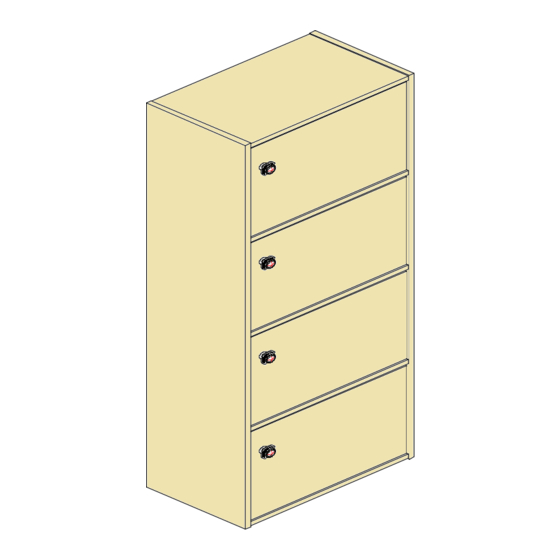

Furinno Pasir 4 Tier Bookcase with
Door w/Round Handle
11203
MODEL
:
DIMENSION :
15.8"(W) x 41.7"(H) x 9.4"(D)
1120320140418
