STEP 2
Attach Back Panel(C)to assembled unit using Power Pin(2).
Recommended Maximum Weight
20
20
20
*Unit in Pound(lbs)
(2)x 22pcs
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Approx. 30 minutes
Approx. 20 minutes
Approx. 15 minutes
Approx. 5 minutes
Recomm. 2 Person
Recomm. 1 Person
Tools Required
Tool Required
Tool Required
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
www.furinno.com
Assembly Instruction

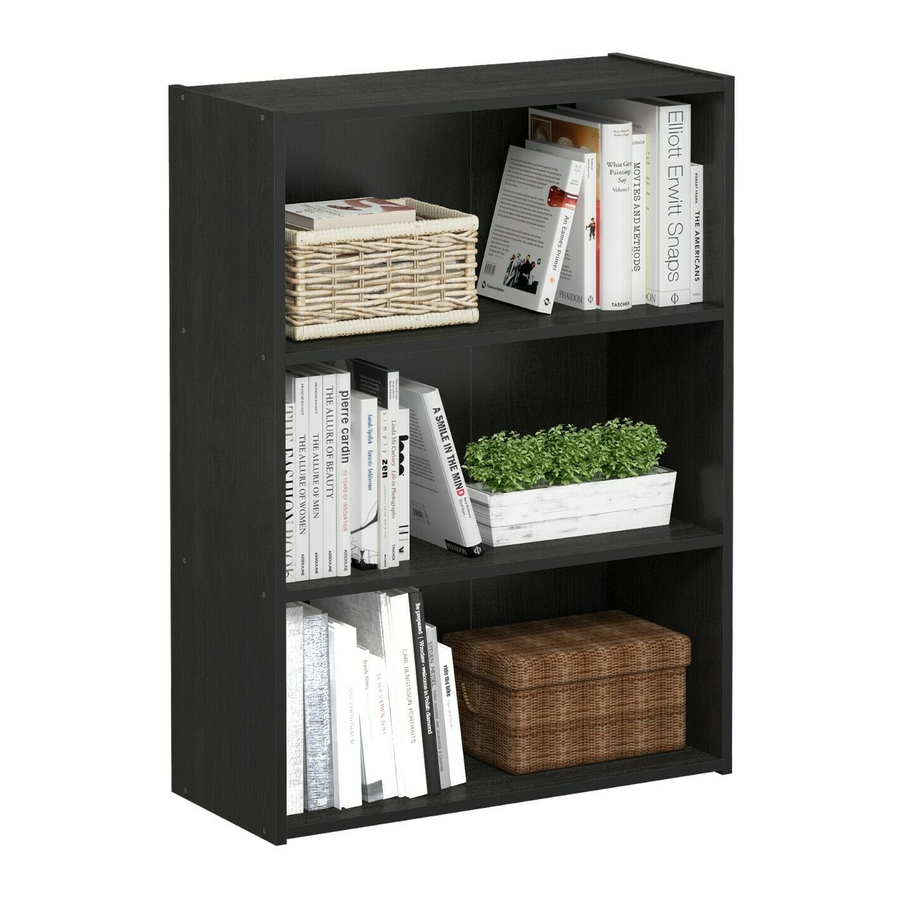

Furinno Pasir 3 Tier Open Shelf
11208
MODEL
:
DIMENSION :
23.6"(W) x 31.5"(H) x 9.4"(D)
1120820140423
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Furinno 11208
Summary of Contents for Furinno 11208
- Page 1 STEP 2 Attach Back Panel(C)to assembled unit using Power Pin(2). its Space. its Budget Assembly Instruction Furinno Pasir 3 Tier Open Shelf 11208 MODEL DIMENSION : 23.6”(W) x 31.5”(H) x 9.4”(D) Approx. 15 minutes Approx. 20 minutes Approx. 30 minutes Approx.
- Page 2 STEP 1 Hardware List Parts List 1.1 Attach Left Side Panel(A)with Shelf Panel(B)using Screw(1). L/R Side Panel Screw 2pcs 16pcs 1.2 Attach Right Side Panel(A)with completed unit in Step 1.1 using Screw(1). Shelf Panel 4pcs Power Pin 22pcs Back Panel 1pcs (1)x 16pcs USEFUL HINTS BEFORE YOU START:...
