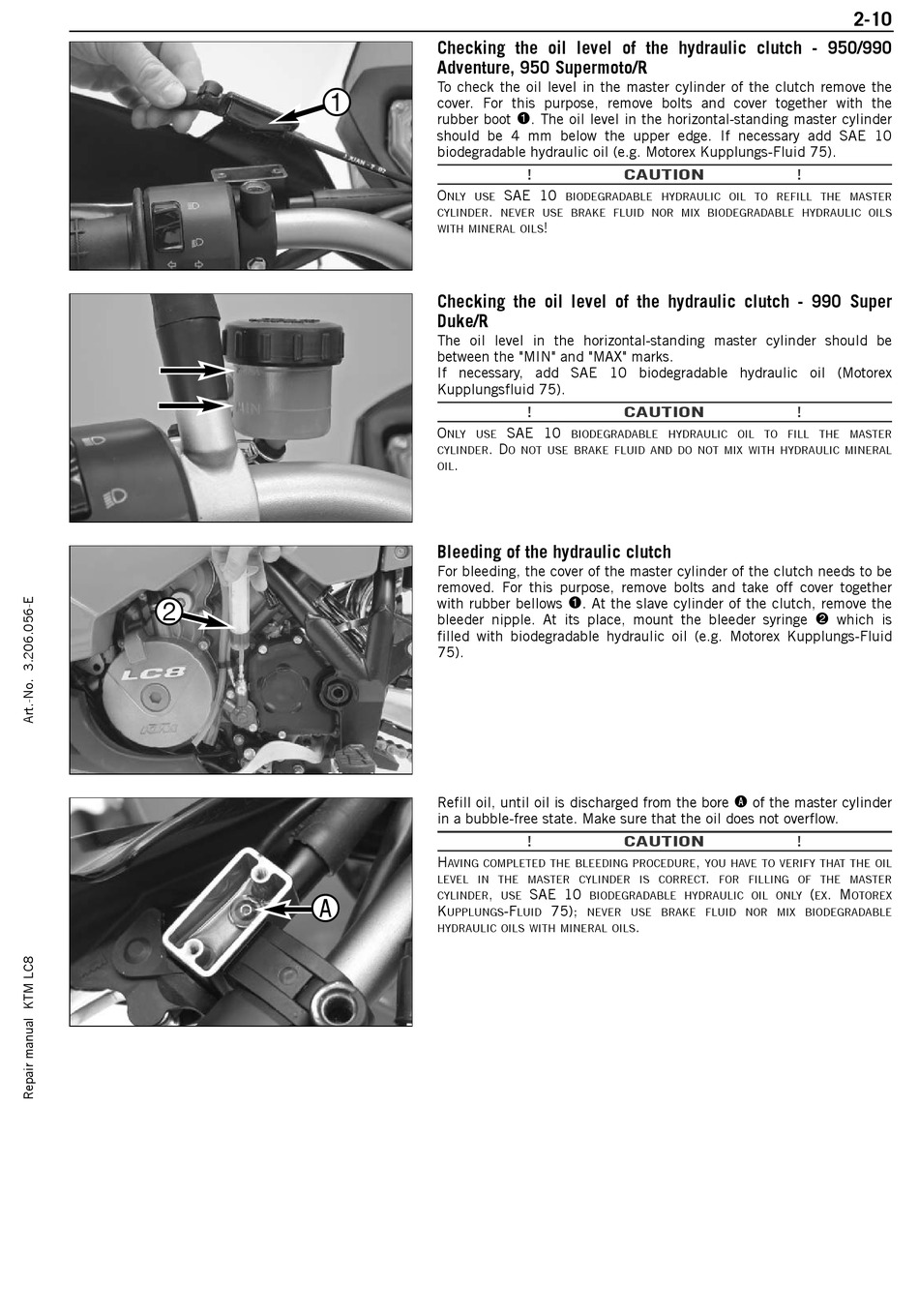

Checking the oil level of the hydraulic clutch - 950/990

Adventure, 950 Supermoto/R
To check the oil level in the master cylinder of the clutch remove the
cover. For this purpose, remove bolts and cover together with the
rubber boot . The oil level in the horizontal-standing master cylinder
1
should be 4 mm below the upper edge. If necessary add SAE 10
biodegradable hydraulic oil (e.g. Motorex Kupplungs-Fluid 75).
!
O SAE 10
NLY USE BIODEGRADABLE HYDRAULIC OIL TO REFILL THE MASTER
.
CYLINDER NEVER USE BRAKE FLUID NOR MIX BIODEGRADABLE HYDRAULIC OILS
!
WITH MINERAL OILS
Checking the oil level of the hydraulic clutch - 990 Super
Duke/R
The oil level in the horizontal-standing master cylinder should be
between the "MIN" and "MAX" marks.
If necessary, add SAE 10 biodegradable hydraulic oil (Motorex
Kupplungsfluid 75).
!
O SAE 10
NLY USE BIODEGRADABLE HYDRAULIC OIL TO FILL THE MASTER
. D
CYLINDER O NOT USE BRAKE FLUID AND DO NOT MIX WITH HYDRAULIC MINERAL
.
OIL

Bleeding of the hydraulic clutch

For bleeding, the cover of the master cylinder of the clutch needs to be
removed. For this purpose, remove bolts and take off cover together
with rubber bellows . At the slave cylinder of the clutch, remove the
1
bleeder nipple. At its place, mount the bleeder syringe
filled with biodegradable hydraulic oil (e.g. Motorex Kupplungs-Fluid
75).
Refill oil, until oil is discharged from the bore
in a bubble-free state. Make sure that the oil does not overflow.
!
H
AVING COMPLETED THE BLEEDING PROCEDURE
LEVEL IN THE MASTER CYLINDER IS CORRECT
, SAE 10
CYLINDER USE BIODEGRADABLE HYDRAULIC OIL ONLY
K -F 75);
UPPLUNGS LUID NEVER USE BRAKE FLUID NOR MIX BIODEGRADABLE
HYDRAULIC OILS WITH MINERAL OILS
CAUTION !
CAUTION !
of the master cylinder
A
CAUTION !
,
YOU HAVE TO VERIFY THAT THE OIL
.
FOR FILLING OF THE MASTER
.
2-10
which is
2
( . M
EX OTOREX
