Appendix A: Electropherogram Examples

The figures in this section are examples from an Agilent® 2100 Bioanalyzer
electropherogram of a harvested PCR product pool. The first two figures show a DNA 1000
Chip electropherogram of a pooled PCR product with 48 amplicons ranging between 180–
350 bp.

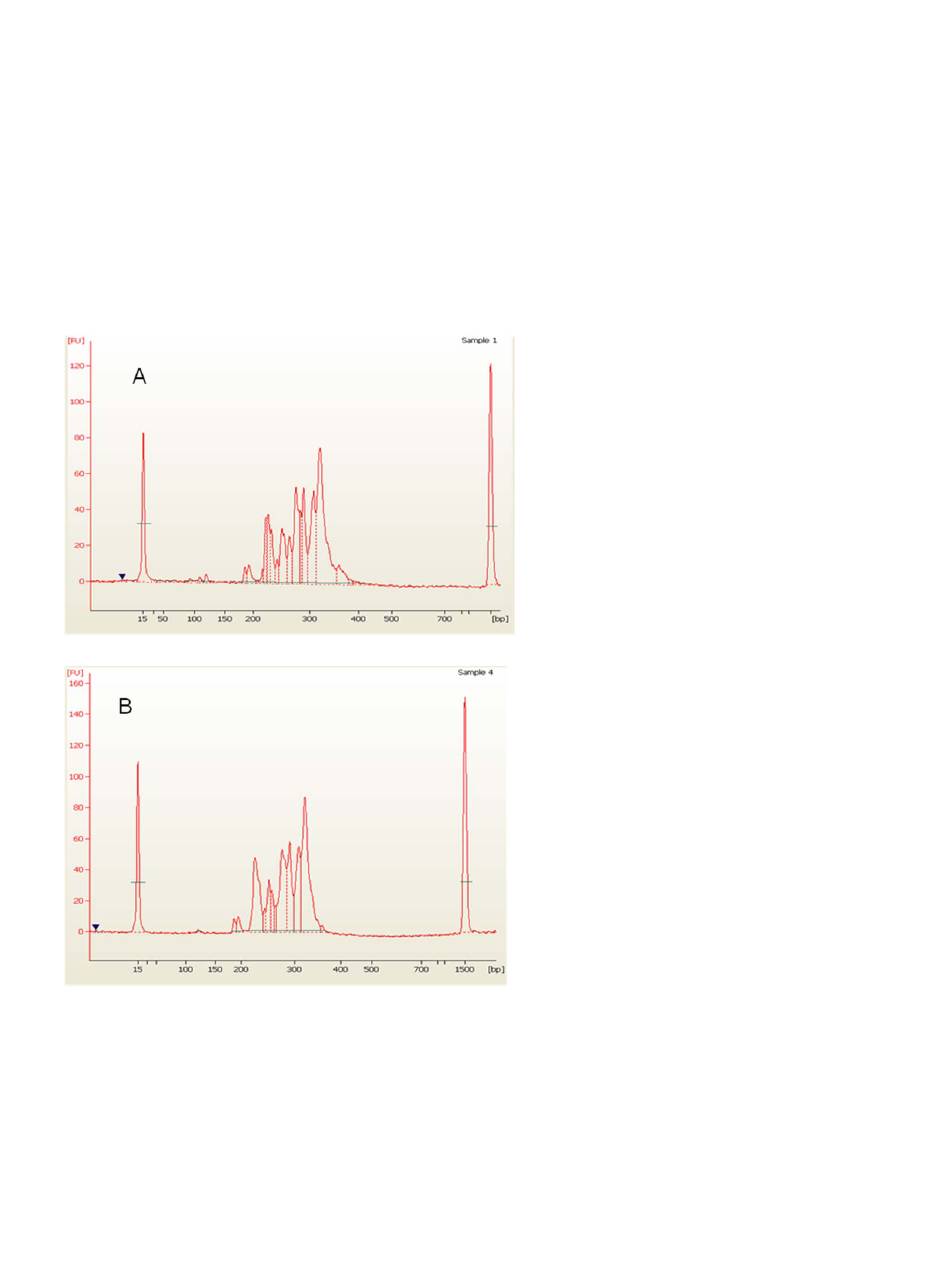

Figure A shows the harvested PCR product pool from a Access Array 48.48 IFC, and Figure B
shows the same harvested PCR product pool after SPRI cleanup:
