Charging Instructions - PowerBox Systems PowerBox 12 Operating Instructions Manual

Both batteries can be charged simultaneously by means of the integral charge
socket fitted to the switch case (MPX connector: increased current capacity),
provided that a standard battery charger is used, e.g. the Robbe Lader 5, Graup-
ner Multilader 6, Titan etc. Automatic chargers and reflex chargers must not be
used, because these units are only capable of processing one battery at one
charge output. When charging takes place, this means that the two batteries are
separated in the backer by an additional pair of de-coupling diodes. Both batteries
must be disconnected from the backer if you wish to fast-charge them.
The total current through the charge socket should not exceed 2 A.

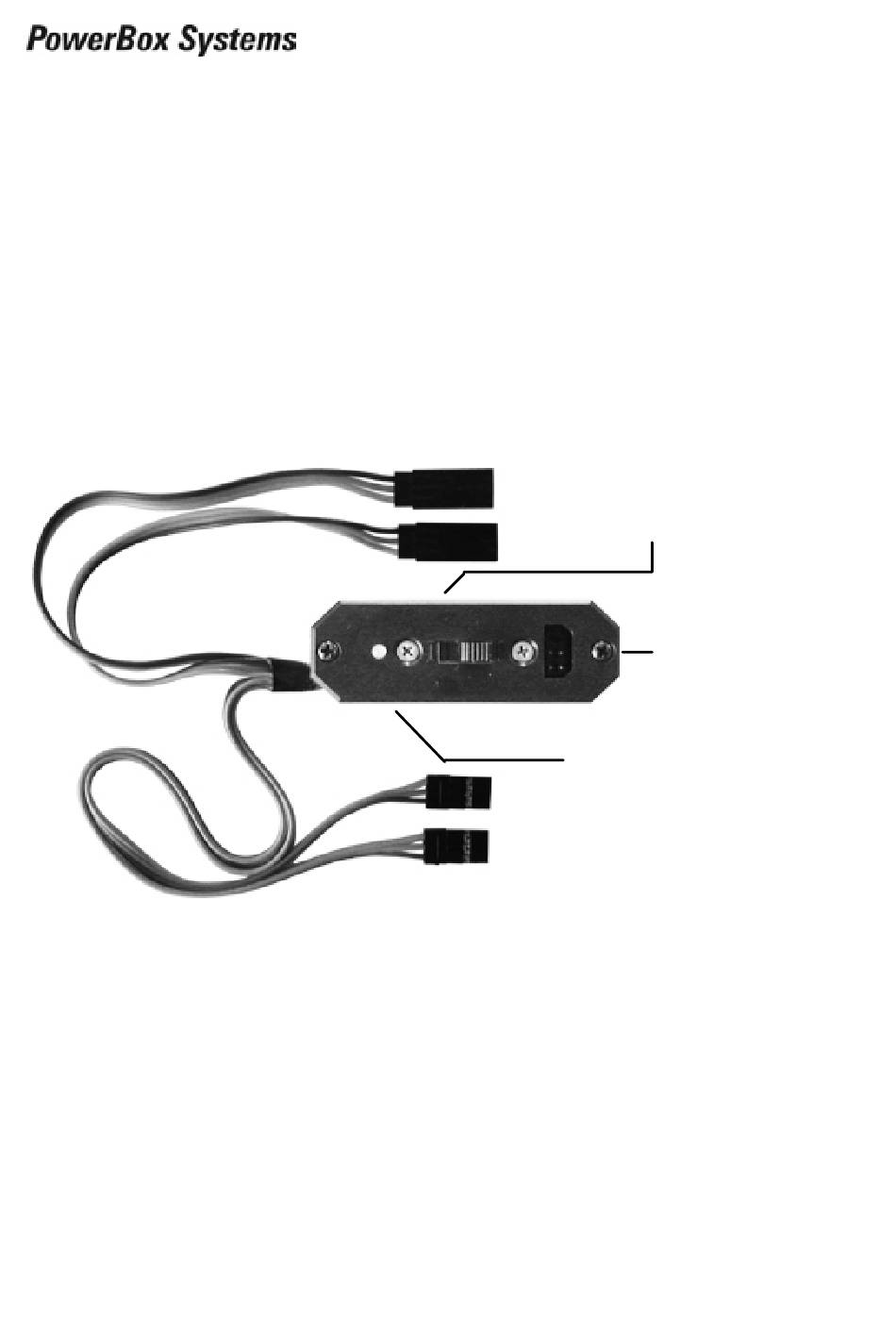

The Power Box 12 is
integrated in the case
of our Power Switch.
Tricolor LED
(green, red, orange)
for battery 1, battery 2,
or both batteries.
- -
4
POWER BOX 12
Socket for battery
charger.
Both Batterys may
be charged at the
same time.
