Installation

Placing APEX Devices

The APEX Access Device (APEX) controls entry to or exit from a
secured area. It works in conjunction with a controller and control
software. The APEX can be used to control gate access, building
access, room access, elevator access, etc. and is designed for ease
of use and flexibility. Both the keypad and the large LCD are backlit
for easy visibility day and night. Mounting height for devices will
vary with local code regarding handicap access, emergency and
fire access, and other regulations.
Before installing the APEX determine where and how the device
will be installed, since the mounting location is determined by how
the device will be used. For drive up access, install the device where
it can be reached from a vehicle's driver door. If the APEX is used for
walk up access, install it where it can be accessed by a person on foot.

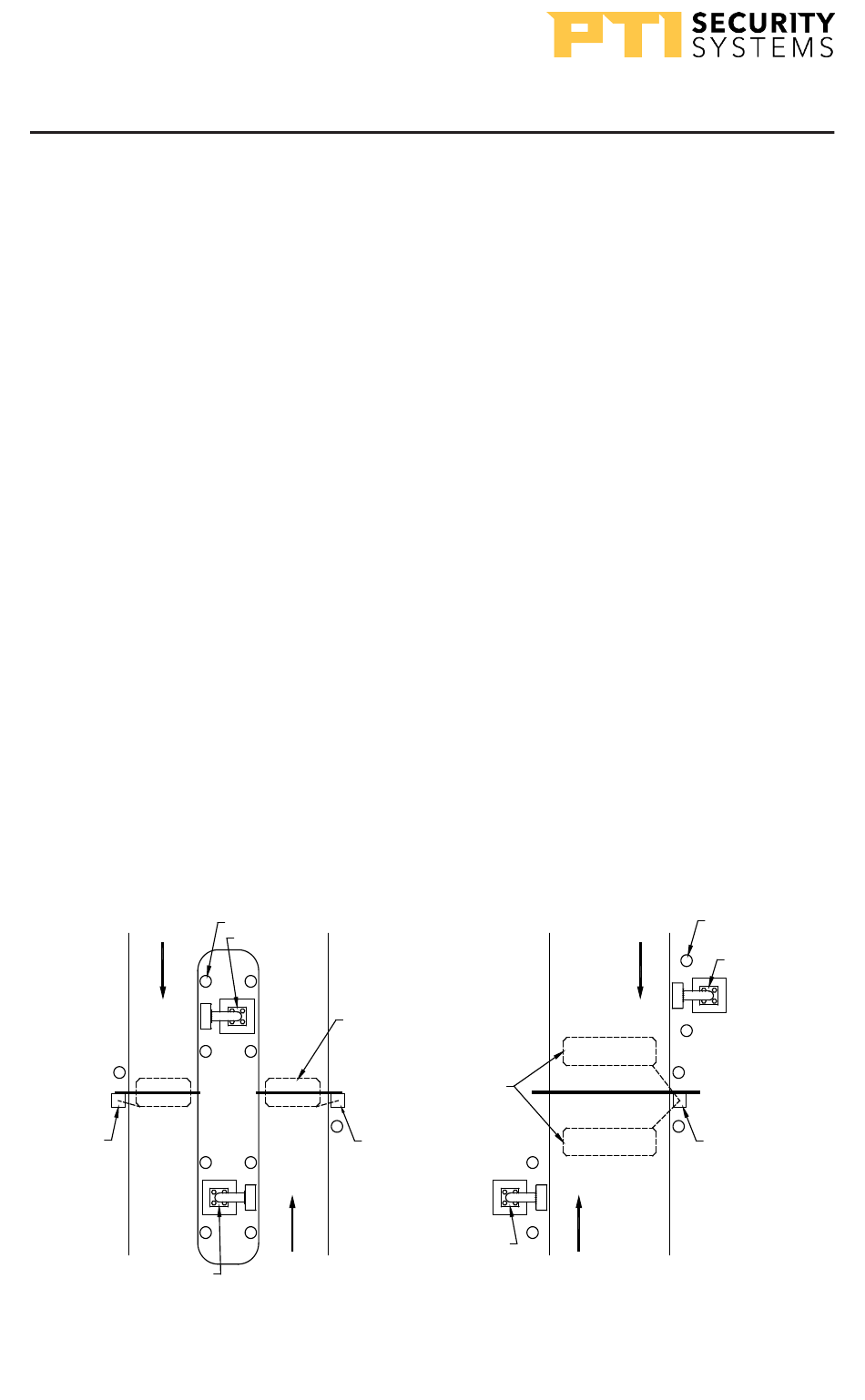

Drawing 1: Drive up accessability
Inside of property
BARRIER
OR PAD
ENTRY KEYPAD
Outside of property
2
DETECTOR
LOOP
DETECTOR
LOOPS
BARRIER
OR PAD
ENTRY KEYPAD
Inside of property
Outside of property
114A3863.E rev. 7-2017
BOLLARD
EXIT KEYPAD
SLIDE GATE
OR PAD
