APEX Access Device

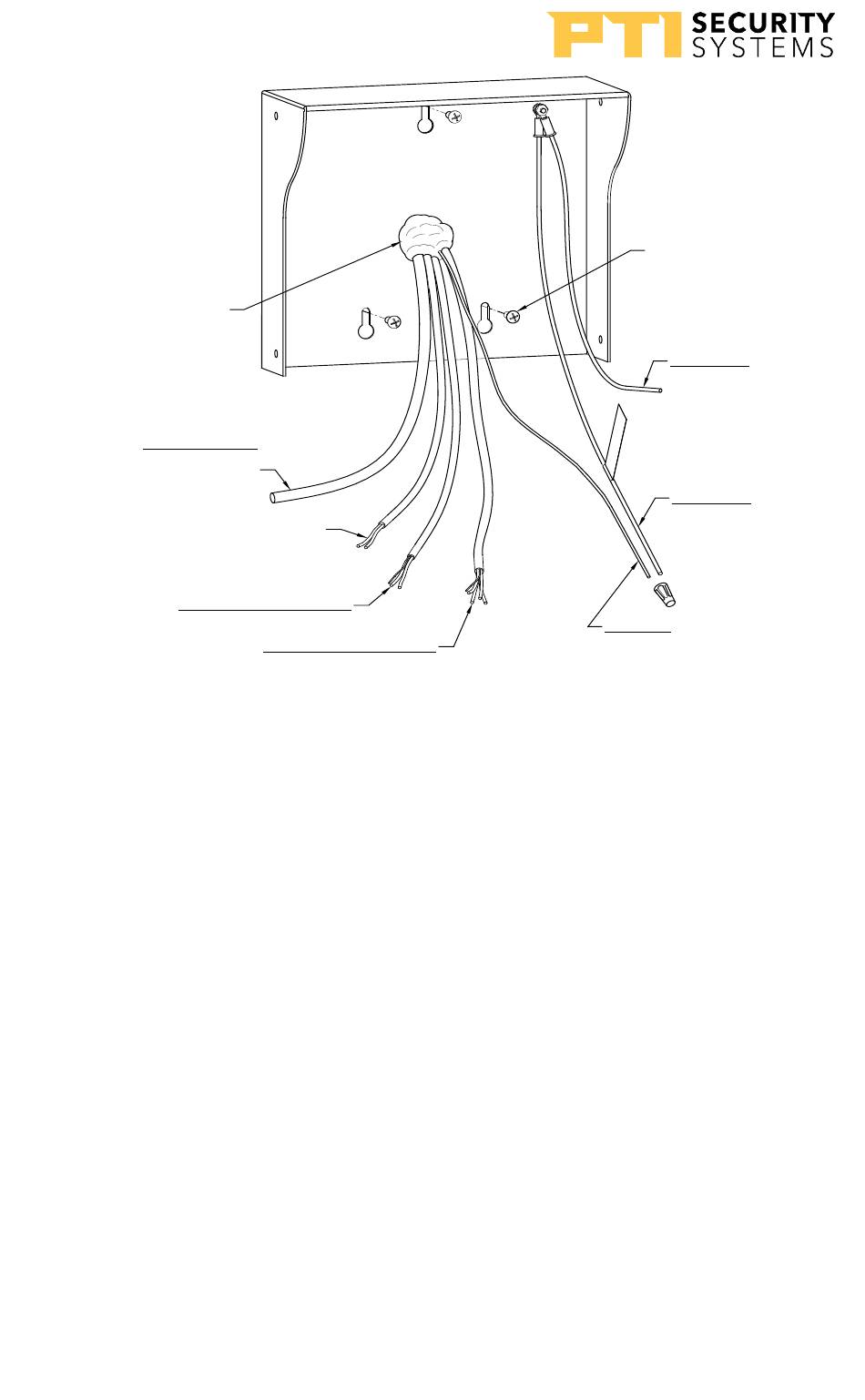

Drawing 10: KP wiring
for the APEX keypad
Cover hole
with silicone
RG 59U Camera Cable
(If optional camera is part
of this device)
18GA, 2-Conductor Unshielded Cable
(only if relay in this device used to
trigger Gate/Door Strike)
18GA, 2-Conductor Shielded Cable
-
One of 18 AWG, 4-conductor, shielded cable coming in
from the controller or from the previous AI device in line.
-
One of 18 AWG, 4-conductor, shielded cable going out to
the next AI device in line (if there is another AI device down
the line).
-
One of earth ground wire
-
One or two of 18 AWG, 2-conductor cable(s) coming from
the gate operator or door strike.
A cable for the door strike or gate operator will only be
present if the relay inside the specific keypad is used to
trigger the door or gate. The controller can be configured
to trigger a gate or door using relays on the circuit board,
a separate relay board, or any other AI device.
For security reasons, the relay in the keypad nearest
a door or gate should not be the one used to directly
trigger the door or gate.
12
(for Intercom)
18GA, 4-Conductor Shielded Cable
(RS485, may have more than one
cable to daisy-chain to other
Access interface devices
8-32 x 3/8" Screws
(qty 3)
Chassis Ground
(connected to keypad)
Chassis Ground
(connect to Earth Ground
with wire nut and tape)
Earth Ground
(connect to Chassis Ground
with wire nut and tape)
