APEX Access Device
4 6 . 0
0 "

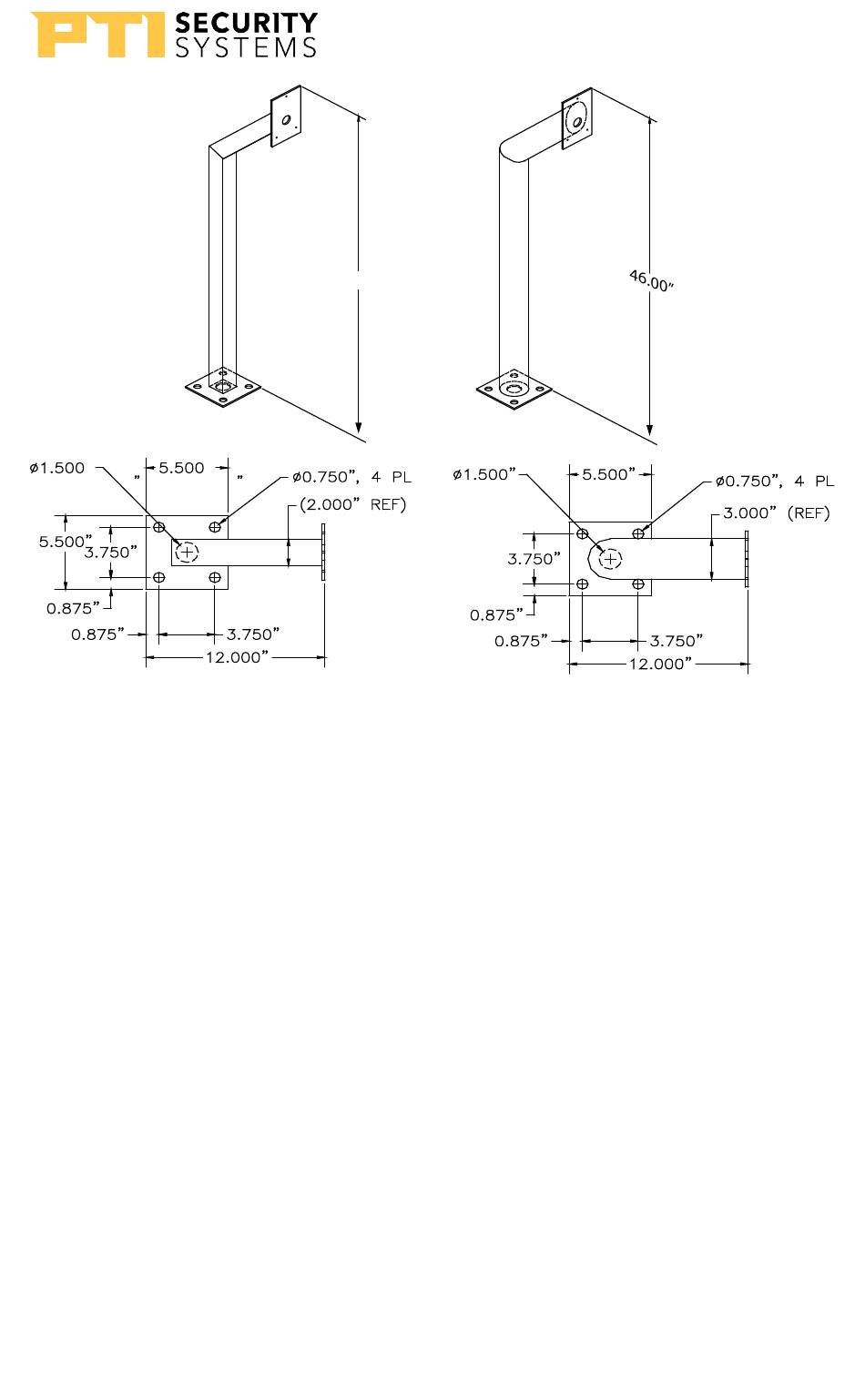

Drawing 6: Gooseneck stand mount
This gooseneck also gives wheelchair users access to a device.
Mounting height is generally 48" – 58" from finished floor to the
'5' button on the touchpad for walk-up access and 45 inches from
driveway level to the '5' button on the touchpad for vehicular
access.
If the APEX is installed on an exterior wall, seal the contact point
between the housing and the wall with a silicone sealant rated for
outdoor use. This prevents moisture and insects from getting into
the housing.
