Summary of Contents for Clarke IQ2000

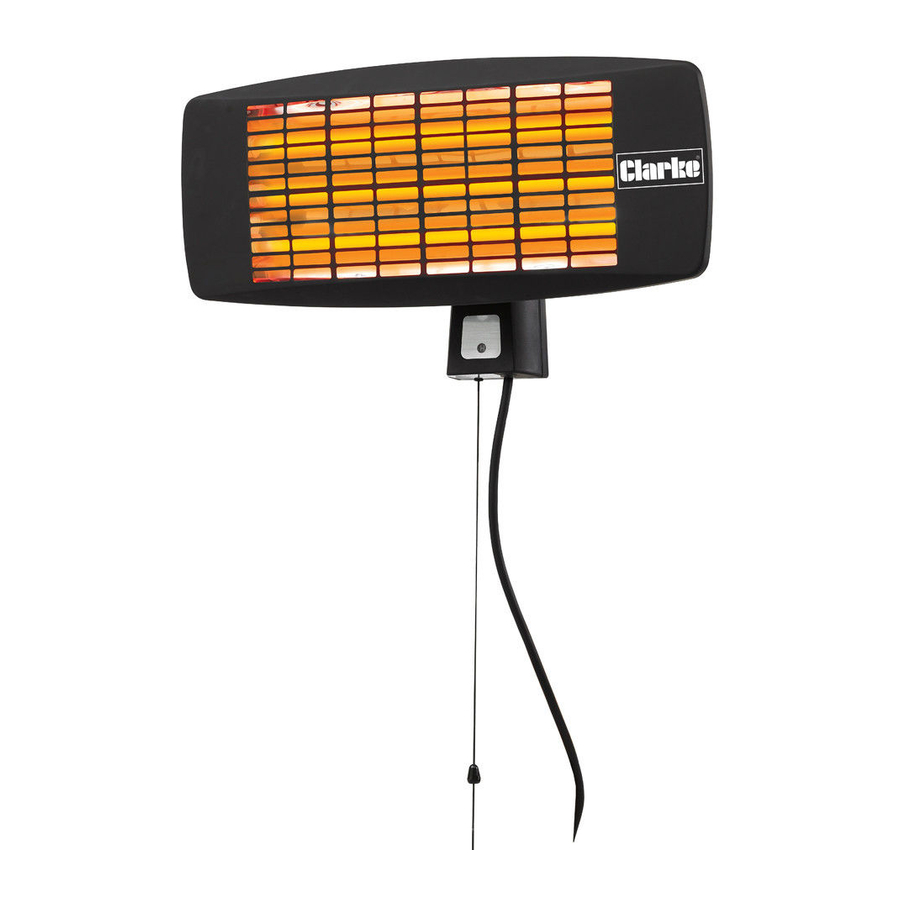

- Page 1 INFRARED QUARTZ WALL HEATER MODEL NO: IQ2000 PART NO: 6939004 MOUNTING & OPERATION INSTRUCTIONS GC0715...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE Infrared Wall Heater. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. -
Page 3: Safety Precautions
2. Always check for damage before using the heater. Any damage should be properly repaired or the part replaced. If in doubt, DO NOT use the heater and consult your local Clarke dealer. 3. Never carry out any modifications to this product. If experiencing difficulty of any kind consult your local dealer. -
Page 4: Personal Safety
PERSONAL SAFETY 1. When the heater is to be operated in the presence of other people the user is responsible for informing those present of the safety precautions and of the hazards involved. 2. The heater is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! READ THESE ELECTRICAL SAFETY INSTRUCTIONS THOROUGHLY BEFORE CONNECTING THE PRODUCT TO THE MAINS SUPPLY. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 6: Mounting The Heater
PREPARATION UNPACKING Remove heater from the carton and check for any damage sustained in transit. Notify your Clarke dealer immediately of any defects. MOUNTING THE HEATER The heater is resitant to splashing but should be sheltered from direct rainfall, as should the power cable, plug and supply outlet socket. If used outdoors, an awning, overhanging roof or other shelter should be used to protect from rain. -
Page 7: Operation
3. Ensure heating elements are free of dust (use compressed air to clean if possible. (ALWAYS wear a dust mask if performing this task). 4. Refer to your Clarke dealer if the heater element needs replacing. Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 8: Fault Finding
Fuse blown. Replace if necessary and investigate the cause. If fuse blow repeatedly, consult your Clarke dealer. No power at socket Insert plug into an outlet operational socket. Input voltage incorrect. Ensure power supply matches the rating on the label. -
Page 9: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 10: Parts List
PARTS LIST DESCRIPTION DESCRIPTION Front Housing Front Housing Clip Internal Wire Assembly Heating Element PVC Sticker Self-tapping Screw Cable Bush Reflector Bracket Drawing Bush Reflector Display Disc Cable Clamp Cable Clip Plastic Plug Self tapping Screw Switch Spring Washer Self tapping Screw Rear Housing Self tapping Screw Hinge Board... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
