Operating Instructions

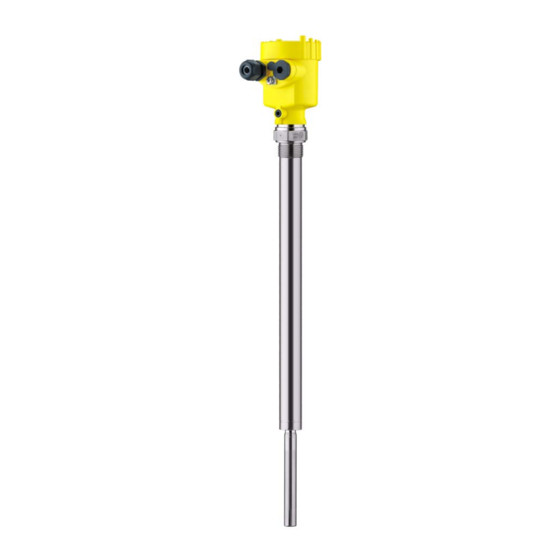

Vibrating level switch with tube
extension for granuled bulk solids
VEGAVIB 63
Relay (DPDT)
Document ID: 29277

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VEGAVIB 63 and is the answer not in the manual?

Questions and answers

Related Manuals for Vega VEGAVIB 63

Summary of Contents for Vega VEGAVIB 63

  • Page 1 Operating Instructions Vibrating level switch with tube extension for granuled bulk solids VEGAVIB 63 Relay (DPDT) Document ID: 29277...

  • Page 2: Table Of Contents

    How to proceed if a repair is necessary ................25 Dismount..........................27 Dismounting steps......................27 Disposal ......................... 27 Supplement ..........................28 Technical data ........................ 28 Dimensions ........................31 Industrial property rights ....................35 Trademark ........................35 VEGAVIB 63 • Relay (DPDT)
  • Page 3 Contents Safety instructions for Ex areas: Take note of the Ex specific safety instructions for Ex applications. These instructions are attached as documents to each instrument with Ex approval and are part of the operating instructions. Editing status: 2022-09-15 VEGAVIB 63 • Relay (DPDT)

  • Page 4: About This Document

    Symbols used Document ID This symbol on the front page of this instruction refers to the Docu- ment ID. By entering the Document ID on www.vega.com you will reach the document download. Information, note, tip: This symbol indicates helpful additional infor- mation and tips for successful work.

  • Page 5: For Your Safety

    During work on and with the device, the required personal protective equipment must always be worn. Appropriate use The VEGAVIB 63 is a sensor for point level detection. You can find detailed information about the area of application in chapter " Product description". Operational reliability is ensured only if the instrument is properly used according to the specifications in the operating instructions manual as well as possible supplementary instructions.

  • Page 6: Safety Label On The Instrument

    The corresponding conformity declarations can be found on our homepage. SIL conformity VEGAVIB 63 meets the requirements of functional safety according to IEC 61508. Further information is available in the Safety Manual " VEGAVIB series 60". Installation and operation in the USA and Canada This information is only valid for USA and Canada.

  • Page 7: Product Description

    – Safety Manual " Functional safety (SIL)" (optional) – Supplementary instructions manual " Plug connector for level sensors" (optional) – Ex-specific " Safety instructions" (with Ex versions) – If necessary, further certificates Constituent parts The VEGAVIB 63 consists of the components: • Housing lid • Housing with electronics •...

  • Page 8: Principle Of Operation

    Principle of operation Application area VEGAVIB 63 is a point level sensor with vibrating rod for point level detection. It is designed for industrial use in all areas of process technology and is preferably used for bulk solids.

  • Page 9: Storage And Transport

    Technical data - Ambient conditions" • Relative moisture 20 … 85 % Lifting and carrying With instrument weights of more than 18 kg (39.68 lbs) suitable and approved equipment must be used for lifting and carrying. VEGAVIB 63 • Relay (DPDT)

  • Page 10: Mounting

    Switching point In general, VEGAVIB 63 can be installed in any position. The instru- ment only has to be mounted in such a way that the vibrating element is at the height of the desired switching point.

  • Page 11: Mounting Instructions

    4 Mounting Fig. 2: Measures against moisture ingress Transport Do not hold VEGAVIB 63 on the vibrating element. Especially with flange and tube versions, the sensor can be damaged by the weight of the instrument. Remove the protective cover just before mounting. Pressure/Vacuum The process fitting must be sealed if there is gauge or low pressure in the vessel. Before use, check if the sealing material is resistant against the measured product and the process temperature.
  • Page 12 4 Mounting not use an overly long extension tube for VEGAVIB 63, but check if you can mount a short level switch on the side of the vessel in hori- zontal position. Extreme vibration caused by the process or the equipment, e.g. agita- tors or turbulence in the vessel, e.g. by fluidisation, can cause the...
  • Page 13 The vibrating rod must be mounted in a way that takes the arrange- ment of the filling and emptying apertures into account. To compensate measurement errors caused by the material cone in cylindrical vessels, the sensor must be mounted at a distance of d/6 from the vessel wall. Fig. 4: Filling and emptying centred VEGAVIB 63 • Relay (DPDT)
  • Page 14 Fig. 5: Filling in the centre, emptying laterally VEGAVIB 63 Discharge opening Filling opening Baffle protection against In applications such as grit chambers or settling basins for coarse falling rocks sediments, the vibrating element must be protected against damage with a suitable baffle. This baffle must be manufactured by you. VEGAVIB 63 • Relay (DPDT)
  • Page 15 4 Mounting > 125 mm (> 5") Fig. 6: Baffle for protection against mechanical damage VEGAVIB 63 • Relay (DPDT)

  • Page 16: Connecting To Power Supply

    In hazardous areas, use only approved cable connections for VE- GAVIB 63. Take note of the corresponding installation regulations for Ex applica- Connection cable tions. for Ex applications Cover all housing openings conforming to standard according to EN 60079-1. VEGAVIB 63 • Relay (DPDT)

  • Page 17: Connection Procedure

    10. If necessary, carry out a fresh adjustment 11. Screw the housing lid back on The electrical connection is finished. Wiring plan, single chamber housing The following illustrations apply to the non-Ex as well as to the Ex-d version. VEGAVIB 63 • Relay (DPDT)
  • Page 18 Stainless steel, electropolished (not with Ex d) Filter element for pressure compensation (not with Ex d) Wiring plan We recommend connecting VEGAVIB 63 in such a way that the switching circuit is open when there is a level signal, line break or failure (safe state).
  • Page 19 Inductive loads also result from the connection to a PLC input or output and/or in combination with long cables. It is imperative that you take measures to extinguish sparks to protect the relay contact (e.g. Z diode) or use an electronic version with transistor output. VEGAVIB 63 • Relay (DPDT)

  • Page 20: Setup

    Note: As a rule, always set the mode with mode switch (2) before starting the setup of VEGAVIB 63. The switching output will change if you set the mode switch (2) afterwards. This could possibly trigger other con- nected instruments or devices.

  • Page 21: Function Table

    6 Setup VEGAVIB 63 will be more sensitive and light solids can be detected more reliably. For instruments detecting solids in water, these settings are not ap- plicable. The density range is preset and must not be changed. Mode adjustment (2) With the mode setting (min./max.) you can change the switching...
  • Page 22 6 Setup Level Switching status Control lamp Fault (6) (7) Relay deenergized flashes red VEGAVIB 63 • Relay (DPDT)

  • Page 23: Maintenance And Fault Rectification

    24 hour service hotline Should these measures not be successful, please call in urgent cases the VEGA service hotline under the phone no. +49 1805 858550. The hotline is manned 7 days a week round-the-clock. Since we offer this service worldwide, the support is only available in the English language. The service is free, only standard call charges are incurred.

  • Page 24: Exchanging The Electronics Module

    Proceed as follows: 1. Switch off voltage supply 2. Unscrew the housing lid 3. Lift the opening levers of the terminals with a screwdriver 4. Pull the connection cables out of the terminals 5. Loosen the two screws with a screw driver (Torx size T10 or slot VEGAVIB 63 • Relay (DPDT)

  • Page 25: How To Proceed If A Repair Is Necessary

    How to proceed if a repair is necessary You can find an instrument return form as well as detailed information about the procedure in the download area of our homepage. By doing this you help us carry out the repair quickly and without having to call back for needed information. VEGAVIB 63 • Relay (DPDT)
  • Page 26 Clean the instrument and pack it damage-proof • Attach the completed form and, if need be, also a safety data sheet outside on the packaging • Ask the agency serving you to get the address for the return ship- ment. You can find the agency on our homepage. VEGAVIB 63 • Relay (DPDT)

  • Page 27: Dismount

    If personal data is stored on the old device to be disposed of, delete it before disposal. If you have no way to dispose of the old instrument properly, please contact us concerning return and disposal. VEGAVIB 63 • Relay (DPDT)

  • Page 28: Supplement

    Sensor length (L) 0.18 … 6 m (0.59 … 19.69 ft) Sensor lengths - accuracy ± 2 mm (± 0.079 in) Max. lateral load 140 Nm, max. 400 N (103 lbf ft, max. 90 lbf) VEGAVIB 63 • Relay (DPDT)
  • Page 29 -1 … 16 bar/-100 … 1600 kPa (-14.5 … 232 psig) 16 bar (232 psi) 6 bar (87 psi) -50°C 0°C 50°C 100°C 150°C 200°C 250°C (-58°F) (32°F) (122°F) (212°F) (302°F) (392°F) (482°F) Fig. 12: Process pressure - Process temperature Process temperature Process pressure VEGAVIB 63 • Relay (DPDT)
  • Page 30 Ʋ Max. Max. detection or overflow protection Voltage supply Operating voltage 20 … 253 V AC, 50/60 Hz, 20 … 72 V DC (at U >60 V DC, the ambient temperature can be max. 50 °C/122 °F) 1) Max. 20 mm (0.8 in) with product density < 0.03 g/cm³ (0.0011 lbs/in³). VEGAVIB 63 • Relay (DPDT)

  • Page 31: Dimensions

    For that reason the associated approval documents of these instruments have to be carefully noted. They are part of the delivery or can be downloaded by entering the serial number of your instrument into the search field under www.vega.com as well as in the general download area. Dimensions...
  • Page 32 9 Supplement ø 29 mm (1.14") ø 16 mm (0.63") Fig. 15: VEGAVIB 63, threaded version G1 (DIN ISO 228/1) Sensor length, see chapter " Technical data" VEGAVIB 63 • Relay (DPDT)
  • Page 33 9 Supplement G1½ ø 29 mm (1.14") ø 16 mm (0.63") Fig. 16: VEGAVIB 63, threaded version G1½ (DIN ISO 228/1) Sensor length, see chapter " Technical data" VEGAVIB 63 • Relay (DPDT)
  • Page 34 9 Supplement ø 34 mm (1.34") Fig. 17: Temperature adapter VEGAVIB 63 • Relay (DPDT)

  • Page 35: Industrial Property Rights

    Les lignes de produits VEGA sont globalement protégées par des droits de propriété intellec- tuelle. Pour plus d'informations, on pourra se référer au site www.vega.com. VEGA lineas de productos están protegidas por los derechos en el campo de la propiedad indus- trial. Para mayor información revise la pagina web www.vega.com.
  • Page 36 Notes VEGAVIB 63 • Relay (DPDT)
  • Page 37 Notes VEGAVIB 63 • Relay (DPDT)
  • Page 38 Notes VEGAVIB 63 • Relay (DPDT)
  • Page 39 Notes VEGAVIB 63 • Relay (DPDT)
  • Page 40 Subject to change without prior notice © VEGA Grieshaber KG, Schiltach/Germany 2022 VEGA Grieshaber KG Am Hohenstein 113 Phone +49 7836 50-0 77761 Schiltach E-mail: info.de@vega.com...
