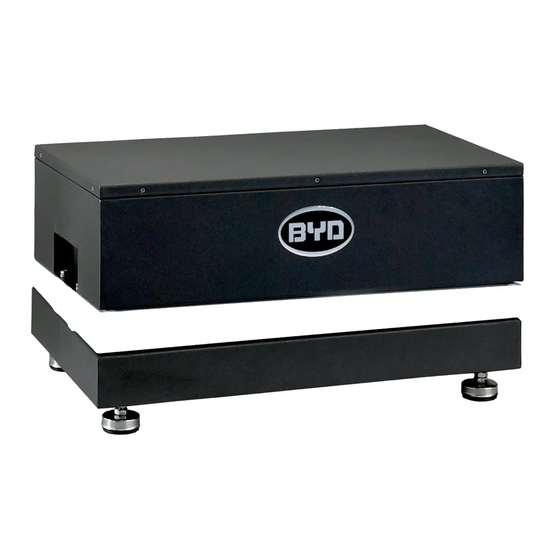

BYD Battery-Box LV Installation Guidance
Hide thumbs
Also See for Battery-Box LV:
- Installation guidance (33 pages) ,
- Quick reference manual (8 pages) ,
- User manual (11 pages)
Related Manuals for BYD Battery-Box LV
Summary of Contents for BYD Battery-Box LV
- Page 1 BYD Battery-Box LV Installation Guidance BYD Battery-Box LV Installation Guidance Battery-Box L 3.5/7.0/10.5/14.0 Version1.0 1 / 36...
-
Page 2: Table Of Contents
BYD Battery-Box LV Installation Guidance Contents 1 SAFETY ....................................6 1.1 DANGER ..................................6 1.2 WARMING ..................................6 1.3 CAUTION ..................................6 1.4 ENVIRONMENTAL AND TRANSPORT REQUIREMENT ..................7 1.5 NOTICE ..................................8 2 INFORMATION .................................. 8 2.1 PRODUCT PROFILE ..............................8 2.2 APPEARANCE DIMENSION ............................ - Page 3 BYD Battery-Box LV Installation Guidance 3.3.4 BATTERY MODULE INSTALLATION ......................15 3.3.5 OPEN THE BCU COVER ............................ 15 3.3.6 POWER CABLES & GROUND CABLE CONNECTION ................16 3.3.7 COMMUNICATION CABLE & WIFI CABLE CONNECTION ..............16 3.3.8 INSTALLATION COMPLETE FOR SINGLE SYSTEM ................... 17 3.3.9 INSTALLATION COMPLETE FOR PARALLEL SYSTEM CONNECTION ..........
- Page 4 6.2.2 UPDATE ................................21 7 COMPATIBLE INVERTER LIST ............................22 8 COMMON ISSUES AND SOLUTIONS ......................... 22 8.1 COMMON ISSUES OF BYD BATTERY-BOX LV AND SOLUTIONS ............22 8.2 EMERGENCY ................................. 23 APPENDIX ....................................24 1. CAN INTERFACE DEFINITION OF BMU & INVERTER ..................24 2.
- Page 5 BYD Battery-Box LV Installation Guidance 2.3.1 CONNECTION WITH VICTRON ........................ 28 2.3.2 MINIMUM CONFIGURATION WITH VICTRON INVERTER..............28 2.3.2.1 MINIMUM CONFIGURATION WITH MULTIPLUS ................28 2.3.2.2 MINIMUM CONFIGURATION WITH MULTIGRID ................29 2.3.2.3 MINIMUM CONFIGURATION WITH QUATTRO ................. 29 2.3.2.4 MINIMUM CONFIGURATION WITH CCGX OF EASYSOLAR ............30 2.4 SUNGROW .................................
-
Page 6: Safety
BYD Battery-Box LV Installation Guidance 1 Safety This section contains safety information that must be observed at all times when working on or with batteries. To prevent personal injury or property damage and to ensure long-term operation of the batteries, read this section carefully and observe all safety information at all times. -
Page 7: Environmental And Transport Requirement
Refrigeration rooms Sanitization and general hosing-down operations The Battery-Box LV system can be installed at altitudes of up to 2000m above Mean Sea Level. The product installation location should be reserved for 0.9m safe passage distance. Due to the heavy weight of Battery-Box L 3.5-14.0, please use strong packaging and safety protection equipment during transportation, to ensure safety and avoid accidental damage. -
Page 8: Notice
This user manual introduces the BYD Battery-Box LV product information, using guidance, safety, common issues and actions. The BYD Battery-Box LV is an energy storage unit that can be used in On-grid system for commercial & residential application. Appearance dimension... -
Page 9: Bcu Introduction
BYD Battery-Box LV Installation Guidance 2.2.1 BCU Introduction The battery management and control part, which contains BCU and charge-discharge relay, and connected to the battery modules underneath and to inverter or BMU above. *①Used in parallel with BCU Definition of BCU Functional Interfaces... -
Page 10: Description Of B-Plus L 3.5 Interface And Terminal
BYD Battery-Box LV Installation Guidance 2.2.2 Description of B-Plus L 3.5 Interface and Terminal The battery module provides energy and sends the information about the cell voltage and cell temperature in the battery module to the upper-layer BCU. 3. Installation Wear appropriate labor protection products before installation. -
Page 11: Personal Protective Equipment
BYD Battery-Box LV Installation Guidance 3.1.2 Personal protective equipment 3.2 Delivery contents Type 3.5KWh 7.0 KWh 10.5 KWh 14.0KWh BCU + Base B-Plus L3.5 User manual QUICK REFERENCE GUIDE Packing of BCU + Base cross screw pylons expansion bolt PG connector... -
Page 12: Installation Steps
BYD Battery-Box LV Installation Guidance 3.3 Installation steps 3.3.1 Unpacking BCU + BASE Battery Module 3.3.2 Level Separate BCU and base Adjust the level of the base 12 / 36... - Page 13 BYD Battery-Box LV Installation Guidance The base is placed against the wall, and the distance between the base and the wall is 27-37mm. 13 / 36...
-
Page 14: Mounting Rack
BYD Battery-Box LV Installation Guidance 3.3.3 Mounting Rack Install the hanger in the middle of the top of the base. The installation location is as shown in the figure. 14 / 36... -
Page 15: Battery Module Installation
BYD Battery-Box LV Installation Guidance 3.3.4 Battery Module Installation 3.3.5 Open the BCU Cover 15 / 36... -
Page 16: Power Cables & Ground Cable Connection
BYD Battery-Box LV Installation Guidance 3.3.6 Power Cables & Ground Cable Connection 3.3.7 Communication Cable & WIFI Cable Connection 16 / 36... -
Page 17: Installation Complete For Single System
BYD Battery-Box LV Installation Guidance 3.3.8 Installation Complete for Single System 3.3.9 Installation Complete For Parallel System Connection 17 / 36... -
Page 18: Wifi Setting
BYD Battery-Box LV Installation Guidance 3.3.10 WIFI Setting 3.3.10.1 Login You can use a computer, mobile phone or IPAD to set up and configure; This number is the same as the S/N on the WIFI nameplate. No password is needed here. -
Page 19: Checking List
BYD Battery-Box LV Installation Guidance 4 Checking list 4.1 Check the Battery-Box Task Check Positive cable Negative cable Ground cable CAN cable WIFI cable Jumper(*Check this in parallel with three sets) Screw(Battery Module; BCU, Positive, Negative and Ground cable) Process the WIFI connection, and the WIFI LED light is... -
Page 20: Run
BYD Battery-Box LV Installation Guidance CAN cable Battery related parameter Settings *The above inspection is only related to battery. For other inspection, please refer to the inverter related manual 5 RUN 5.1 Turn on the Battery-Box system Press the switch with your finger for about one second. -
Page 21: Update The Firmware
WIFI local connection update :(The installer is advised to use this method) b) Update through the upper computer software: (After - sales service providers are advised to use this method) c) BYD remote update: (WIFI needs to be configured successfully) 6.2.2 Update Method 1: WIFI local connection update Steps: Search AP********>Enter IP (10.10.100.254)>Login>Upgrade>Battery-Box. -
Page 22: Compatible Inverter List
After a successful network configuration, BYD can update it remotely if necessary. 7 Compatible Inverter List To make sure that the system can works normally, please use BYD compatible inverter and select battery quantity correctly based on the “Minimum Configuration with Different Brands of Inverters” in Appendix 2 in this user manual. -
Page 23: Emergency
BYD Battery-Box LV Installation Guidance User also can monitor the running status of battery, warning and alarm information from App or LED display of inverter. 8.2 Emergency Please cut off the power supply and turn off the battery in emergency. Contact our after-service provider immediately... -
Page 24: Appendix
BYD Battery-Box LV Installation Guidance Appendix 1. CAN interface definition of BMU & inverter RJ45 PIN define Battery-Box GOODWE VICTRON SUNGROW CAN H CAN L 2. Minimum configuration table and List of matched inverters 2.1 SMA 2.1.1 Connection with SMA... -
Page 25: Minimum Configuration With Sma Sunny Island Inverter
BYD Battery-Box LV Installation Guidance 2.1.2 Minimum configuration with SMA Sunny Island inverter Inverter Firmware version: minimum required firmware version for SI is V1.73. BYD Battery-Box LV firmware version: minimum required firmware version for BCU is V1.0. 1 Phase on Grid（Self consumption） Inverter Type B-Plus L 3.5... -
Page 26: Goodwe
2.2.2 Minimum Configuration with GOODWE Inverter 2.2.2.1 Minimum Configuration with ES Inverter Firmware version: minimum required firmware version for ARM is 03. BYD Battery-Box LV firmware version: minimum required firmware version for BCU is V1.0. 1 Phase on Grid（Self consumption） Inverter Type B-Plus L 3.5... -
Page 27: Minimum Configuration With Em
BYD Battery-Box LV Installation Guidance 2.2.2.2 Minimum Configuration with EM Inverter Firmware version: minimum required firmware version for ARM is 03. BYD Battery-Box LV firmware version: minimum required firmware version for BCU is V1.0. 1 Phase on Grid(Self consumption) Inverter Type B-Plus L 3.5... -
Page 28: Connection With Victron
2.3.2.1 Minimum Configuration with Multiplus Inverter Firmware version: minimum required firmware version for CCGX is V2.01, which applies to ESS mode. BYD Battery-Box LV firmware version: minimum required firmware version for BCU is V1.0, which applies to ESS mode. 1 Phase on Grid(Self consumption) Inverter Type B-Plus L 3.5... -
Page 29: Minimum Configuration With Multigrid
Inverter Firmware version: minimum required firmware version for CCGX is V2.01, which applies to ESS mode. BYD Battery- Box LV firmware version: minimum required firmware version for BCU is V1.0, which applies to ESS mode. 1 Phase on Grid(Self consumption) Inverter Type B-Plus L 3.5... -
Page 30: Minimum Configuration With Ccgx Of Easysolar
2.3.2.4 Minimum Configuration with CCGX of Easysolar Inverter Firmware version: minimum required firmware version for CCGX is V2.01, which applies to ESS mode. BYD Battery-Box LV firmware version: minimum required firmware version for BCU is V1.0, which applies to ESS mode. -
Page 31: 1Connection With Sungrow
2.4.2 Minimum Configuration with SUNGROW 2.4.2.1 Minimum Configuration with SH5K Inverter Firmware version: minimum required firmware version is V13. BYD Battery Box LV firmware version: minimum required firmware version for BCU is V1.0.Identification label on package is V1.0. 1 Phase on Grid(Self consumption) Inverter Type B-Plus L 3.5... -
Page 32: Parameter Settings Of Inverter
BYD Battery-Box LV Installation Guidance 3. Parameter settings of inverter 3.1 SMA Charger Min Capacity(The version of the inverter to which this parameter applies is equal to or greater than 12) Charging the battery usage through system for increased self-consumption without a battery backup grid... -
Page 33: Goodwe Charger Min Capacity
BYD Battery-Box LV Installation Guidance minimum width of deep discharge protection area minimum width of backup power area area width for conserving battery state of charge 3.2 GOODWE Charger Min Capacity When setting parameters on the inverter, please select the battery type correctly. -
Page 34: Inverter Troubleshooting And Maintenance
BYD Battery-Box LV Installation Guidance Battery temperature is too high Battery current is too high Other hardware failures. 4.2 Inverter troubleshooting and maintenance 4.2.1 Alarm Code Displayed On the SRC of SMA Sunny Island and Solution SMA SRC Possible causes... -
Page 35: Alarm Displayed On The App Of Goodwe And The Solution
BYD Battery-Box LV Installation Guidance cable correctly; 4.restart battery; F931(XA12Bms) External Alarm If the red led of the BCU is lit, internal please contact service provider to change the battery. not, check system settings according guidelines. F932(XA13CellBal) External Alarm Cell... - Page 36 Address: U201 15Chatham Road West Ryde NSW 2114 Australia Europe EFT-Systems GmbH Customer Service Mailbox: service@eft-systems.de Telephone: +49 9352 8523999 Website: www.eft-systems.de Storing Renewable Energy Customer Service Mailbox: info@srenergy.co.uk Telephone: +44 (0) 2037695998 Website: www.srenergy.co.uk Copyright © BYD Lithium Battery Company Limited. All rights reserved. 36 / 36...
