2.5.4 SILVER C SD separate supply air and
extract air handling units, sizes 04-08
The individual components are each specified below in a simplified and diagrammatical description.
1
Outdoor air Supply air

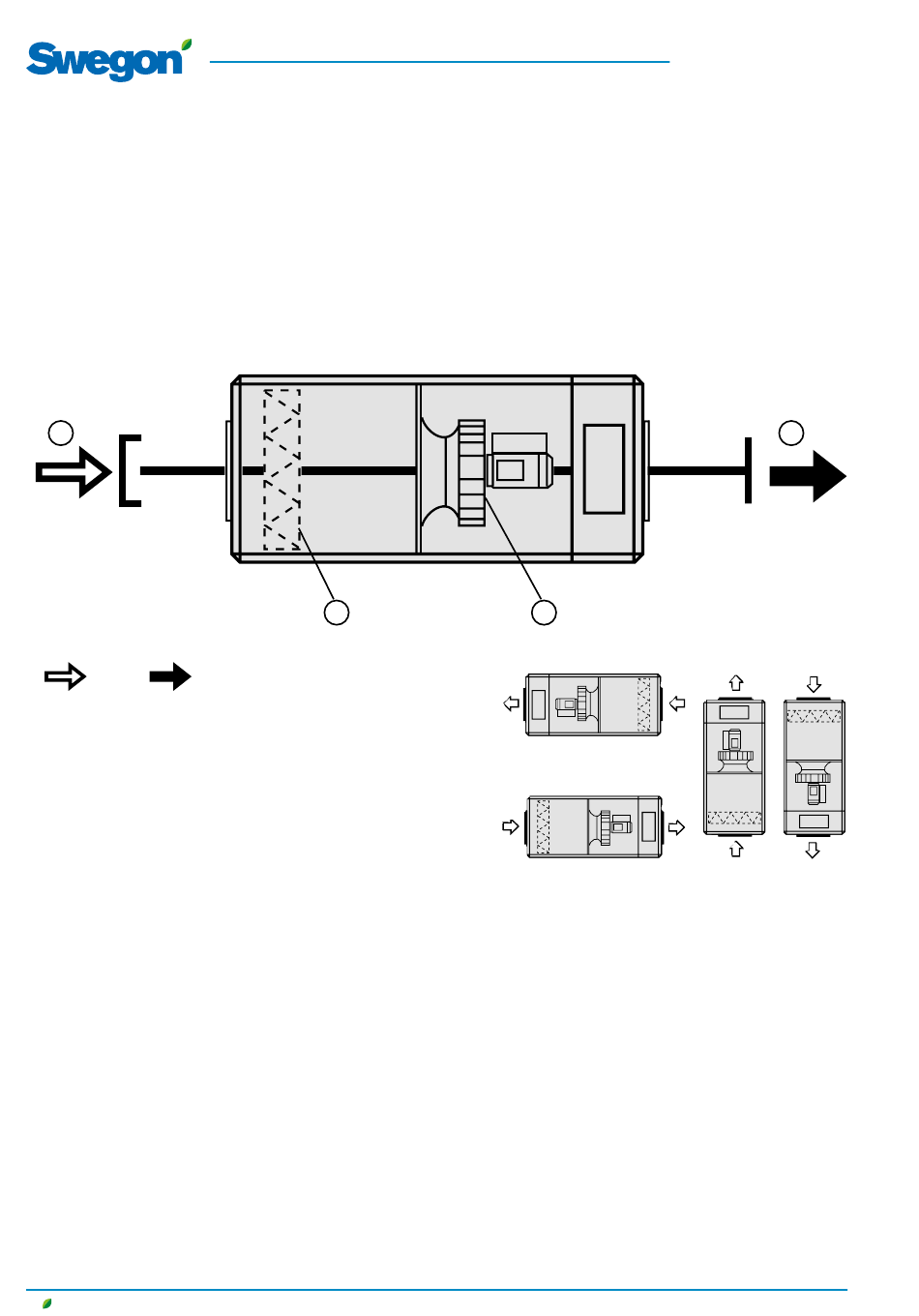

The air handling unit is supplied in the variant as shown in
Fig. 4a. This variant can be positioned in several different
ways as shown in Fig. 4b.
The air handling unit is shown here as a supply air han-
dling unit. If the unit is used as an extract air handling unit,
the components marked with an asterisk change function
and designation (the components are named according to
whether the function is for supply air or extract air).
The arrangement of the components and their desig-
nations
1 OUTDOOR AIR*
(In extract air handling units: Extract air)
2 SUPPLY AIR*
(In extract air handling units: Exhaust air)
3 Supply air fan* with motor and motor control system
(In extract air handling units: Extract air fan with motor and
motor control system)
4 Supply air filter, if applicable*
(In extract air units: Extract air filter)
8 www.swegon.com
Fig. 4a
4
GB.SILVERSK.170901
3
Fig. 4b
