2.5.3 SILVER C CX one-piece air handling units with coil heat exchangers

The individual components are each specified below in a simplified and diagrammatical description.
3
2
1
Right-hand version,
Fan arrangement 1
Outdoor air Supply air

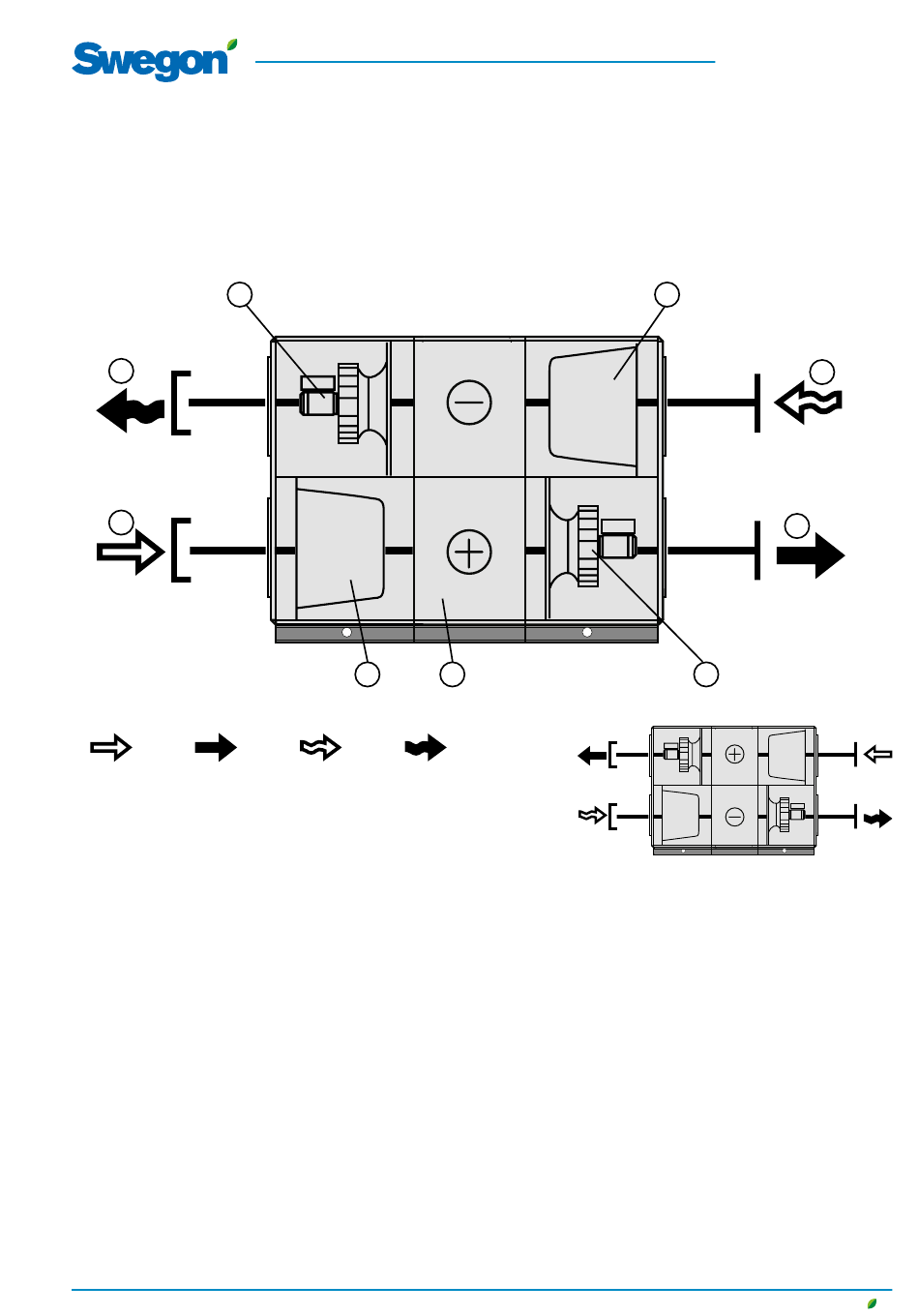

The air handling units can be ordered in the right-hand
version as shown in Fig. 3a or in the left-hand version as
shown in Fig. 3b.
The air handling unit according to Fig. 3a shows Fan
Arrangement1. The unit can also be ordered according to
Fan Arrangement 2. The fans and filters are then vertically
mirror-inverted.
In the left-hand version (Fig. 3b), the components marked
with an asterisk change function and designation (the
components are named according to whether the func-
tion is for supply air or extract air).
The arrangement of the components and their desig-
nations
1 OUTDOOR AIR* (In left-hand version: Extract air)
2 EXHAUST AIR* (In left-hand version: Supply air)
3 Extract air fan* with motor and motor control system
4 Extract air filter*
5 EXTRACT AIR* (In left-hand version: Outdoor air)
6 SUPPLY AIR* (In left-hand version: Exhaust air)
7 Supply air filter*
8 Coil heat exchanger
9 Supply air fan* with motor and motor control system
The pipework package can be supplied in unmounted condition for floor or wall mounting (accessories).
We reserve the right to alter specifications.
Fig. 3a
7
Extract air Exhaust air
8
Figure 3b
GB.SILVERSK.170901
4
5
6
9
Left-hand version
Fan arrangement 1
